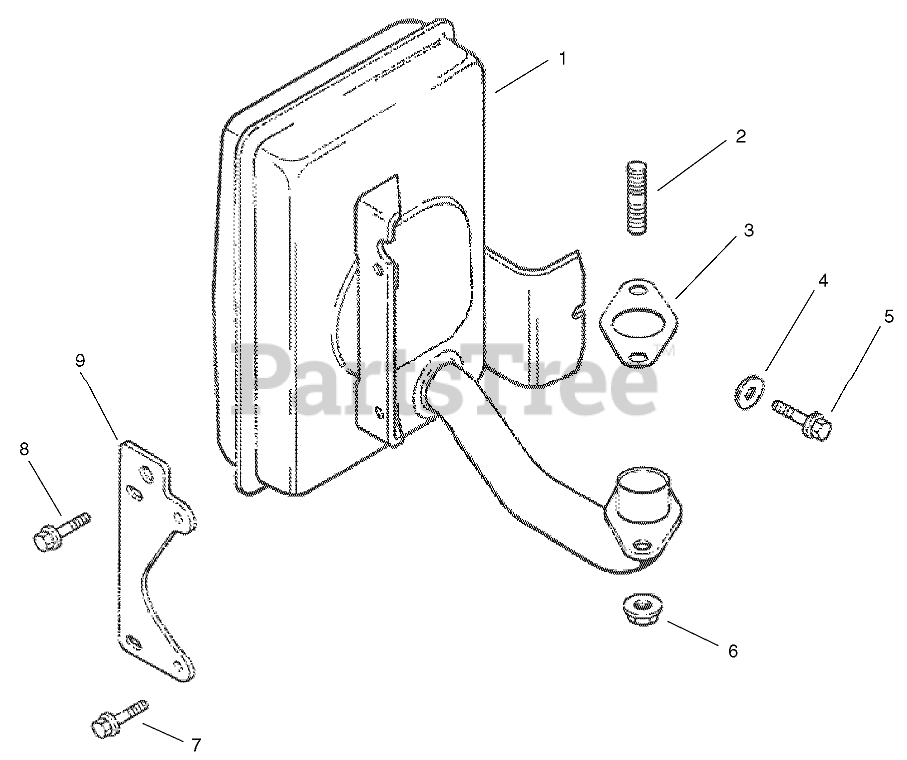

74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) EXHAUST ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Kohler 12 068 55-S

Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$311.99

$

Usually ships in 2-5 days

0

2

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 20+

0

3

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, only 2 left!

0

4

Kohler X-25-78-S

Washer-Plain (1/4in)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

5

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

6

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

7

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 20+

0

8

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 12

0

9

Kohler 12 126 71-S

Bracket-Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 755 70-S

Kit, muffler guard (Includes Screw (4) M-545010-S)
(Superseded to 12 755 107-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$99.99

$

In Stock, only 1 left!

0

Kohler 12 755 70-S

Kit, muffler guard (Includes Screw (4) M-545010-S)
(Superseded to 12 755 107-S)

Note: Not illustrated

$99.99

$

In Stock, only 1 left!

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Not illustrated

$4.49

$

In Stock, Qty 13

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 13

0

Kohler 12 522 51

Short Block
(Superseded to 12 522 55)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 522 51

Short Block
(Superseded to 12 522 55)

Note: Not illustrated

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Not illustrated

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
