74702 (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 240000200 - 240999999) (2004) Fuel System Assembly Kohler Cv492s-27525 Parts Diagram

52" TimeCutter Zero-Turn Mower

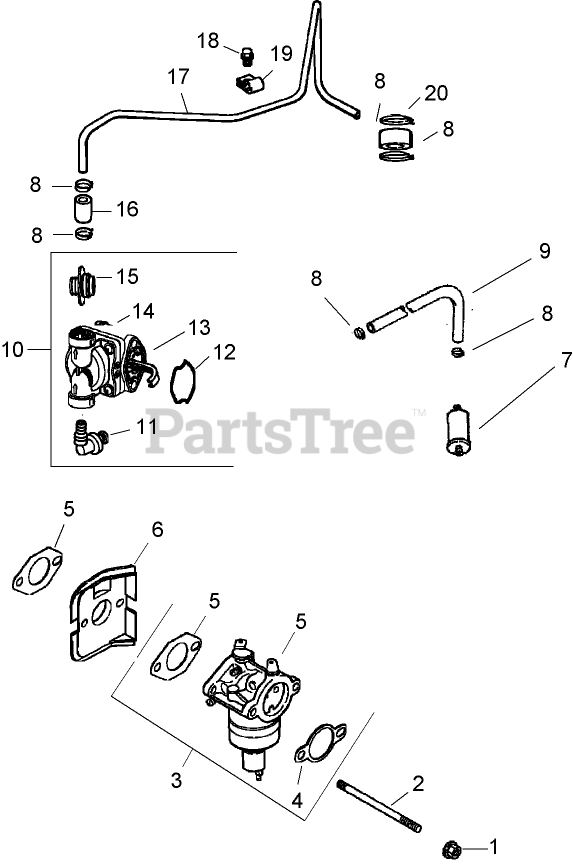

Fuel System Assembly Kohler Cv492s-27525 Parts Diagram

  • Title

1

Toro M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro M-629116-S

Stud (M6x1.0x116)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 12 853 117-S

Kit, carburetor w/gaskets (Includes 4, 5, 6 qty. 1, Tie 12 454 03-S and Terminal25 452 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Loose Parts Package

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Toro 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 12 265 06-S

Deflector-Heat

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 12 294 13-S

Fitting-90 DEG

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 25 237 14-S

CLAMP-HOSE, SPRING (1/2)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 25 353 14-S

Line-Fuel, 7 Inch

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 25 050 07-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 12 559 02-S

Kit, fuel pump (Includes 13-15)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro M-645020-S

SCREW-HHFTF (M6X1.0X20)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 25 041 10-S

Gasket, fuel pump

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro 25 153 04-S

O-Ring (Fuel Pump)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 25 294 09-S

Connector-Hose, Straight

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

16

Toro 12 353 01-S

Line-Fuel (1-1/4in)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

17

Toro 12 123 19-S

Line-Fuel. Metal

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

18

Toro M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

19

Toro 12 154 01-S

CLAMP-INSULATED

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

20

Toro 41 353 18-S

Line-Fuel (2-1/2in)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
