74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) AIR CLEANER ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

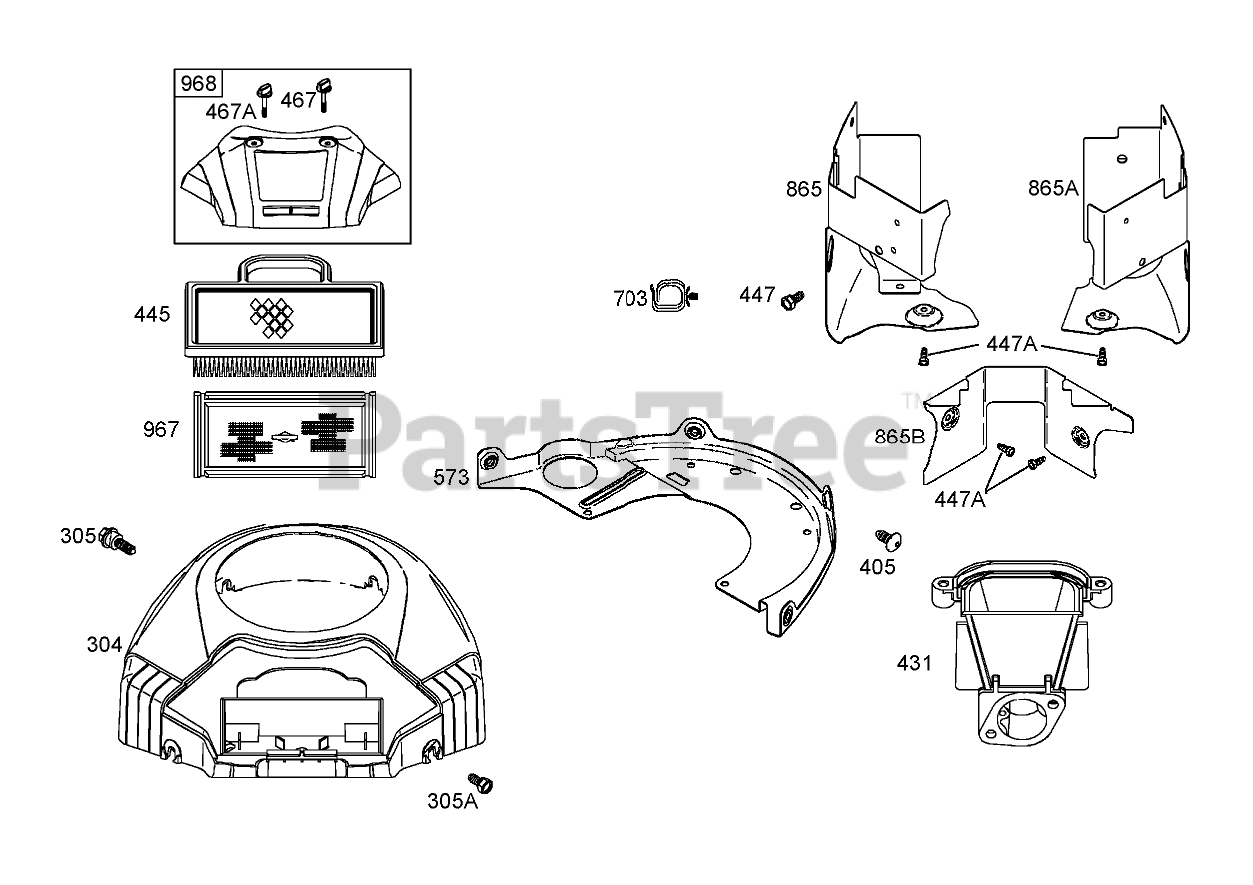

AIR CLEANER ASSEMBLY Parts Diagram

  • Title

304

Briggs & Stratton 790688

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$202.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

Screw (Blower Housing)
(Superseded to 594618)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 790690

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 697820

Screw (Back Plate)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

431

Briggs & Stratton 790628

Elbow-Cleaner, Air
(Superseded to 798861)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

445

Briggs & Stratton 499486

Filter-Cartridge, Air Cleaner
(Superseded to 499486S)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, Qty 20+

0

447

Briggs & Stratton 691003

Screw (Air Guide Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

447A

Briggs & Stratton 691108

Screw (Air Guide Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

467

Briggs & Stratton 691008

Knob-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 5

0

467A

Briggs & Stratton 790697

Knob-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 691009

Plate-Back
(Superseded to 594902)

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

Usually ships in 2-12 days

0

703

Briggs & Stratton 691010

Clip

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 691012

Cover-Guide, Air
(Superseded to 796852)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 691014

Cover-Guide, Air (Cylinder 2)
(Superseded to 591666)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

Usually ships in 2-12 days

0

865B

Briggs & Stratton 691015

Cover-Guide, Air (Valley)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 273638

Filter-Pre Cleaner
(Superseded to 273638S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 790096

Cover?Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
