74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CRANKCASE ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

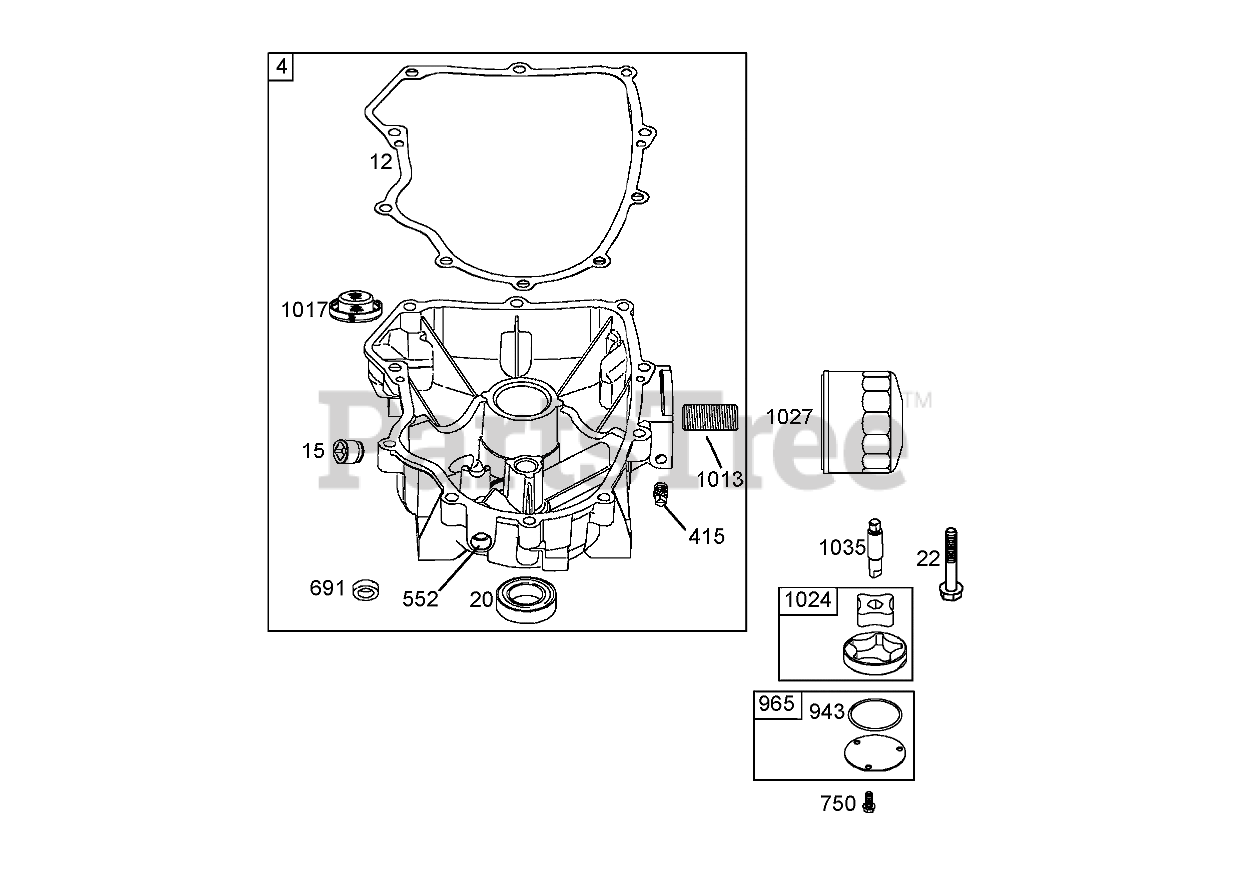

CRANKCASE ASSEMBLY Parts Diagram

  • Title

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 19

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 17

0

20

Briggs & Stratton 690947

Seal-Oil (PTO Side)
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

Screw (Engine Sump)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 690283

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 10

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 5

0

750

Briggs & Stratton 696999

Screw (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

943

Briggs & Stratton 690589

Seal?O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 11

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 690954

Nipple-Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 9

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 691042

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 2 left!

0
