74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CRANKSHAFT ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

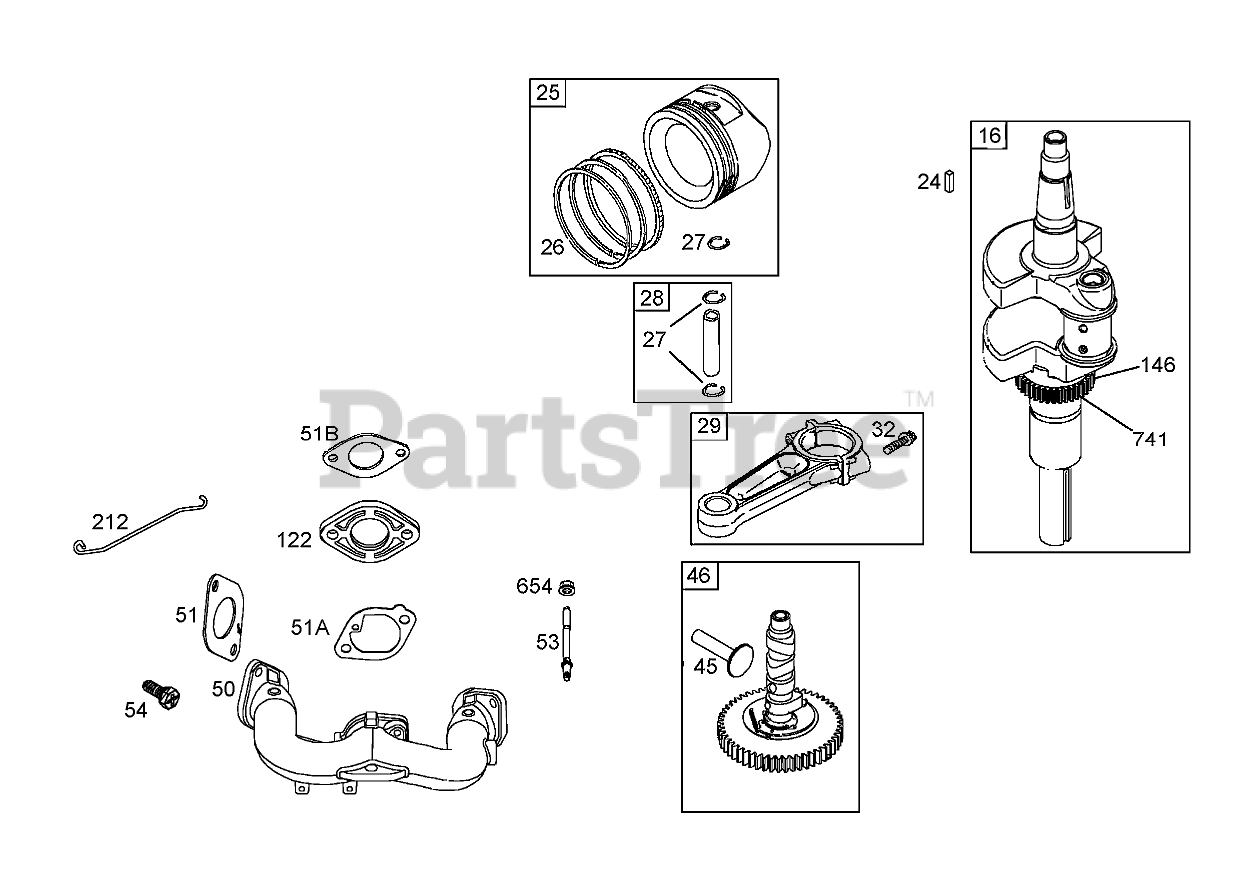

CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

Note: Obtain parts from www.briggsandstratton.com

$385.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499588

Piston ASM (Standard)
(Superseded to 793647)

Note: Obtain parts from www.briggsandstratton.com

$137.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 499590

Piston ASM (.020in Oversize)
(Superseded to 793648)

Note: Obtain parts from www.briggsandstratton.com

$159.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499604

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$69.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 499606

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 690229

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 690976

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 790562

Camshaft
(Superseded to 797242)

Note: Obtain parts from www.briggsandstratton.com

$122.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 699801

Manifold-Intake

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 5

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

53

Briggs & Stratton 690951

Stud (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 3 left!

0

54

Briggs & Stratton 699816

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 699802

Spacer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

212

Briggs & Stratton 695238

Link?Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

654

Briggs & Stratton 690958

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

741

Briggs & Stratton 690980

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0
