74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CYLINDER ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

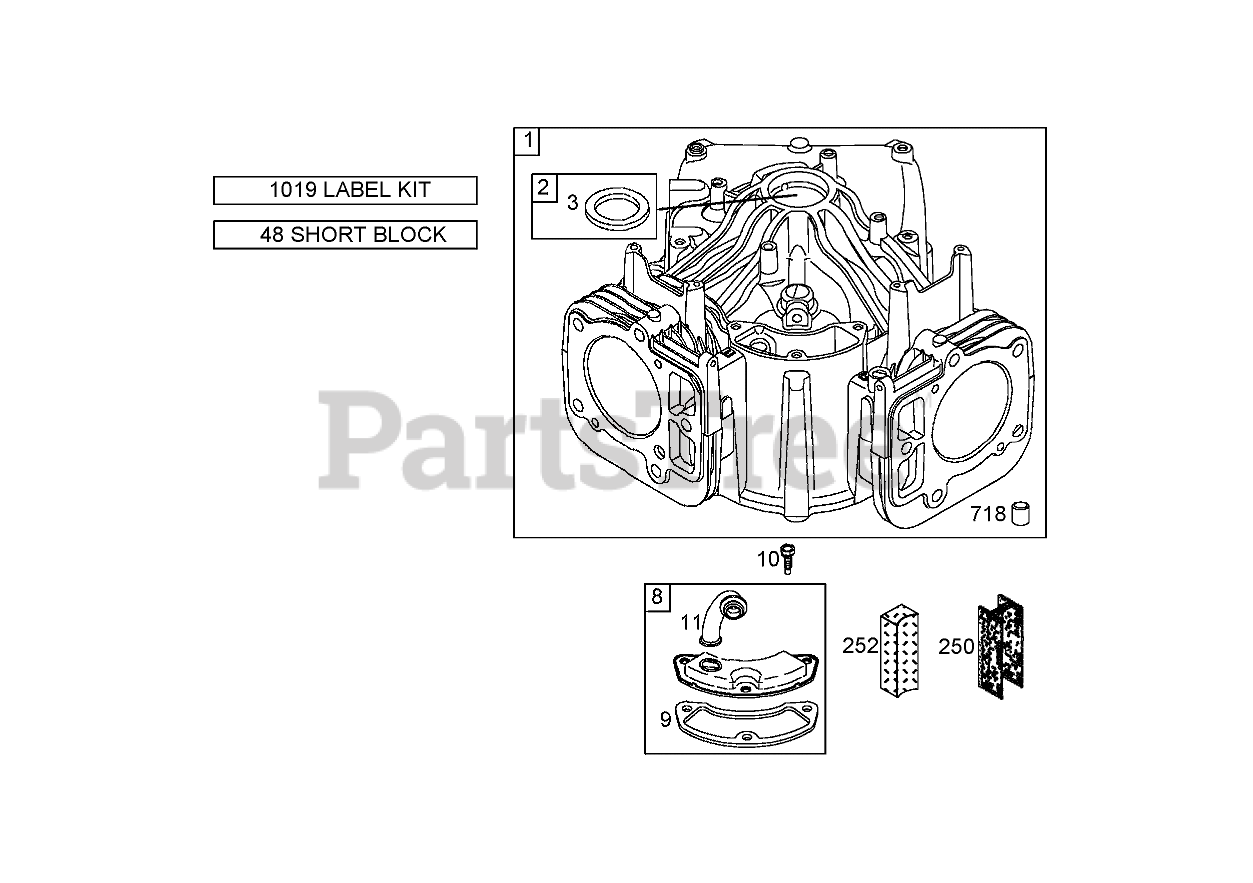

CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Briggs & Stratton 699751

Cylinder ASM
(Superseded to 594969)

Note: Obtain parts from www.briggsandstratton.com

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 499585

Bushing/Seal Kit (Magneto Side)
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086

Seal-Oil (Magneto Side)
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 499601

Breather ASM
(Superseded to 792185)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 3 left!

0

10

Briggs & Stratton 691108

Screw (Breather ASM)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 690942

Tube-Breather
(Superseded to 792184)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 2 left!

0

48

Toro 692714

Short Block

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

250

Briggs & Stratton 690957

Retainer-Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 690956

Collector-Oil
(Superseded to 794389)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 790094

Label Kit

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0
