74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) DECK HEIGHT CONTROL ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

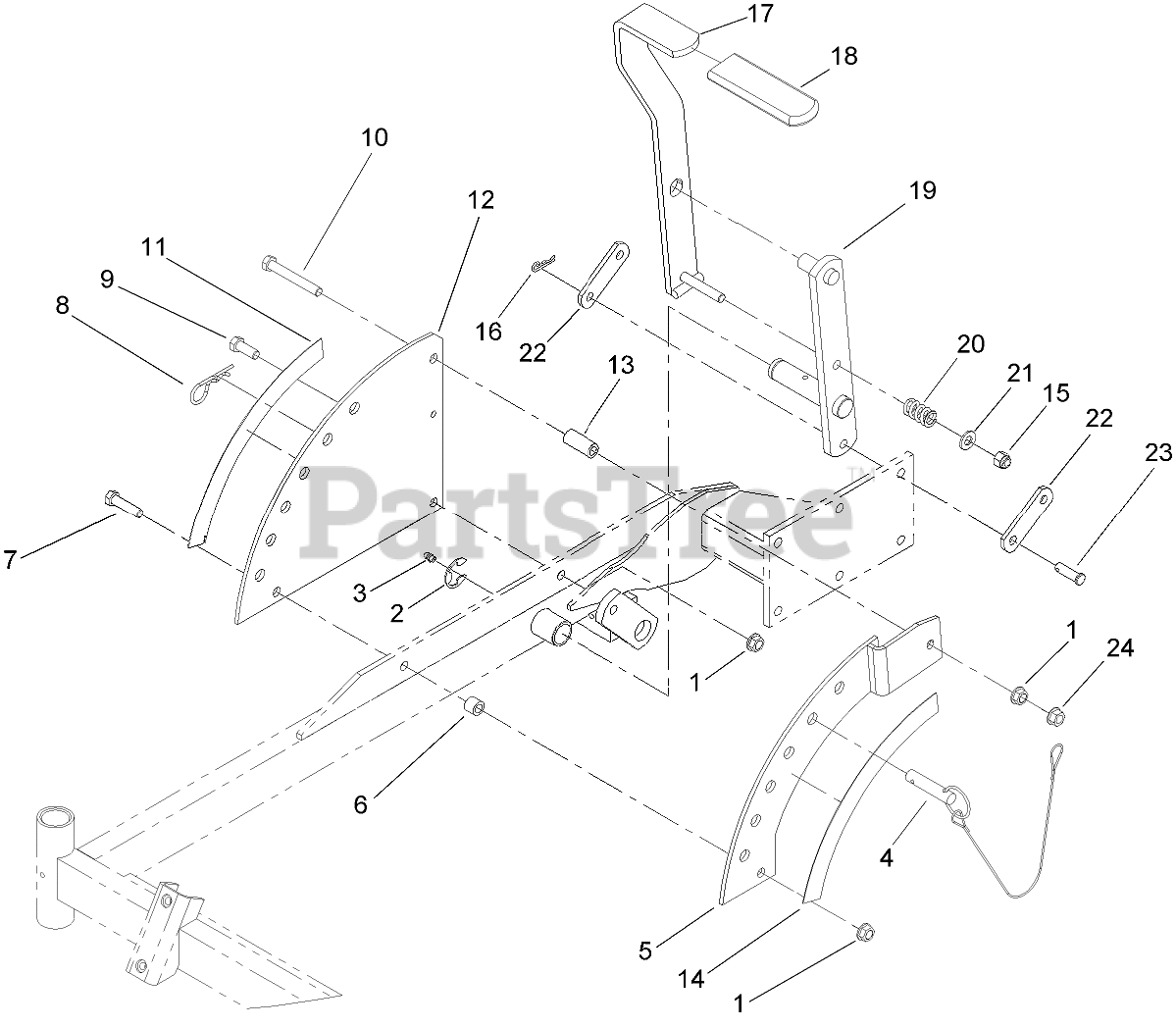

DECK HEIGHT CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 15

0

4

Toro 104-3678

PIN-HITCH

$61.99

$

Usually ships in 3-6 days

0

5

Toro 100-7335-01

PLATE-LIFT

$

$

Not available

6

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, Qty 13

0

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

11

Toro 104-3641

DECAL-DECK HEIGHT, OUTER

$

$

Not available

12

Toro 100-7384-01

PLATE-DECK LIFT

$

$

Not available

13

Toro 1-633082

BUSHING-LEVER, LIFT

$11.99

$

In Stock, only 1 left!

0

14

Toro 104-8032

DECAL-DECK HEIGHT, INNER

$

$

Not available

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-652023-03

LEVER-LIFT
(Superseded to 103-2081)

$

$

Not available

18

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, Qty 20+

0

19

Toro 1-652027-03

ARM-DECK, LIFT

$

$

Not available

20

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 1-633068

ARM-LIFT, DECK

$11.99

$

In Stock, only 1 left!

0

23

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

24

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0
