74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) ENGINE ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

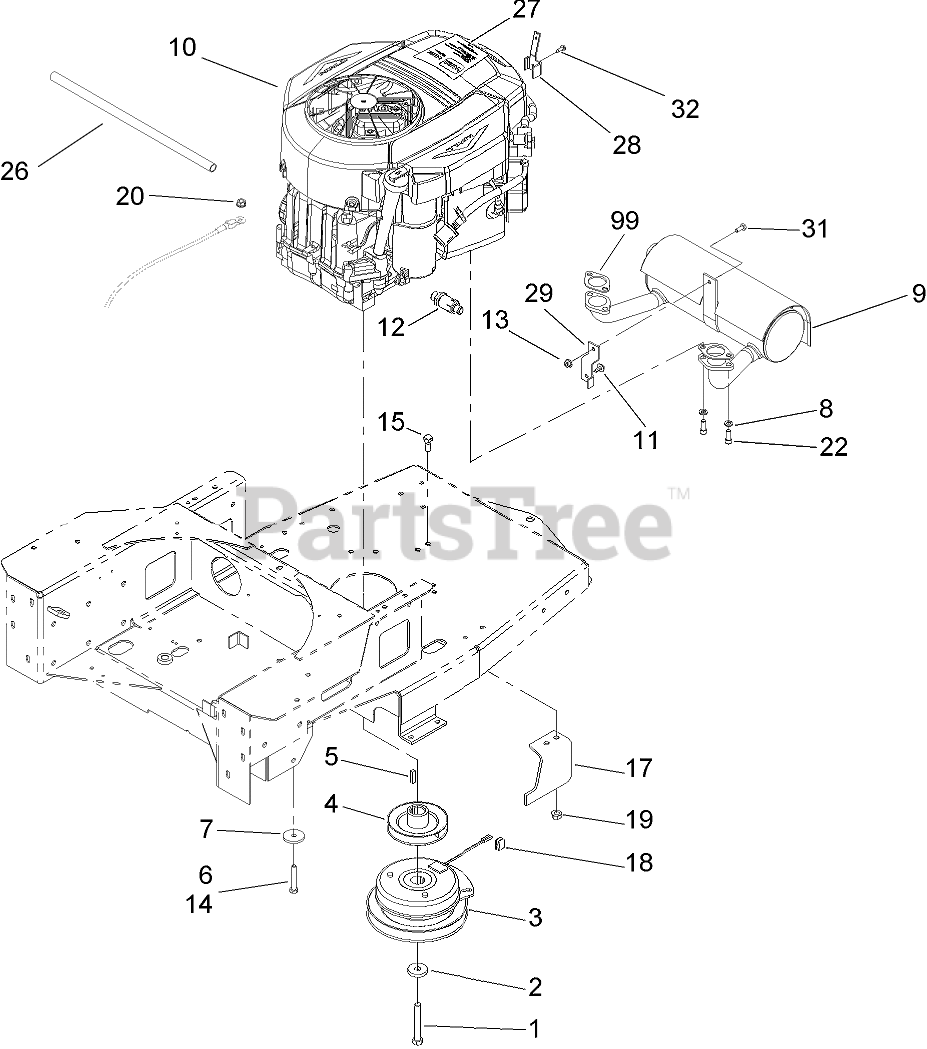

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, Qty 9

0

2

Toro 112843

WASHER

$3.49

$

In Stock, Qty 18

0

3

Toro 108-9511

CLUTCH-PTO, ELECTRIC

$1307.99

$

Usually ships in 3-6 days

0

4

Toro 100-7314

PUMP DRIVE PULLEY ASM

$192.99

$

Usually ships in 3-6 days

0

5

Toro 5-7280

KEY

$5.49

$

In Stock, only 2 left!

0

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 62-7190

SPACER-STEEL

$4.99

$

Usually ships in 3-6 days

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 107-9105

MUFFLER

$726.99

$

Usually ships in 3-6 days

0

10

ENGINE-BRIGGS AND STRATTON, 406577-0191E1

Note: Not serviced separately

$

$

Not available

10

ENGINE-BRIGGS AND STRATTON, 406577-0191E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

11

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

12

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, Qty 5

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

17

Toro 104-3613-03

STOP-CLUTCH

$

$

Not available

18

Toro 98-5023

BUMPER

$6.99

$

Usually ships in 3-6 days

0

19

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

22

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 20+

0

26

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, Qty 7

0

27

Toro 108-8524

DECAL-ENGINE

$

$

Not available

28

Toro 107-9106

BRACKET-CABLE, THROTTLE

$

$

Not available

29

Toro 107-9114-03

BRACKET MUFFLER

$

$

Not available

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 8

0

32

Toro 32144-19

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

99

Toro 104-3226

GASKET-EXHAUST

$10.99

$

In Stock, Qty 12

0
