74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) FLYWHEEL ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

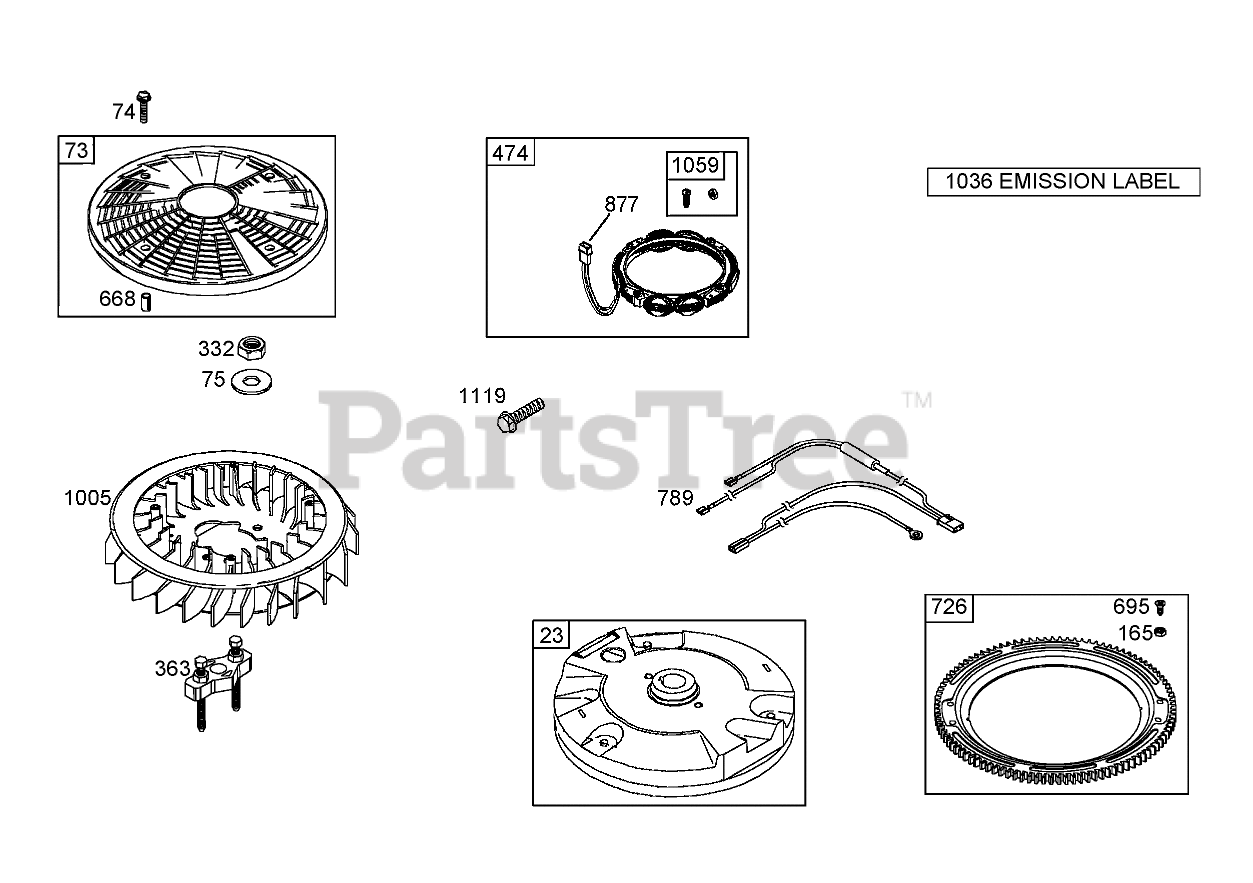

FLYWHEEL ASSEMBLY Parts Diagram

  • Title

23

Briggs & Stratton 691053

Flywheel
(Superseded to 84004658)

Note: Obtain parts from www.briggsandstratton.com

$255.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 691055

Screen-Rotating
(Superseded to 494439)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 698425

Screw (Rotating Screen)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 4 left!

0

75

Briggs & Stratton 691056

Washer (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

165

Briggs & Stratton 693148

Nut (Ring Gear)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 691059

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: Obtain parts from www.briggsandstratton.com

$101.99

$

In Stock, Qty 7

0

668

Briggs & Stratton 691215

Spacer

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

695

Briggs & Stratton 693149

Screw (Ring Gear)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

726

Briggs & Stratton 499612

Gear-Ring

Note: Obtain parts from www.briggsandstratton.com

$71.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 691220

Harness-Wiring

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, only 2 left!

0

877

Briggs & Stratton 399916

Connector-Wire, Alternator

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 790698

Fan-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 790626

Label?Emission

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 691183

Screw (Alternator)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0
