74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) HEAD ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

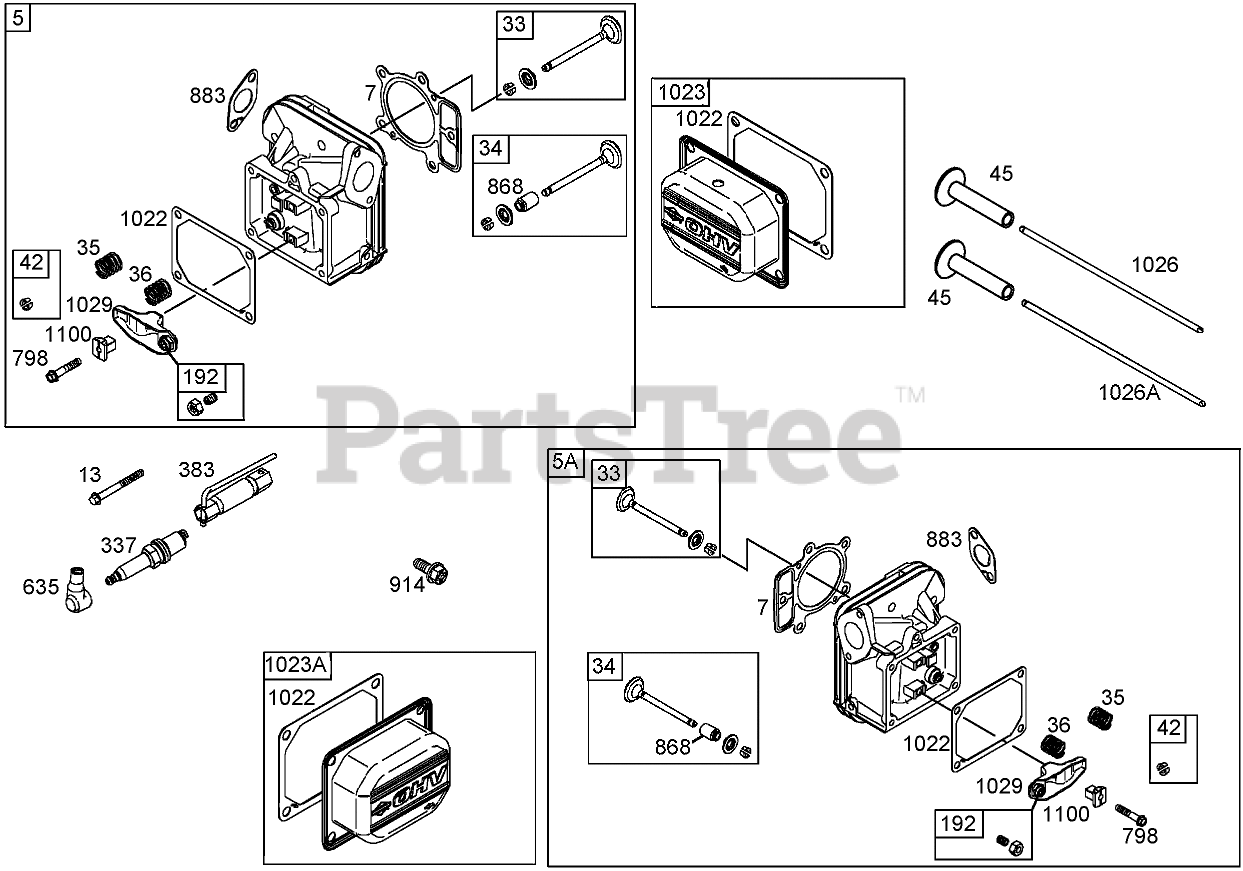

HEAD ASSEMBLY Parts Diagram

  • Title

5

Briggs & Stratton 693998

Head?Cylinder (Cylinder 1)
(Superseded to 796231)

Note: Obtain parts from www.briggsandstratton.com

$235.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 693999

Head?Cylinder (Cylinder 2)
(Superseded to 796232)

Note: Obtain parts from www.briggsandstratton.com

$202.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 690962

Gasket-Head, Cylinder
(Superseded to 693997)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 791130

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

33

Briggs & Stratton 499596

Valve-Exhaust
(Superseded to 697576)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 697464

Valve-Intake
(Superseded to 792200)

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

In Stock, Qty 7

0

35

Briggs & Stratton 690963

Spring-Valve (Intake)
(Superseded to 694865)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 690963

Spring-Valve (Exhaust)
(Superseded to 694865)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 499586

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 690083

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 2 left!

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 4 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 15

0

798

Briggs & Stratton 697890

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691127

Screw (Rocker Cover)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 499599

Cover-Rocker (Cylinder 1)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1023A

Briggs & Stratton 499600

Cover-Rocker (Cylinder 2)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 690981

Rod-Push (Steel)
(Superseded to 597785)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

Rod-Push (Aluminum)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 690973

Pivot-Arm, Rocker
(Superseded to 791959)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0
