74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) STARTER ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

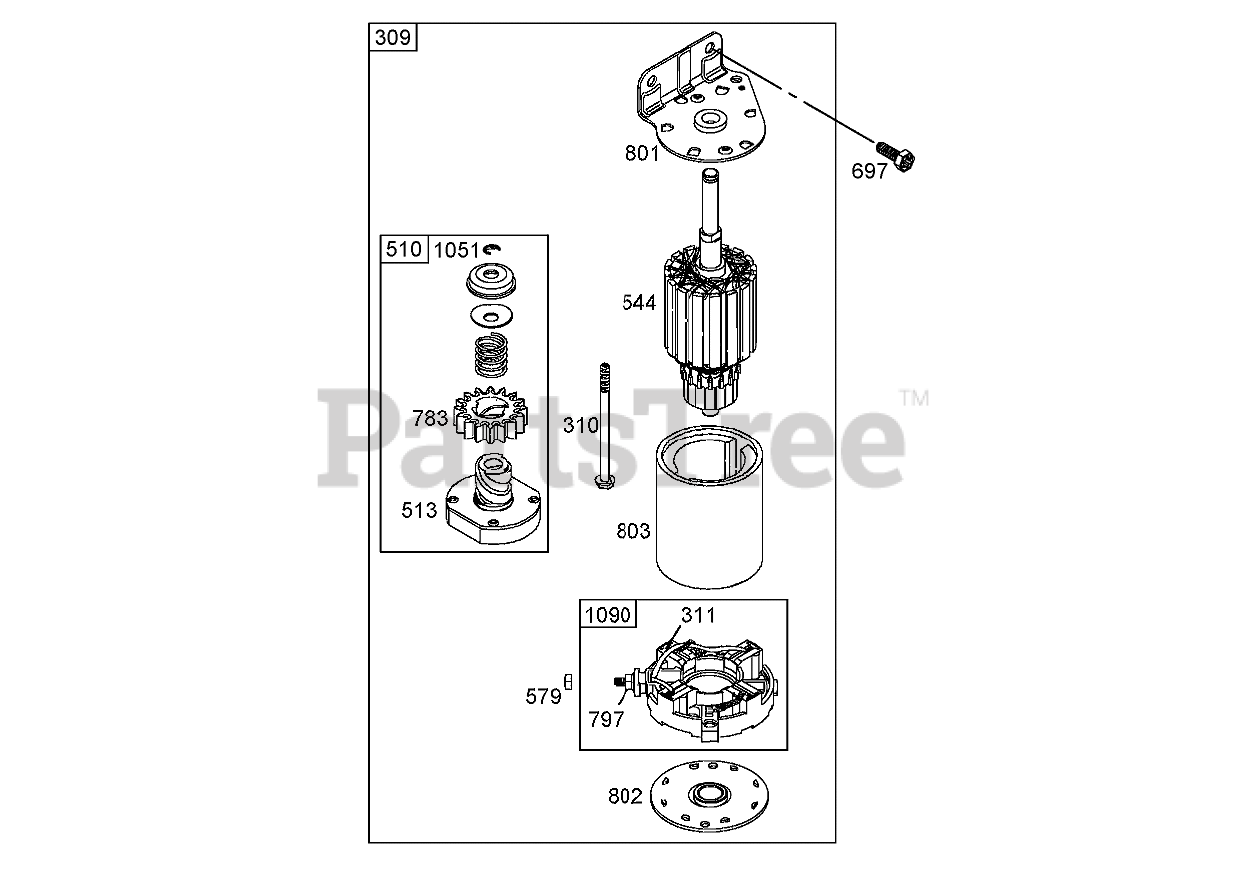

STARTER ASSEMBLY Parts Diagram

  • Title

309

Briggs & Stratton 497401

Motor?Starter
(Superseded to 795121)

Note: Obtain parts from www.briggsandstratton.com

$143.99

$

In Stock, Qty 17

0

310

Briggs & Stratton 691263

Bolt (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 4 left!

0

510

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

In Stock, only 1 left!

0

513

Briggs & Stratton 692024

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

544

Armature?Starter (Service with 497401 Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

579

Briggs & Stratton 691029

Nut (Starter Cable)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw (Starter Motor)
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

783

Briggs & Stratton 693058

Gear-Pinion
(Superseded to 695708)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

797

Briggs & Stratton 693167

Nut (Brush Retainer)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

803

Housing?Starter (Service with 497401 Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 6

0

1090

Briggs & Stratton 691293

Retainer-Brush

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 6

0
