74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) VALVE & ENGINE GASKET SET ASSEMBLIES Parts Diagram

48" TimeCutter Zero-Turn Mower

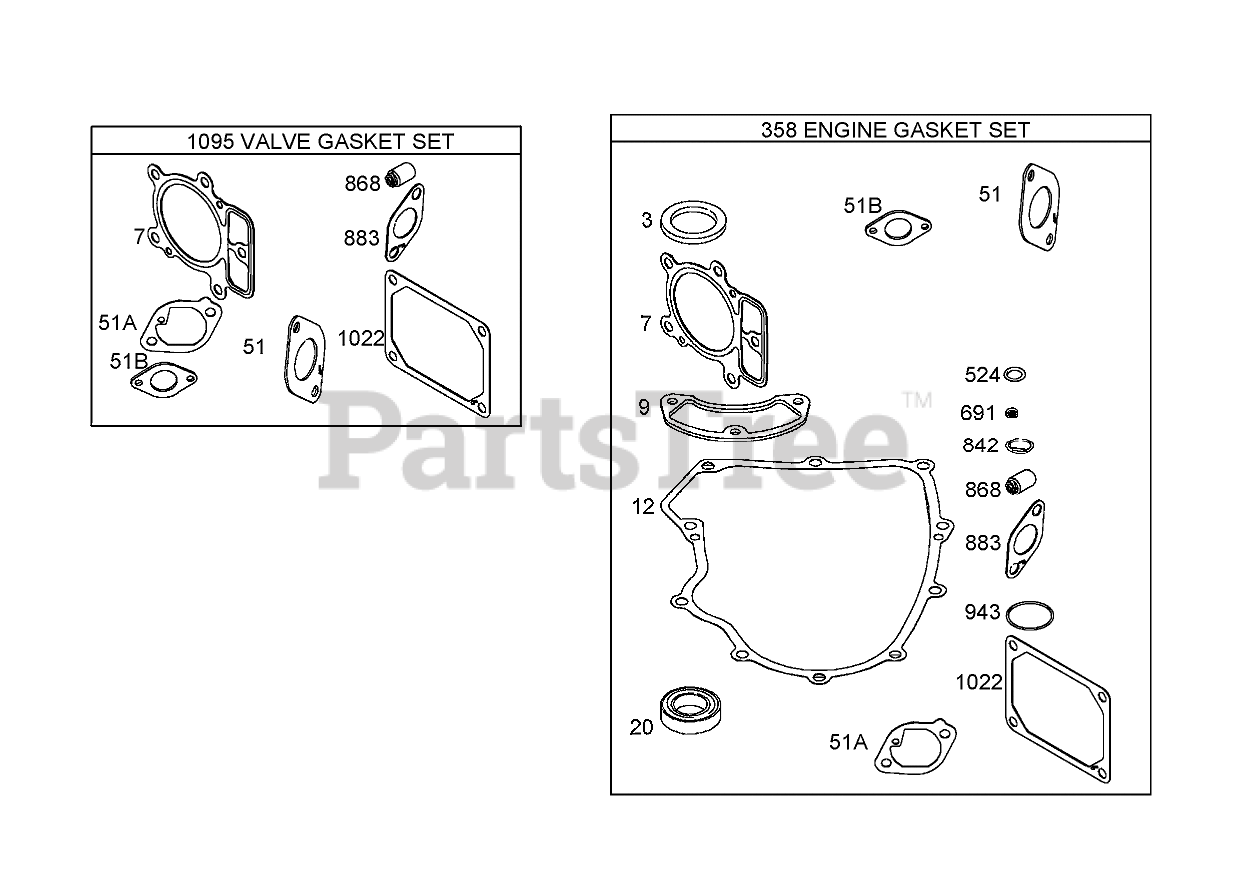

VALVE & ENGINE GASKET SET ASSEMBLIES Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil (Magneto Side)
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 690962

Gasket-Head, Cylinder
(Superseded to 693997)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 19

0

20

Briggs & Stratton 690947

Seal-Oil (PTO Side)
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 690949

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 699800

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 5

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

358

Briggs & Stratton 699823

Engine Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$100.99

$

In Stock, Qty 5

0

524

Briggs & Stratton 691032

Seal (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 5

0

842

Briggs & Stratton 691031

Seal-O Ring (Dipstick)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 10

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 14

0

943

Briggs & Stratton 690589

Seal?O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 11

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 699822

Valve Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, only 1 left!

0
