74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) Starter Assembly Briggs and Stratton 441577-0122-E1 Parts Diagram

48" TimeCutter Zero-Turn Mower

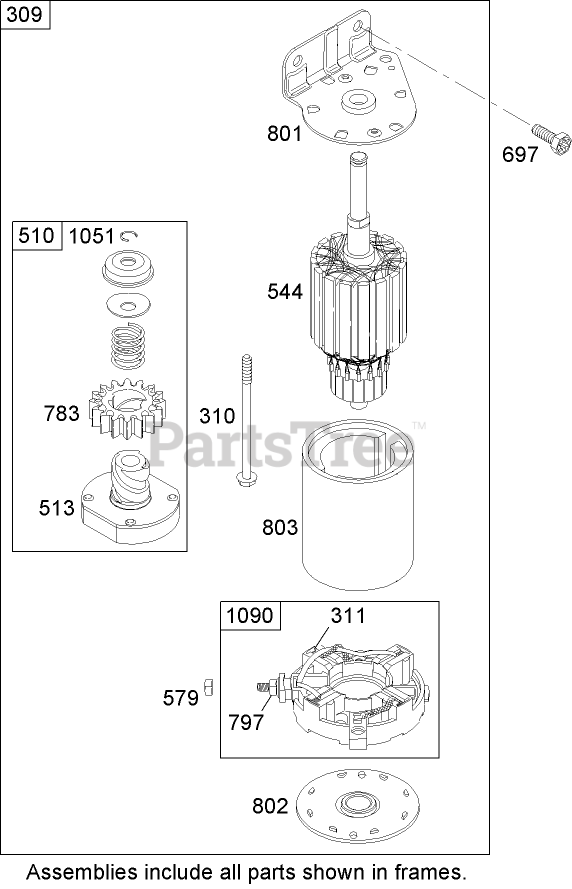

Starter Assembly Briggs and Stratton 441577-0122-E1 Parts Diagram

  • Title

309

Toro 499521

Motor-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

310

Toro 691263

Bolt

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

311

Toro 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

510

Toro 696541

Drive-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

513

Toro 692024

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

544

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

579

Toro 691029

Nut

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

697

Toro 690372

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

783

Toro 695708

Gear-Pinion

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

797

Toro 693167

Nut

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

801

Toro 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

802

Toro 691286

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

803

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1051

Toro 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1090

Toro 691293

Retainer-Brush

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
