74710 (SS 3225) - Toro 32" TimeCutter Zero-Turn Mower (SN: 315000875 - 315999999) (2015) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

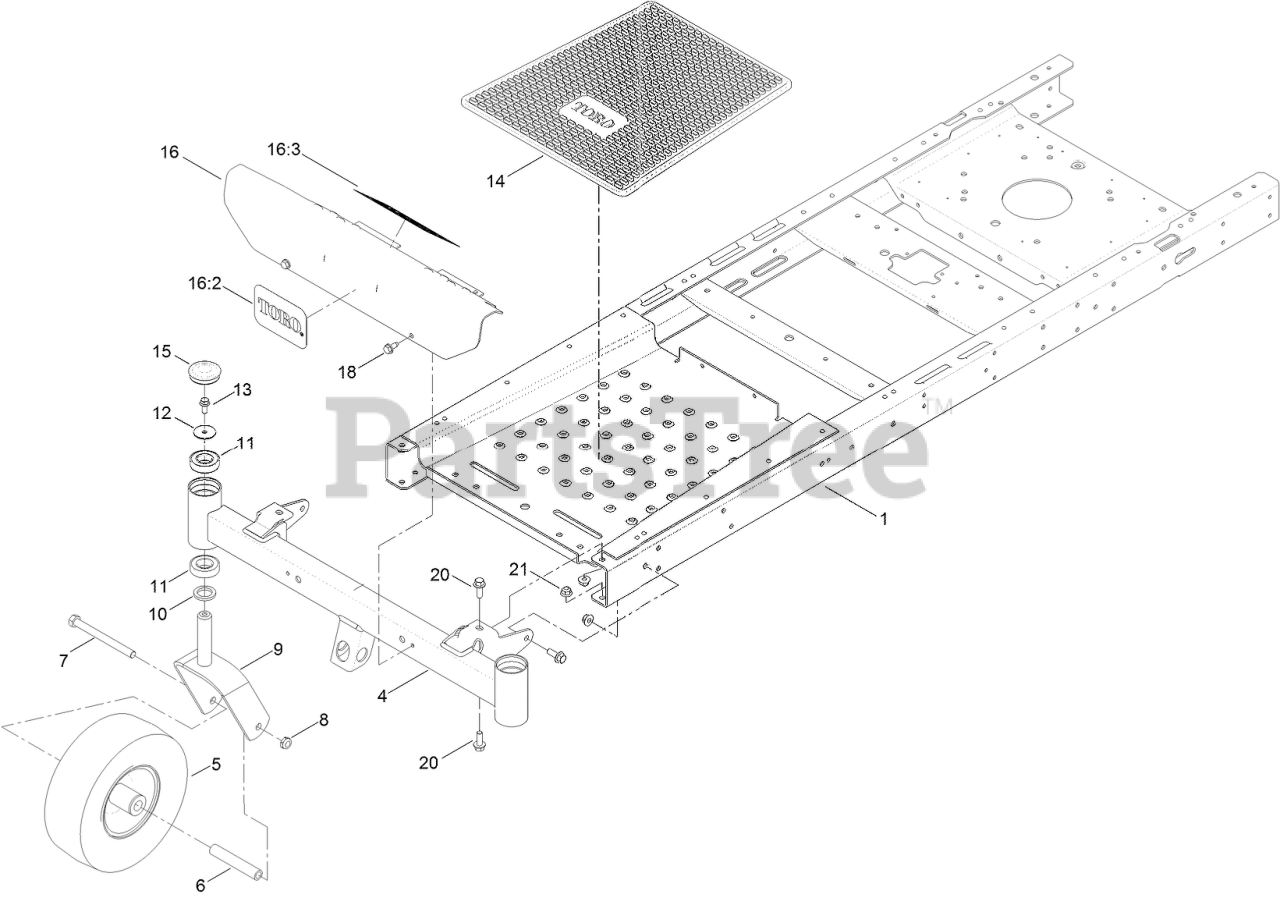

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 127-3444-01

FRAME ASM

$548.99

$

Usually ships in 3-6 days

0

4

Toro 125-1742-01

AXLE-FRONT, NARROW

$353.99

$

Usually ships in 3-6 days

0

5

Toro 130-0736

Caster Wheel ASM

$93.99

$

In Stock, only 1 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$20.99

$

In Stock, Qty 5

0

7

Toro 325-22

SCREW-HH

$8.99

$

In Stock, Qty 10

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 120-7964-01

CASTER FORK ASM

$77.99

$

In Stock, Qty 5

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 7

0

12

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, only 4 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

14

Toro 120-5455

MAT-FLOOR
(Superseded to 132-6895)

$116.99

$

Usually ships in 3-6 days

0

15

Toro 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 10

0

16

Toro 125-0072

FOOTREST ASM
(Superseded to 132-0890)

$237.99

$

Usually ships in 3-6 days

0

16:2

Toro 105-8278

DECAL

$12.99

$

Usually ships in 3-6 days

0

16:3

Toro 120-2239

DECAL-DANGER
(Superseded to 132-0869)

$11.99

$

In Stock, only 1 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

20

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
