74731 (SS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 402334375 - 999999999) Frame Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

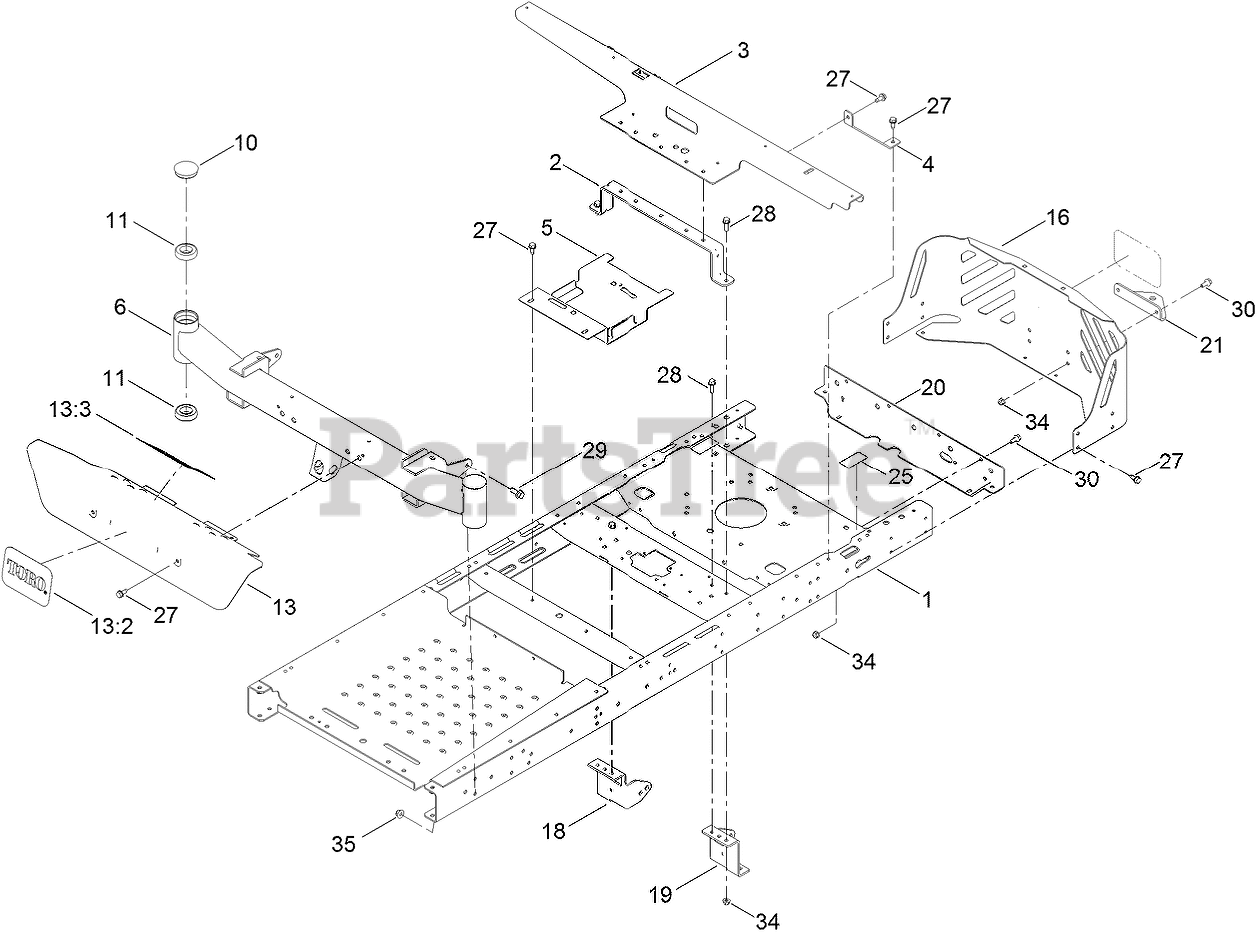

Frame Assembly Parts Diagram

  • Title

1

Toro 135-0508-01

RIVETED FRAME ASM (WIDE LEVER)

$498.99

$

Usually ships in 3-6 days

0

2

Toro 135-0687-03

BRACE-SEAT, REAR (WIDE)

$21.99

$

Usually ships in 3-6 days

0

3

Toro 131-1039-03

SUPPORT-POD, WIDE

$132.99

$

Usually ships in 3-6 days

0

4

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

5

Toro 135-0507-03

BRACKET-BATTERY

$301.99

$

Usually ships in 3-6 days

0

6

Toro 137-7029-01

AXLE-WIDE

$380.99

$

Usually ships in 3-6 days

0

10

Toro 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 10

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 7

0

13

Toro 132-0892

FOOTREST ASM

$237.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-4693

DECAL

$26.99

$

Usually ships in 3-6 days

0

13:3

Toro 132-0869

DECAL-DANGER

$11.99

$

In Stock, only 1 left!

0

16

Toro 130-0701-03

GUARD-ENGINE, WIDE

$147.99

$

Usually ships in 3-6 days

0

18

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$17.99

$

Usually ships in 3-6 days

0

19

Toro 137-7021-01

MOUNT-HYDRO, FRONT (LEFT)
(Superseded to 139-3211-01)

$16.99

$

In Stock, only 3 left!

0

20

Toro 130-6946-01

CROSSMEMBER-REAR, WIDE

$46.99

$

Usually ships in 3-6 days

0

21

Toro 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 1 left!

0

25

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
