74773 (MX 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 404314000 - 999999999) Battery and Electrical Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

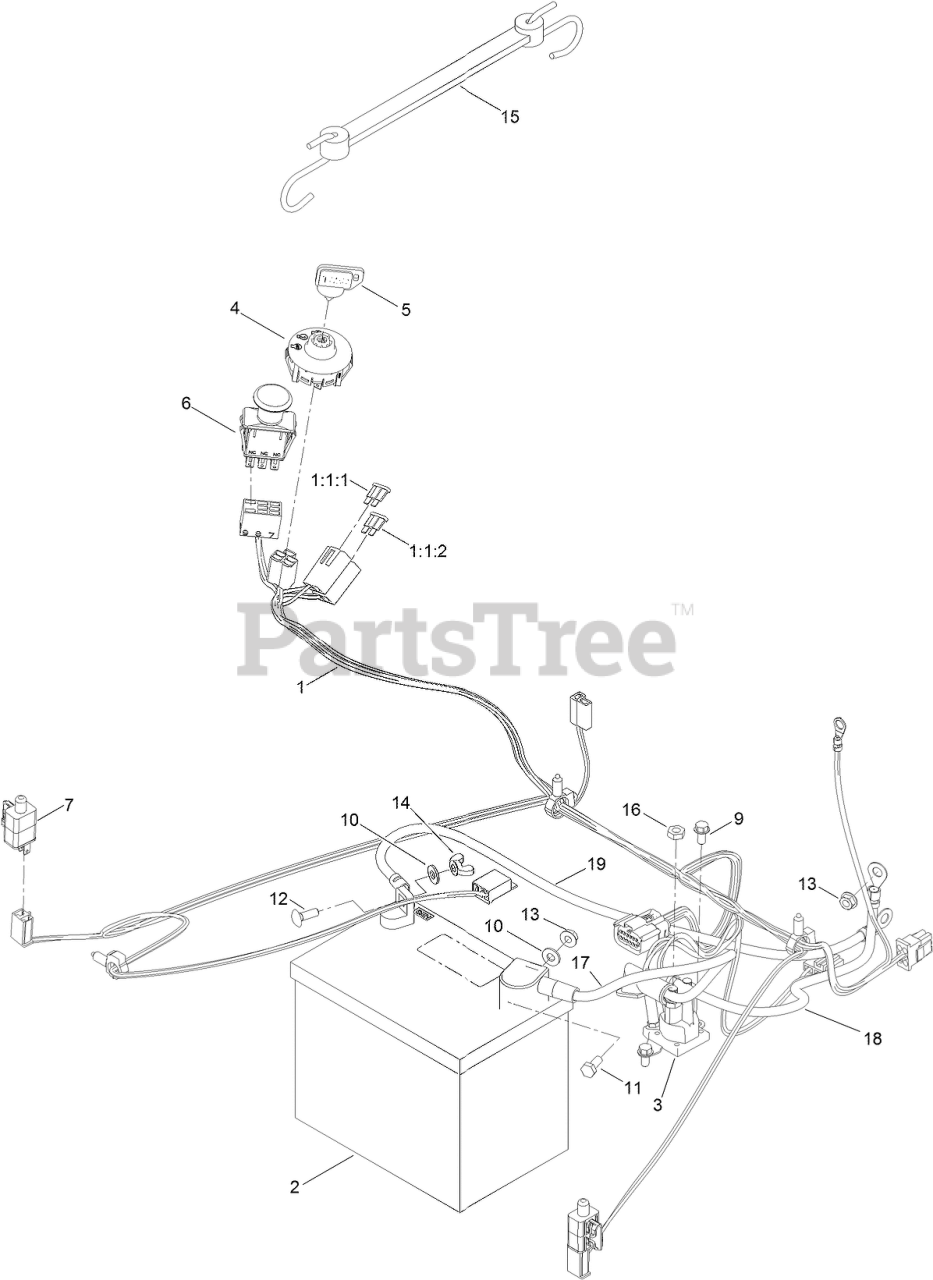

Battery and Electrical Assembly Parts Diagram

  • Title

1

Toro 136-7482

HARNESS-WIRE

$142.99

$

In Stock, Qty 5

0

1:1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 12

0

1:1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 1 left!

0

2

Toro 105-1692

BATTERY

$

$

Not available

3

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

4

Toro 137-4100

SWITCH-IGNITION

$37.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

6

Toro 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

7

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 14

0

12

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

15

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

16

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

17

Toro 119-8897

CABLE-BATTERY, RED

$21.99

$

In Stock, only 1 left!

0

18

Toro 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

Usually ships in 3-6 days

0

19

Toro 121-5726

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0
