74777 (MX 6050) - Toro 60" TimeCutter Zero-Turn Mower (SN: 401400000 - 404314199) Frame Assembly Parts Diagram

60" TimeCutter Zero-Turn Mower

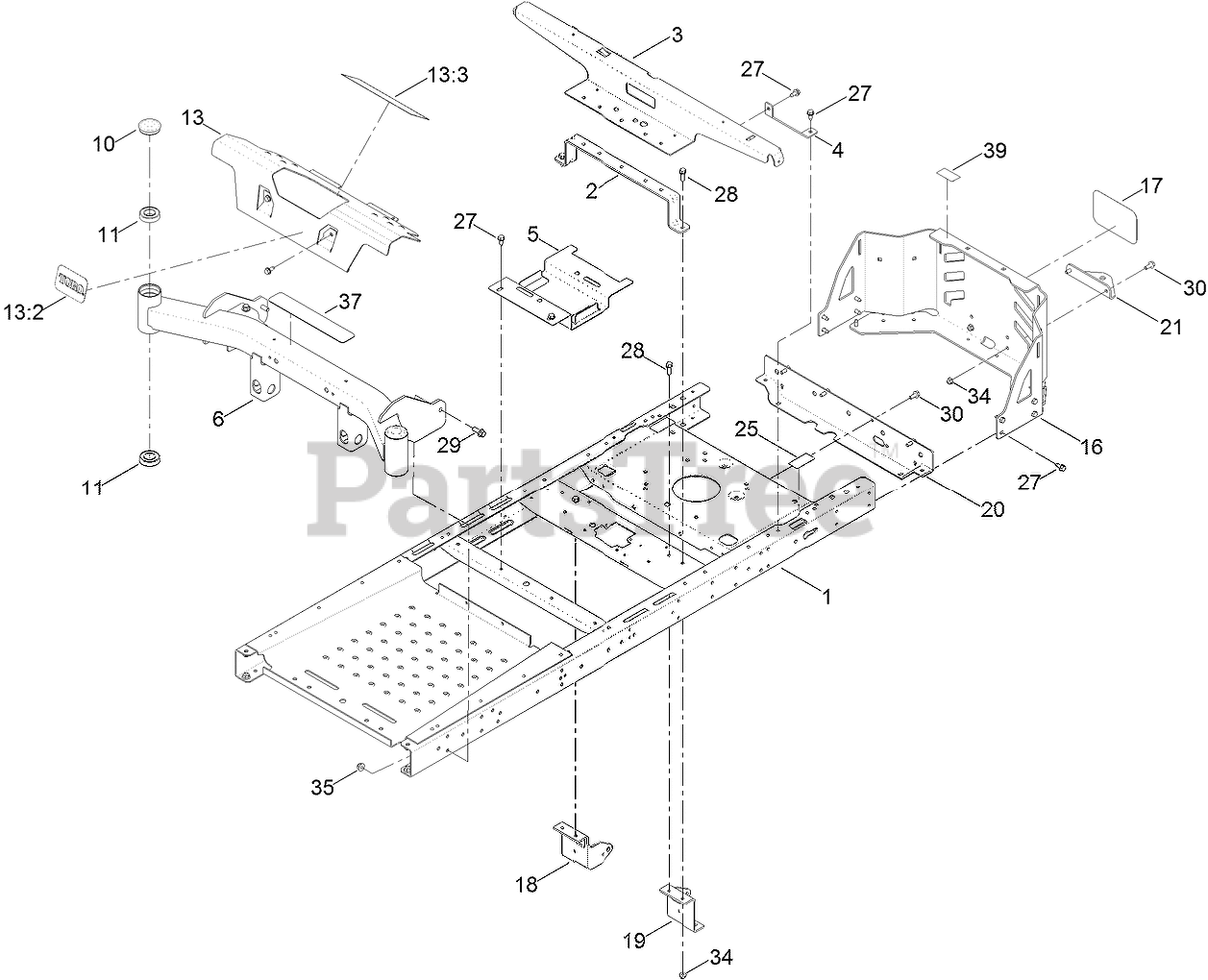

Frame Assembly Parts Diagram

  • Title

1

Toro 135-0508-01

RIVETED FRAME ASM (WIDE LEVER)

$498.99

$

Usually ships in 3-6 days

0

2

Toro 135-0687-03

BRACE-SEAT, REAR (WIDE)

$21.99

$

Usually ships in 3-6 days

0

3

Toro 133-7063-03

SUPPORT-POD

$89.99

$

Usually ships in 3-6 days

0

4

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

5

Toro 135-0507-03

BRACKET-BATTERY

$301.99

$

Usually ships in 3-6 days

0

6

Toro 133-4300-01

FRONT AXLE ASM

$442.99

$

Usually ships in 3-6 days

0

10

Toro 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 10

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 7

0

13

Toro 133-9331

FOOTREST

$170.99

$

Usually ships in 3-6 days

0

13:2

Toro 105-6971

DECAL

$9.49

$

In Stock, only 2 left!

0

13:3

Toro 133-9255

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 133-4431-03

GUARD-ENGINE

$257.99

$

Usually ships in 3-6 days

0

17

Toro 99-4693

DECAL

$26.99

$

Usually ships in 3-6 days

0

18

Toro 131-0901-01

MOUNT-HYDRO, FRONT (RH)
(Superseded to 137-7020-01)

$17.99

$

Usually ships in 3-6 days

0

19

Toro 131-0902-01

MOUNT-HYDRO, FRONT (LH)
(Superseded to 139-3211-01)

$16.99

$

In Stock, only 3 left!

0

20

Toro 130-6946-01

CROSSMEMBER-REAR, WIDE

$46.99

$

Usually ships in 3-6 days

0

21

Toro 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 1 left!

0

25

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 3 left!

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 133-9253

TREAD-STEP

$3.99

$

Usually ships in 3-6 days

0

39

Toro 136-9186

DECAL-BUCKET

$3.99

$

Usually ships in 3-6 days

0
