74780 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 400000000 - 401099999) STEERING COLUMN ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

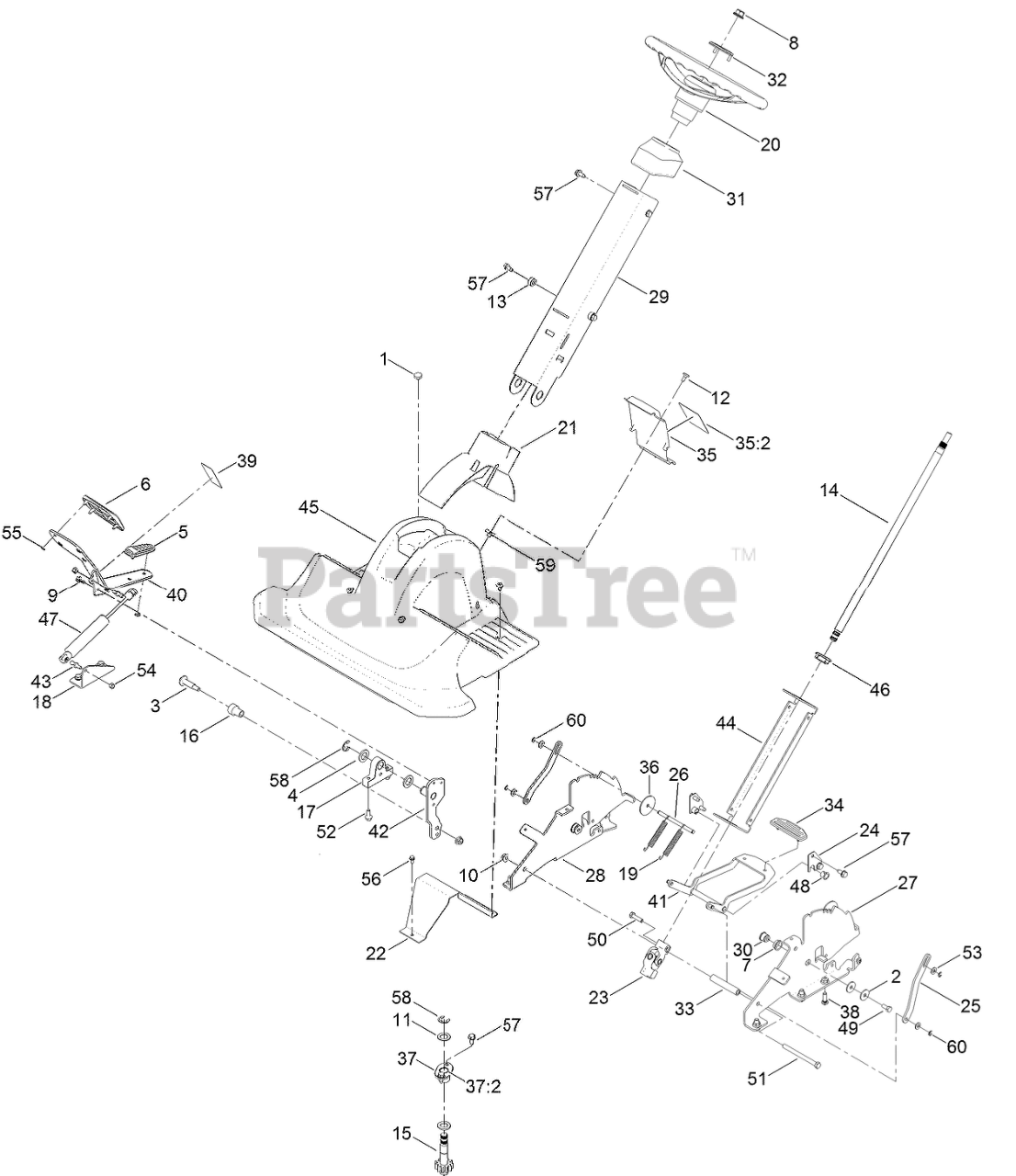

STEERING COLUMN ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

2

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 7

0

3

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

4

Toro 70-1160

WASHER

$4.49

$

Usually ships in 3-6 days

0

5

Toro 98-9039

PAD-HEEL, HYDRO PEDAL

$12.99

$

Usually ships in 3-6 days

0

6

Toro 98-9040

PAD-TOE, HYDRO PEDAL

$12.99

$

Usually ships in 3-6 days

0

7

Toro 99-4243

BUSHING-FLANGE

$4.49

$

Usually ships in 3-6 days

0

8

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 14

0

9

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-7640

WASHER-THRUST

$3.99

$

In Stock, Qty 17

0

12

Toro 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

13

Toro 121-1759

SPACER

$2.99

$

In Stock, only 1 left!

0

14

Toro 125-5507

SHAFT-STEERING, UPPER

$65.99

$

Usually ships in 3-6 days

0

15

Toro 125-5508

LOWER STEERING SHAFT ASM

$258.99

$

Usually ships in 3-6 days

0

16

Toro 127-3397

ROLLER

$8.49

$

Usually ships in 3-6 days

0

17

Toro 130-6887

MOUNT-PEDAL PIVOT

$15.99

$

Usually ships in 3-6 days

0

18

Toro 130-6910-03

BRACKET-DAMPER

$8.49

$

Usually ships in 3-6 days

0

19

Toro 130-6998

SPRING-EXTENSION

$5.99

$

Usually ships in 3-6 days

0

20

Toro 131-0957

WHEEL-STEERING

$112.99

$

In Stock, only 1 left!

0

21

Toro 131-1028

COVER-PIVOT, COLUMN

$15.99

$

Usually ships in 3-6 days

0

22

Toro 131-1029-03

SUPPORT-FOOTREST

$14.99

$

Usually ships in 3-6 days

0

23

Toro 131-1030

U-JOINT ASM

$

$

Not available

24

Toro 131-1043

PLATE-RETAINER

$2.99

$

Usually ships in 3-6 days

0

25

Toro 131-1049

PLATE-PLUNGER

$5.99

$

Usually ships in 3-6 days

0

26

Toro 131-1050

ROD-PLUNGER

$15.99

$

Usually ships in 3-6 days

0

27

Toro 131-1052-03

BRACKET-PIVOT, COLUMN (LH)

$60.99

$

Usually ships in 3-6 days

0

28

Toro 131-1053-03

BRACKET-PIVOT, COLUMN (RH)

$60.99

$

Usually ships in 3-6 days

0

29

Toro 131-1054-01

COLUMN-FRONT

$49.99

$

In Stock, only 1 left!

0

30

Toro 131-1056

SPACER-PIVOT, COLUMN

$14.99

$

In Stock, only 2 left!

0

31

Toro 131-1066

CAP-COLUMN

$7.49

$

Usually ships in 3-6 days

0

32

Toro 131-3630

CAP-WHEEL, STEERING

$7.49

$

Usually ships in 3-6 days

0

33

Toro 131-3697

SPACER

$8.49

$

In Stock, only 1 left!

0

34

Toro 131-4096

PAD-TILT PEDAL

$6.99

$

Usually ships in 3-6 days

0

35

Toro 131-4099

REAR COVER AND DECAL ASM

$37.99

$

Usually ships in 3-6 days

0

35:2

Toro 132-0870

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

36

Toro 131-8729

WASHER-SHAFT, TILT

$5.49

$

Usually ships in 3-6 days

0

37

Toro 131-8733

FLANGE BEARING ASM

$70.99

$

Usually ships in 3-6 days

0

37:2

Toro 115-7019

BUSHING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

38

Toro 132-0921

STUD-PUSH-IN

$1.99

$

Usually ships in 3-6 days

0

39

Toro 132-6863

DECAL-RELEASE, BREAK

$2.49

$

Usually ships in 3-6 days

0

40

Toro 132-6865-01

PEDAL-TRACTION

$27.99

$

Usually ships in 3-6 days

0

41

Toro 132-6868

RELEASE PEDAL ASM

$34.99

$

Usually ships in 3-6 days

0

42

Toro 132-6907

PIVOT LEVER ASM

$30.99

$

Usually ships in 3-6 days

0

43

Toro 132-6917

BALL STUD

$4.99

$

Usually ships in 3-6 days

0

44

Toro 132-9315-01

COLUMN-BACK

$33.99

$

Usually ships in 3-6 days

0

45

Toro 133-1152

SHROUD-STYLING, FRONT

$94.99

$

Usually ships in 3-6 days

0

46

Toro 133-1160

BEARING-SPHERICAL

$13.99

$

Usually ships in 3-6 days

0

47

Toro 133-1171

DAMPER-NON CAVITATING

$86.99

$

Usually ships in 3-6 days

0

48

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

49

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

50

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

51

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

52

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

53

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

54

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

55

Toro 32112-6

NUT-PUSH

$6.99

$

In Stock, only 4 left!

0

56

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

57

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

58

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 7

0

59

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

60

Toro 701197

E-RING

$3.49

$

Usually ships in 3-6 days

0
