74781 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) Frame, Front Axle and Caster Wheel Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

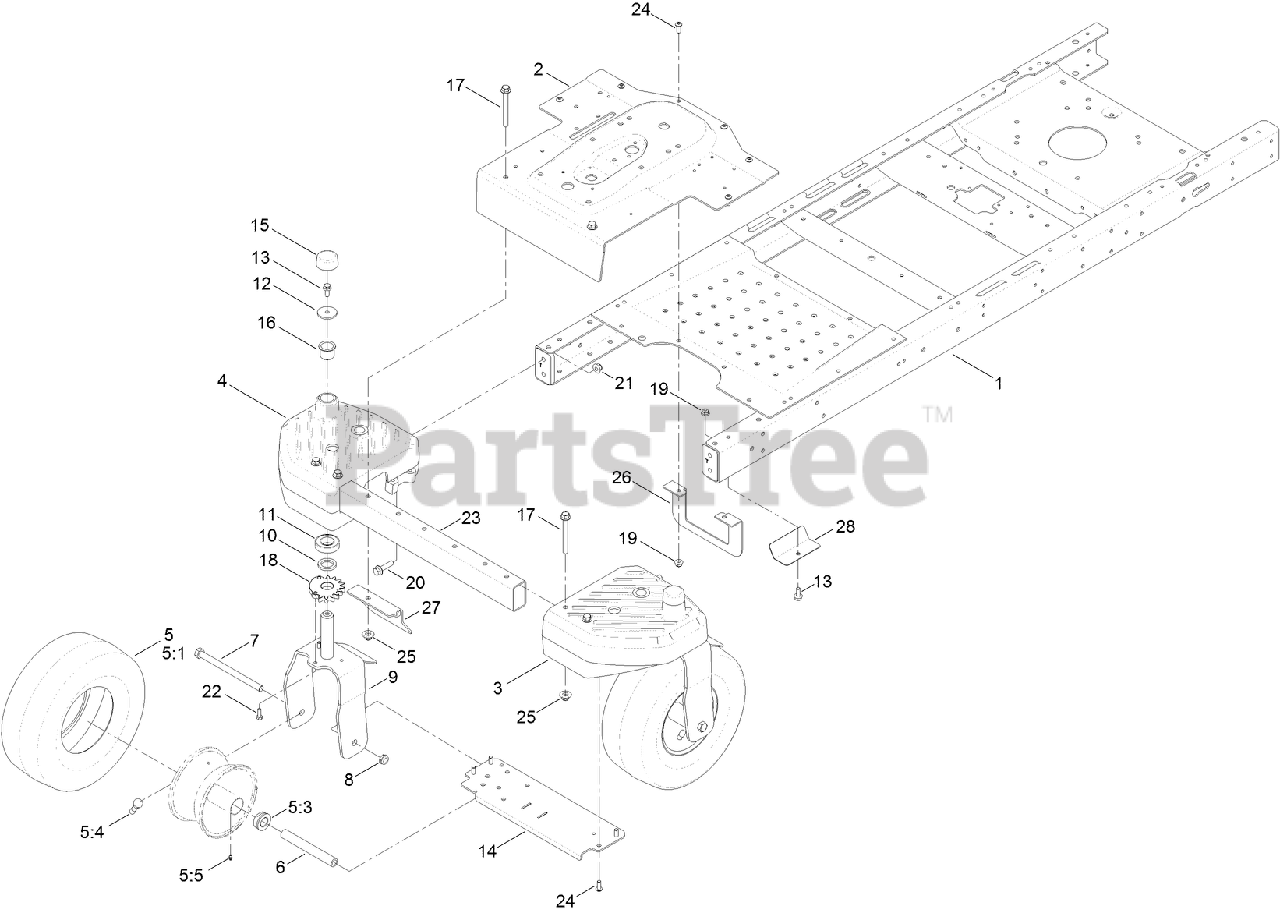

Frame, Front Axle and Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 130-0804-01

FRAME ASM

$552.99

$

Usually ships in 3-6 days

0

2

Toro 130-6931-05

PAN-STEER, FRONT

$161.99

$

Usually ships in 3-6 days

0

3

Toro 130-0748-05

HOUSING-SPINDLE, LH

$347.99

$

Usually ships in 3-6 days

0

4

Toro 130-0746-05

HOUSING-SPINDLE, RH

$347.99

$

Usually ships in 3-6 days

0

5

Toro 130-0736

CASTER WHEEL ASM

$93.99

$

In Stock, only 1 left!

0

5:1

Toro 130-0735

TIRE

$63.99

$

Usually ships in 3-6 days

0

5:3

Toro 114-1640

BUSHING-FLANGE

$13.99

$

In Stock, Qty 20+

0

5:4

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

5:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:99

Toro 105-0844

TUBE-INNER

Note: Not illustrated

$50.99

$

In Stock, only 2 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$20.99

$

In Stock, only 2 left!

0

7

Toro 325-22

SCREW-HH

$8.99

$

In Stock, Qty 8

0

8

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Toro 130-6970-03

CASTER FORK ASM

$135.99

$

Usually ships in 3-6 days

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

Usually ships in 3-6 days

0

12

Toro 131-1032

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

14

Toro 130-6983-03

PLATE-BRIDGE, NARROW

$61.99

$

Usually ships in 3-6 days

0

15

Toro 130-7015

CAP-CASTER

$1.99

$

Usually ships in 3-6 days

0

16

Toro 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, only 3 left!

0

17

Toro 115-7660

SCREW-HHF

$8.49

$

In Stock, only 2 left!

0

18

Toro 130-0689

GEAR-WHEEL, 15 TOOTH

$27.99

$

Usually ships in 3-6 days

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 130-6902-03

TUBE-FRONT, NARROW

$88.99

$

Usually ships in 3-6 days

0

24

Toro 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 131-7745-03

BRACKET-UPSTOP
(Superseded to 132-0941-03)

$20.99

$

Usually ships in 3-6 days

0

27

Toro 132-0868-03

GUARD-FRONT

$12.99

$

Usually ships in 3-6 days

0

28

Toro 132-0901-03

PLATE-GUARD

$10.99

$

Usually ships in 3-6 days

0
