74785 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Body Styling and Fuel Tank Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

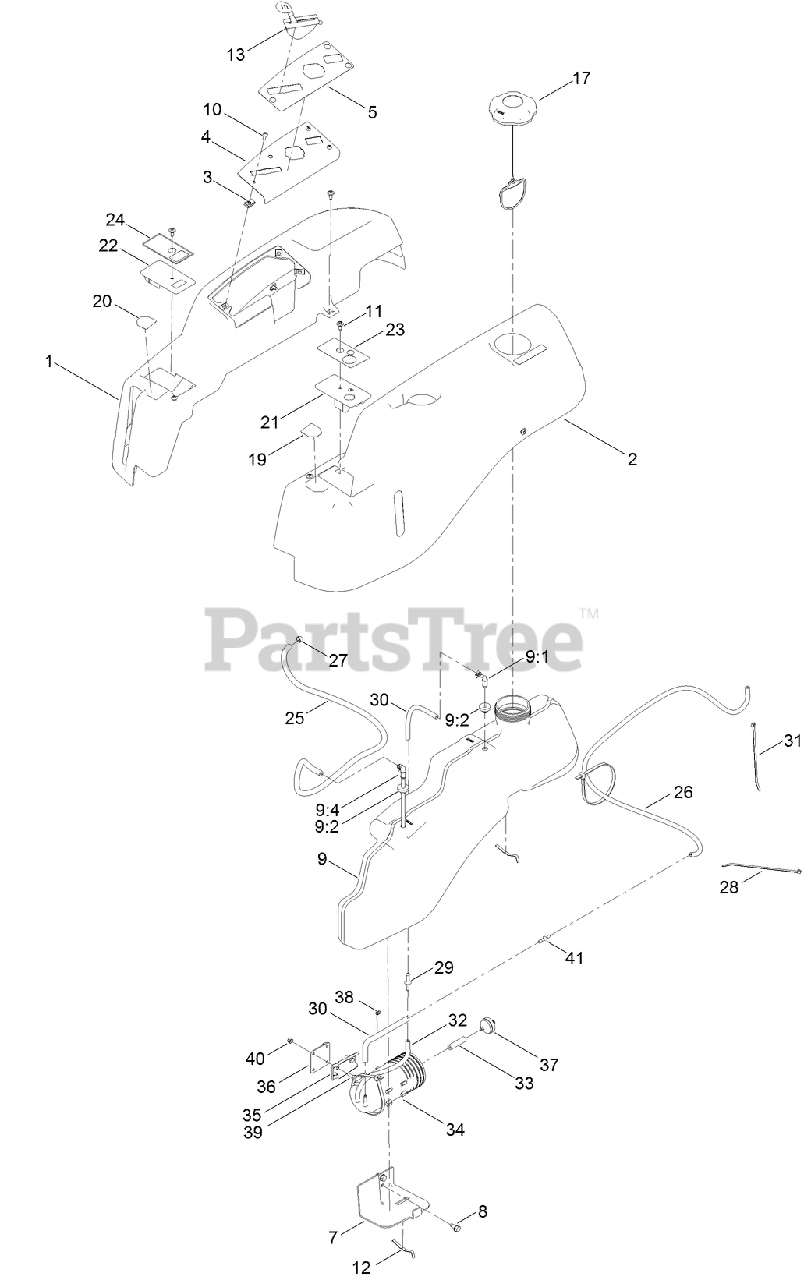

Body Styling and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 119-3335

POD-RH

$84.99

$

Usually ships in 3-6 days

0

2

Toro 119-3334

See Supercession: 137-7008
(Superseded to 137-7008)

$84.99

$

In Stock, only 1 left!

0

3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3378-03

PLATE-CONTROL

$9.49

$

In Stock, only 2 left!

0

5

Toro 131-4161

DECAL-PANEL, CONTROL

$18.99

$

Usually ships in 3-6 days

0

7

Toro 119-3476-03

SUPPORT-TANK, FRONT

$14.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 7

0

9

Toro 119-3324

FUEL TANK ASM

$352.99

$

In Stock, only 2 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$12.99

$

In Stock, only 2 left!

0

9:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

9:4

Toro 117-7400

FITTING-PLASTIC

$6.99

$

In Stock, Qty 8

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

12

Toro 609830

SPRING

$5.99

$

In Stock, only 2 left!

0

13

Toro 121-5674

CABLE-THROTTLE (45.0 IN)

$61.99

$

In Stock, only 2 left!

0

17

Toro 120-5461

See Supercession: 137-4119
(Superseded to 137-4119)

$29.99

$

In Stock, only 4 left!

0

19

Toro 131-3621

DECAL-NMIR

$2.99

$

Usually ships in 3-6 days

0

20

Toro 131-3620

DECAL-CONTROL, PEDAL

$2.99

$

Usually ships in 3-6 days

0

21

Toro 130-7042

COVER-LH

$11.99

$

Usually ships in 3-6 days

0

22

Toro 130-7041

COVER-RH

$11.99

$

Usually ships in 3-6 days

0

23

Toro 131-3665

DECAL-KEYCHOICE

$7.49

$

In Stock, only 3 left!

0

24

Toro 131-3955

DECAL-BRAKE, PARKING

$6.99

$

Usually ships in 3-6 days

0

25

Toro 109-0273

HOSE-FUEL

$25.99

$

Usually ships in 3-6 days

0

26

Toro 132-0918

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

27

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

28

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0

29

Toro 117-5399

ADAPTOR-ORIFICE

$3.99

$

Usually ships in 3-6 days

0

30

Toro 110-1876

HOSE-FUEL

$13.99

$

In Stock, only 1 left!

0

31

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 121-3003

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

33

Toro 99-9415

HOSE-FUEL

$3.99

$

In Stock, only 4 left!

0

34

Toro 117-1221

CANISTER-CARBON, 800CC

$82.99

$

In Stock, only 1 left!

0

35

Toro 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

36

Toro 119-8992-03

PLATE-ADAPTER

$9.49

$

Usually ships in 3-6 days

0

37

Toro 115-7854

FILTER-FUEL, INLINE

$7.99

$

In Stock, only 2 left!

0

38

Toro 120-2038

CARTRIDGE-VALVE, CHECK

$47.99

$

Usually ships in 3-6 days

0

39

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

41

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0
