748001-0321-01 - Briggs & Stratton Electric Motor Motor and Housing Parts Diagram

Electric Motor

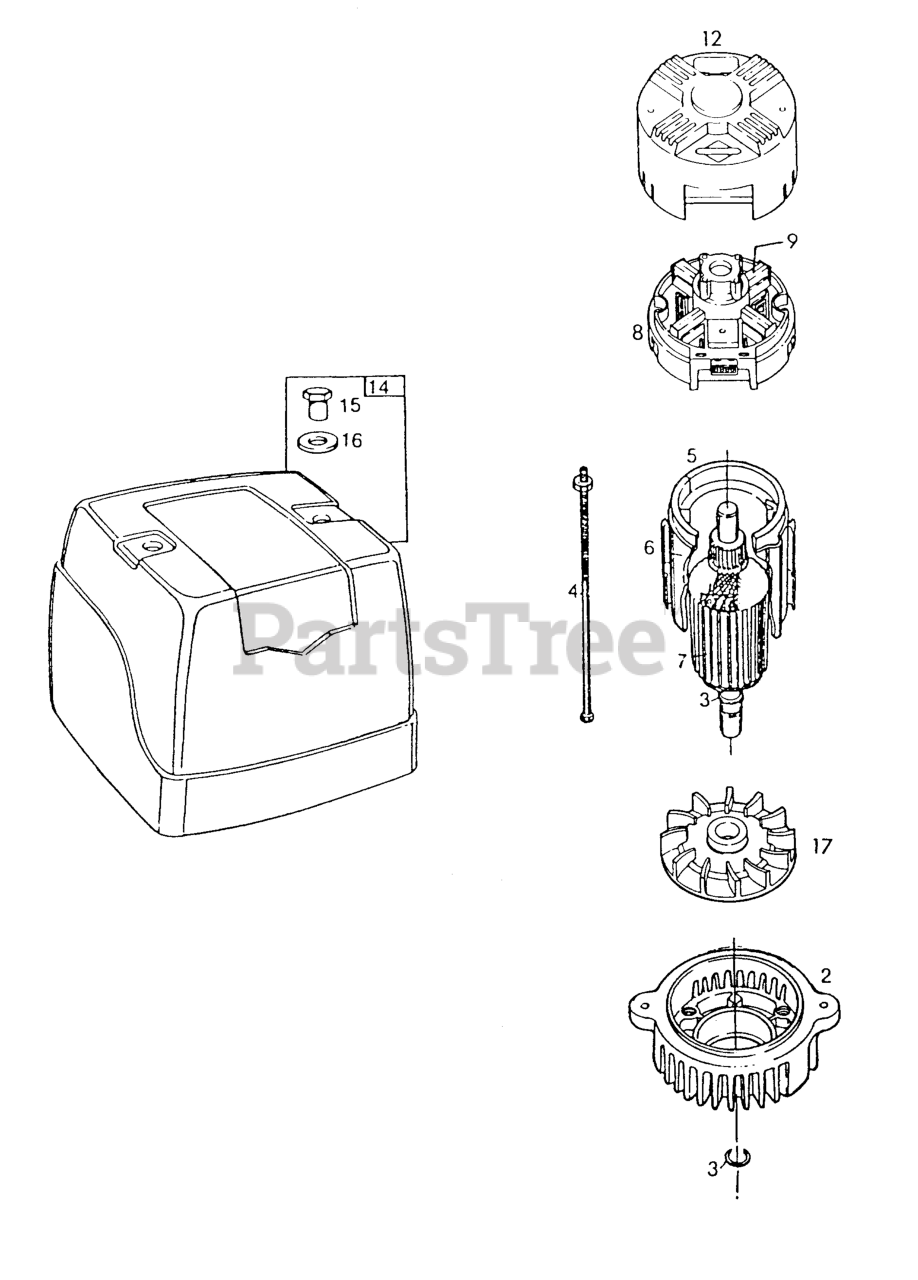

Motor and Housing Parts Diagram

  • Title

2

Briggs & Stratton 213119

Housing-Fan

$39.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 394770

End Cap-Drive

$55.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 397666

End Cap-Drive

$35.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 395477

Ring Set-Retaining

$0.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 490832

Bolt-Thru (Includes Two Sets)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 399995

Housing Assembly

$58.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 490830

Insulator Group-Housing

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 490829

Armature Group

$161.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 490940

Armature Group

$

$

Not available

8

Briggs & Stratton 490833

Box-Brush

$60.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 490834

Brush Set

$

$

Not available

12

Briggs & Stratton 280709

End Cap-Brush

$8.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 396267

Cover-Motor (Includes Hardware And Filter)

$26.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 231298

Nut-Hex.

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93852

Washer, Steel Zinc
(Superseded to 690310)

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 280837

Fan

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 491389

Fan

$20.99

$

Usually ships in 2-12 days

0
