74802 (19-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 240000001 - 240000158) (2004) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

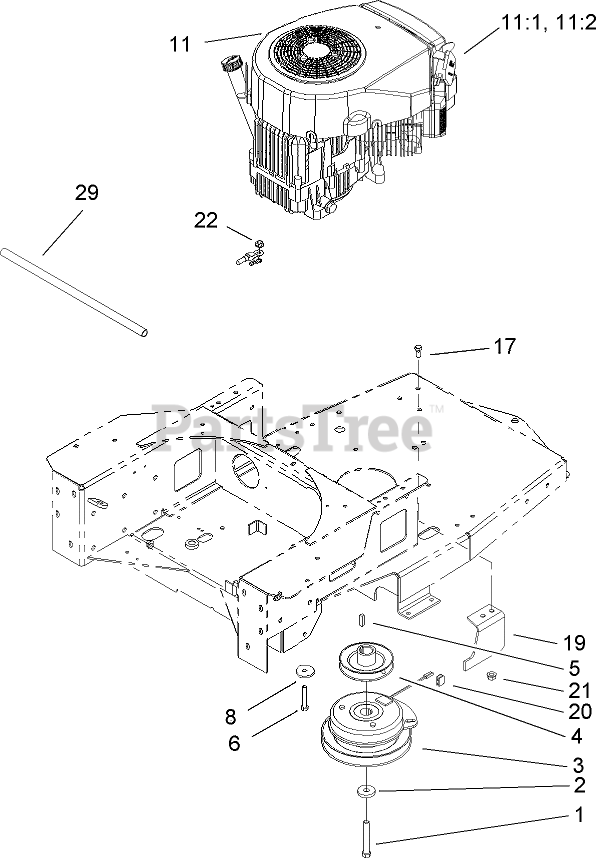

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, Qty 6

0

2

Toro 112843

WASHER

$3.99

$

In Stock, Qty 6

0

3

Toro 104-3624

CLUTCH
(Superseded to 109-7035)

$522.99

$

In Stock, only 1 left!

0

4

Toro 100-7314

PUMP DRIVE PULLEY ASM

$231.99

$

Usually ships in 3-6 days

0

5

Toro 5-7280

KEY

$5.99

$

In Stock, Qty 10

0

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 9

0

8

Toro 62-7190

SPACER-STEEL

$5.49

$

Usually ships in 3-6 days

0

11

ENGINE-KAWASAKI, FH580V-AS13

Note: Not serviced separately

$

$

Not available

11:1

Toro 100-6467

MUFFLER

$

$

Not available

11:2

Toro 100-6468

Clamp-Muffler

$

$

Not available

17

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

19

Toro 104-3613-03

STOP-CLUTCH

$

$

Not available

20

Toro 98-5023

BUMPER

$8.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

29

Toro 106-7022

TUBE-DRAIN, OIL

$9.99

$

In Stock, only 2 left!

0
