74804 TE (Z 350) - Toro 122cm Z Master Zero-Turn Mower and Bagger (SN: 220000001 - 220999999) (2002) PTO / GEARBOX ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower and Bagger

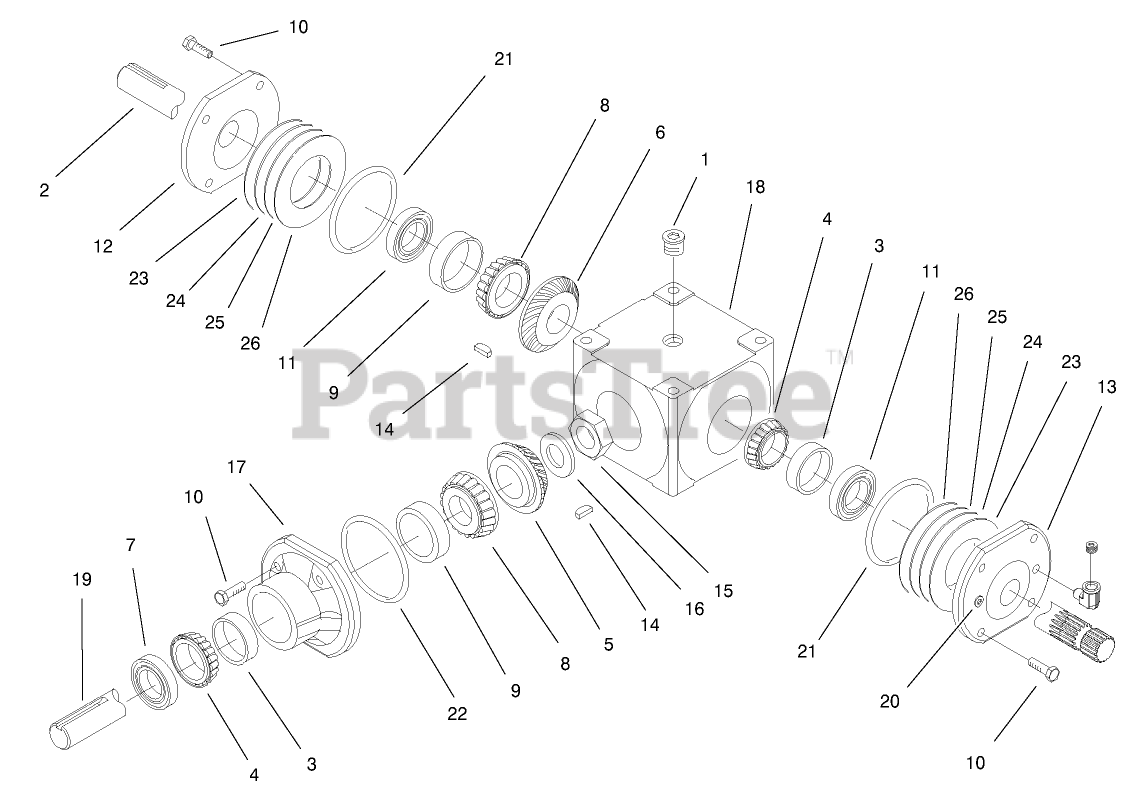

PTO / GEARBOX ASSEMBLY Parts Diagram

  • Title

1

Toro 100-5812

PLUG

$19.99

$

Usually ships in 3-6 days

0

2

Toro 104-2423

SHAFT-CROSS

$

$

Not available

3

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$9.99

$

In Stock, Qty 20+

0

4

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 10

0

5

Toro 105-3117

Gear-Spiral,RH

$1949.99

$

Usually ships in 3-6 days

0

6

Toro 105-3116

Gear-Spiral,LH

$1949.99

$

Usually ships in 3-6 days

0

7

Toro 100-4575

SEAL

$58.99

$

In Stock, only 2 left!

0

8

Toro 100-5816

BEARING-CONE

$112.99

$

Usually ships in 3-6 days

0

9

Toro 100-5817

BEARING-CUP

$49.99

$

Usually ships in 3-6 days

0

10

Toro 100-5818

SCREW-HH

$

$

Not available

11

Toro 100-5819

SEAL
(Superseded to 253-118)

$18.99

$

In Stock, Qty 20+

0

12

Toro 100-5820

CAP-END

$

$

Not available

13

Toro 100-5821

END CAP W/ DRAIN PLUGS

$

$

Not available

14

Toro 100-5822

OBS KEY
(Superseded to 3257-33)

$2.49

$

In Stock, only 3 left!

0

15

Toro 100-4577

NUT-JAM

$

$

Not available

17

Toro 105-3119

Pinion Housing

$

$

Not available

18

Toro 100-5826

CASE

$

$

Not available

19

Toro 105-3115

Shaft-Pinion

$

$

Not available

20

Toro 100-4583

PLUG

$

$

Not available

21

Toro 100-5847

O-RING

$19.99

$

Usually ships in 3-6 days

0

23

Toro 100-7757

SHIM-GREEN (.003)
(Superseded to 100-1394)

$16.99

$

Usually ships in 3-6 days

0

24

Toro 100-7758

SHIM-BLUE (.005)

$19.99

$

Usually ships in 3-6 days

0

25

Toro 100-7759

SHIM - BROWN (.010)
(Superseded to 112-7031)

$42.99

$

Usually ships in 3-6 days

0

26

Toro 100-7760

SHIM-YELLOW (.020IN)
(Superseded to 100-1397)

$

$

Not available
