74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 240000001 - 240999999) (2004) GROUP 10 - AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH25S 68696 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

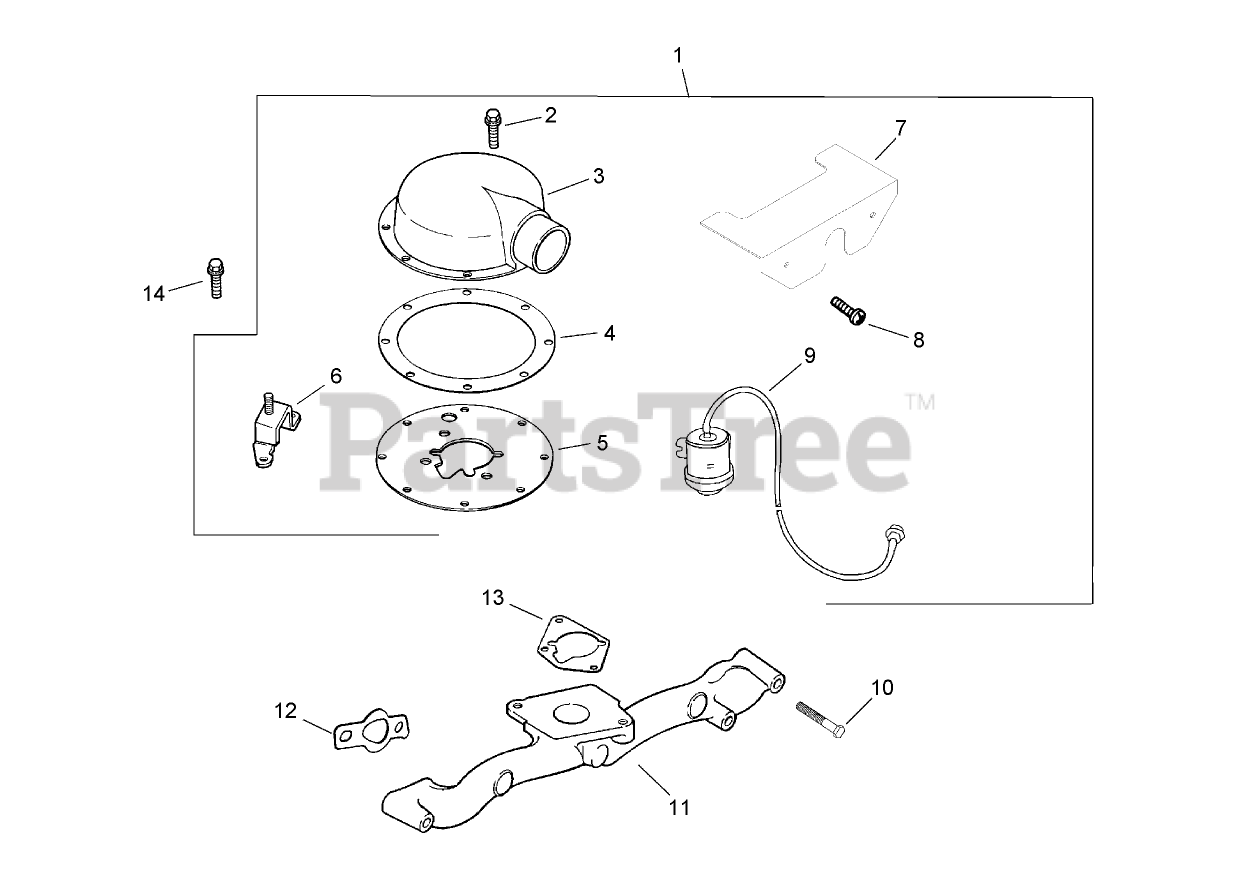

GROUP 10 - AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH25S 68696 Parts Diagram

  • Title

1

Toro 24 743 26-S

Heavy Duty Air Cleaner Kit (Includes 2-9, 24 853 77-S, & 24 113 97-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

3

Kohler 24 029 28-S

Adapter-Intake, Air

Note: Obtain parts from www.kohlerplus.com

$181.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 38-S

Gasket-Adapter, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 1 left!

0

5

Kohler 24 029 35-S

Plate-Adapter
(Superseded to 24 029 79-S)

Note: Obtain parts from www.kohlerplus.com

$55.99

$

Usually ships in 2-5 days

0

6

Kohler 24 126 21-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 206-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 5

0

7

Kohler 24 314 25-S

Shield-Debris

Note: Obtain parts from www.kohlerplus.com

$44.99

$

Usually ships in 2-5 days

0

8

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

9

Kohler 25 755 24-S

Air Filter Gauge Kit

Note: Obtain parts from www.kohlerplus.com

$96.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$1.99

$

In Stock, Qty 20+

0

11

Kohler 24 164 14-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$229.99

$

Usually ships in 2-5 days

0

12

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

13

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

14

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler 24 853 77-S

Carburetor Kit

Note: Obtain parts from www.kohlerplus.com

$425.99

$

Usually ships in 2-5 days

0

Kohler 24 853 77-S

Carburetor Kit

Note: Not illustrated

$425.99

$

Usually ships in 2-5 days

0

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 113 97-S

Decal-25 HP

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

Kohler 24 113 97-S

Decal-25 HP

Note: Not illustrated

$17.99

$

Usually ships in 2-5 days

0
