74805 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 240000001 - 240999999) (2004) GROUP 6 - BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH25S 68696 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

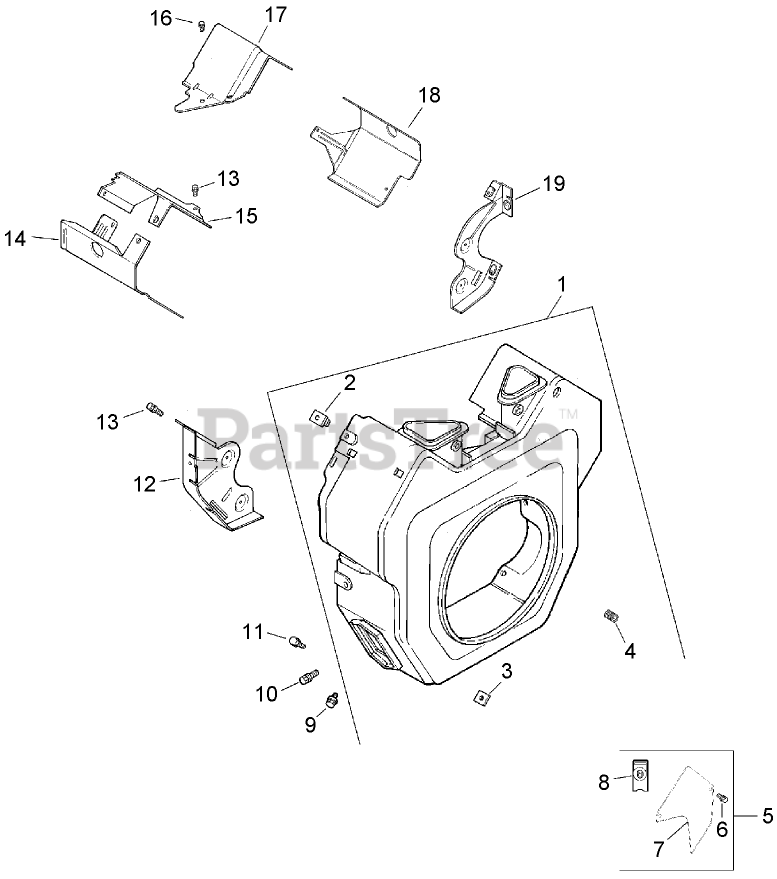

GROUP 6 - BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH25S 68696 Parts Diagram

  • Title

1

Kohler 84 027 03-S

Blower Housing ASM (Includes 2-8)
(Superseded to 24 027 488-S)

Note: Obtain parts from www.kohlerplus.com

$178.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 25 755 21-S

Access Panel Kit (Includes 6 qty 4],7,8)
(Superseded to 25 755 20-S)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

6

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

7

Kohler 24 096 64-S

Cover-Access
(Superseded to 25 755 21-S)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

8

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

9

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

11

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 17

0

12

Kohler 24 146 19-S

Plate-Backing (No. 2 Side)
(Superseded to 24 146 59-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 2 left!

0

13

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

14

Kohler 24 063 39-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

15

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 1 left!

0

16

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 9

0

17

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 3 left!

0

18

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

19

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 113 97-S

Decal-25 HP

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

Kohler 24 113 97-S

Decal-25 HP

Note: Not illustrated

$17.99

$

Usually ships in 2-5 days

0
