74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 48 INCH DECK BLADE AND DISCHARGE ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

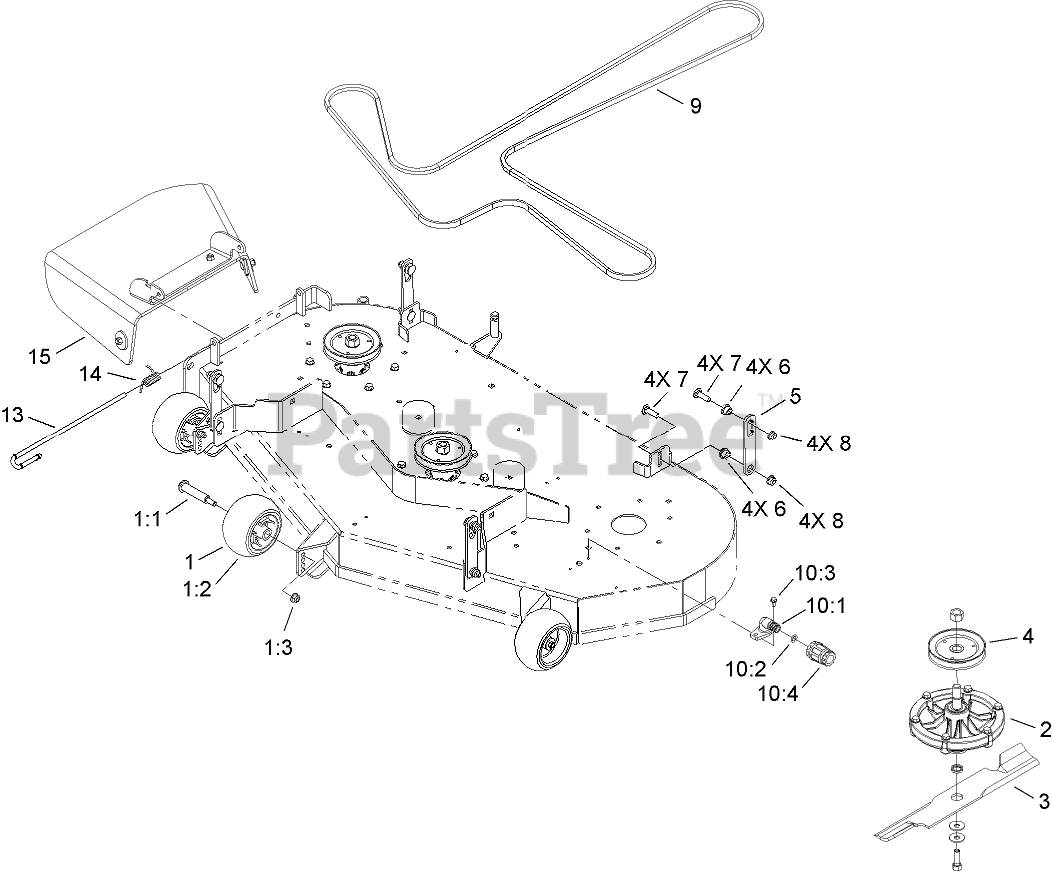

48 INCH DECK BLADE AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Toro 109-6388

ANTI-SCALP ROLLER KIT

$46.99

$

In Stock, Qty 14

0

1:1

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

1:2

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

1:3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 109-6394

COMPLETE CUTTER HOUSING ASM
(Superseded to 116-5712)

$216.99

$

In Stock, only 2 left!

0

3

Toro 109-6872

BLADE-NOTCHED

$29.99

$

In Stock, only 3 left!

0

4

Toro 109-3747

PULLEY-DRIVE, BLADE
(Superseded to 116-4875)

$82.99

$

In Stock, only 2 left!

0

5

Toro 109-3410

HANGER-DECK

$12.99

$

In Stock, only 3 left!

0

6

Toro 103-3900

SPACER-STRUT

$8.99

$

In Stock, Qty 13

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-5364

BELT
(Superseded to 109-5364-SL)

$80.99

$

Usually ships in 3-6 days

0

10:1

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 6

0

10:2

Toro 46-6290

O-RING

$2.99

$

In Stock, only 1 left!

0

10:3

Toro 93-6083

SCREW-HWH

$1.49

$

In Stock, Qty 8

0

10:4

Toro 95-3270

CONNECTOR-HOSE

$26.99

$

In Stock, Qty 7

0

10

Toro 109-6393

WASHOUT PORT KIT

Note: Not illustrated

$

$

Not available

13

Toro 109-5152

PIN-CHUTE
(Superseded to 109-8854)

$17.99

$

In Stock, only 3 left!

0

14

Toro 57-6950

SPRING

$29.99

$

In Stock, only 2 left!

0

15

Toro 114-1651

RUBBER DEFLECTOR ASM

$275.99

$

Usually ships in 3-6 days

0
