74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 44K777-0123-E1 Parts Diagram

48" Titan Zero-Turn Mower

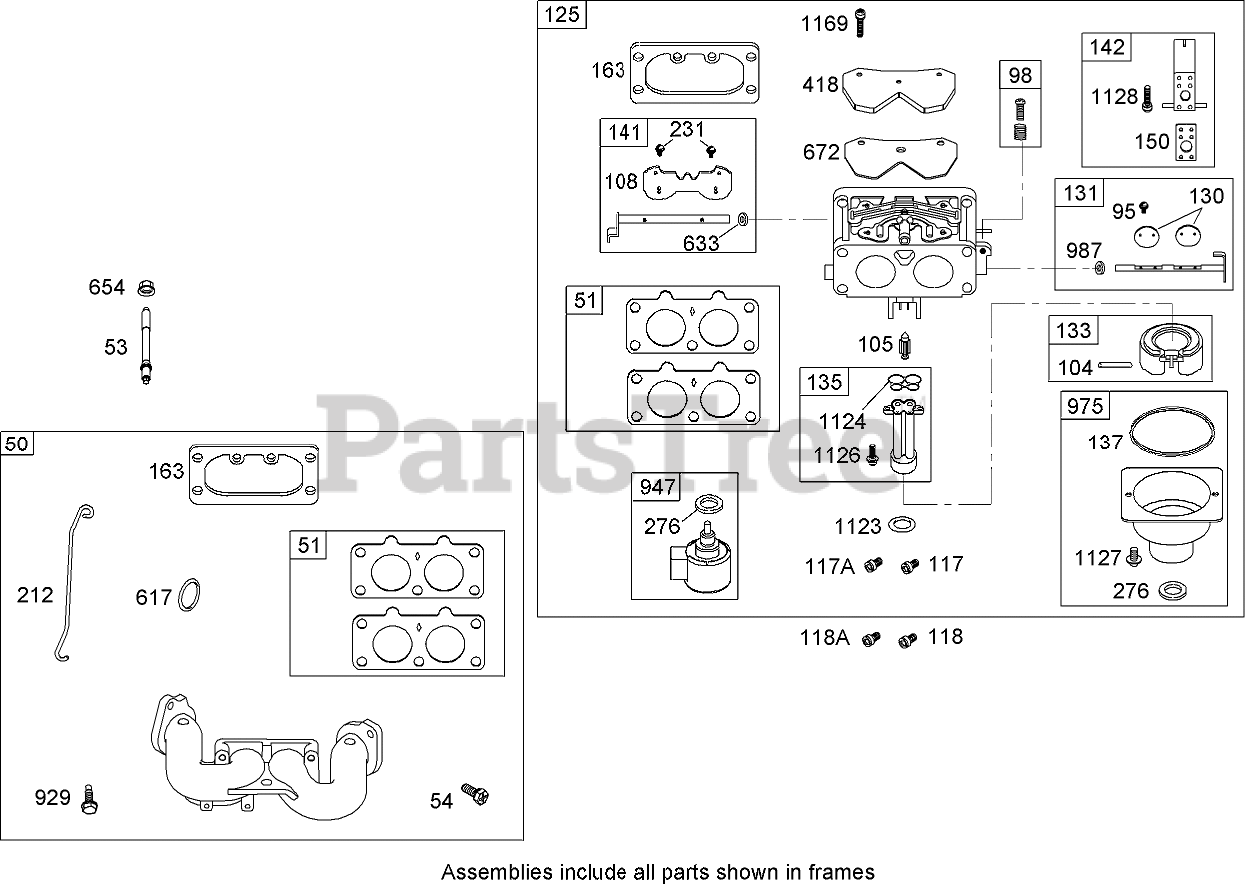

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 44K777-0123-E1 Parts Diagram

  • Title

50

Briggs & Stratton 695241

Manifold-Intake
(Superseded to 595606)

Note: Obtain parts from www.briggsandstratton.com

$95.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$5.49

$

In Stock, only 2 left!

0

53

Briggs & Stratton 690951

Stud (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

54

Briggs & Stratton 699816

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 690718

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 690718

Screw (Throttle Valve)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 699721

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$16.99

$

In Stock, only 4 left!

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 4 left!

0

108

Briggs & Stratton 699723

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 792296

Jet-Main (STD, LH)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 2 left!

0

117A

Briggs & Stratton 842627

Jet-Main (STD, RH)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 2 left!

0

118

Briggs & Stratton 699457

Jet-Main (High Altitude, LH)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 3 left!

0

118A

Briggs & Stratton 699733

Jet-Main (High Altitude, RH)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 792295

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$253.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 690993

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 499805

Throttle Shaft Kit

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 699724

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$34.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 699729

Tube-Transfer, Fuel

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 3 left!

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 19

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 19

0

141

Briggs & Stratton 699722

Throttle Shaft Kit
(Superseded to 796228)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 699726

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 3 left!

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 691001

Gasket-Cleaner, Air

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 13

0

163

Briggs & Stratton 691001

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 13

0

163

Briggs & Stratton 691001

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 13

0

212

Briggs & Stratton 695238

Link?Throttle

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 9

0

231

Briggs & Stratton 690718

Screw (Choke Valve)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 695410

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 10

0

276

Briggs & Stratton 695410

Washer-Sealing

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 10

0

276

Briggs & Stratton 695410

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, Qty 10

0

418

Briggs & Stratton 690999

Plate-Cover, Carburetor
(Superseded to 795912)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 697891

O-Ring, Seal (Intake Manifold)
(Superseded to 691917)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 3 left!

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$8.49

$

In Stock, only 3 left!

0

654

Briggs & Stratton 690958

Nut (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 9

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$13.99

$

In Stock, Qty 9

0

929

Briggs & Stratton 695239

Screw (Choke Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

947

Briggs & Stratton 841546

Solenoid-Fuel

Note: Obtain parts from www.briggsandstratton.com

$183.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 791232

Bowl-Float
(Superseded to 798778)

Note: Obtain parts from www.briggsandstratton.com

$197.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

Usually ships in 2-12 days

0

1123

Briggs & Stratton 841653

O-Ring, Seal (Solenoid Retainer)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$13.99

$

In Stock, Qty 9

0

1123

Briggs & Stratton 841653

O-Ring, Seal (Solenoid Retainer)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 9

0

1124

Briggs & Stratton 690988

O-Ring, Seal (Fuel Transfer Tube)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

1124

Briggs & Stratton 690988

O-Ring, Seal (Fuel Transfer Tube)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

In Stock, Qty 6

0

1126

Briggs & Stratton 690991

Screw (Fuel Transfer Tube)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

Screw (Float Bowl)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 6

0

1128

Briggs & Stratton 690990

Screw (Carburetor Nozzle)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw (Carburetor Cover Plate)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days
