74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 44K777-0125-G1 Parts Diagram

48" Titan Zero-Turn Mower

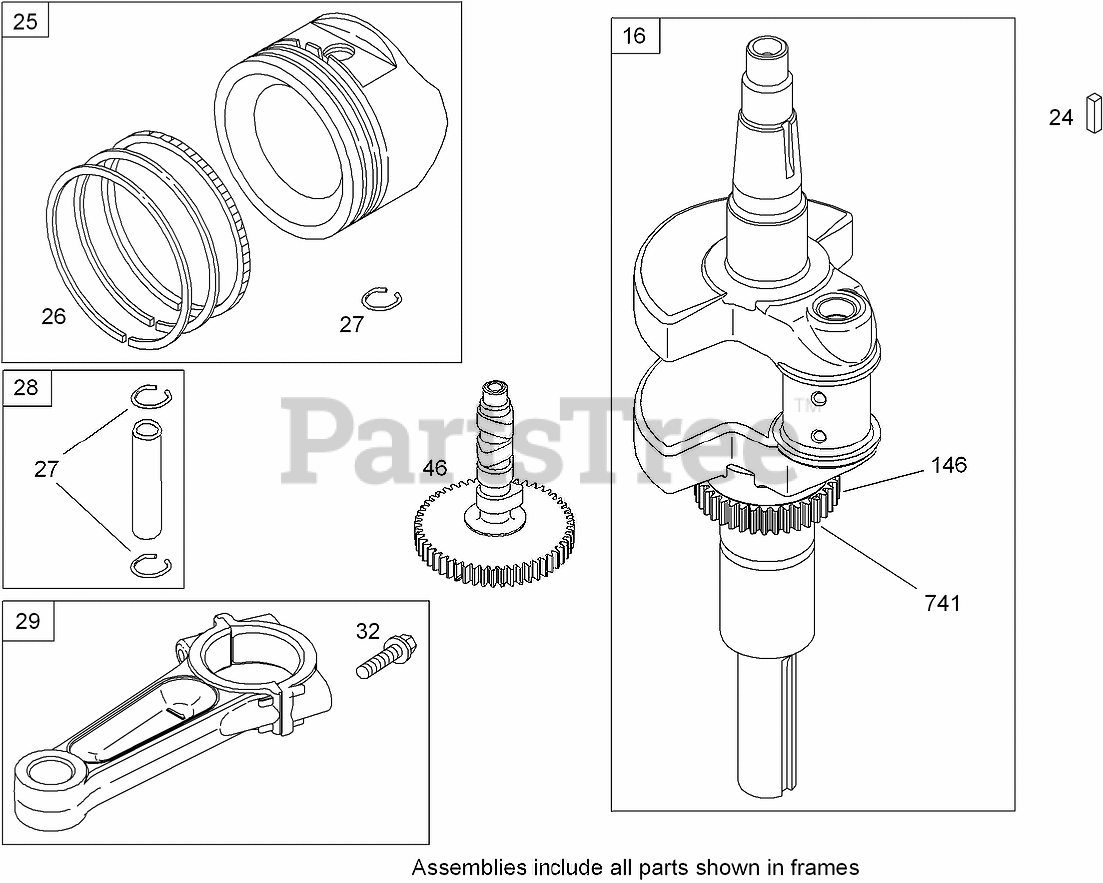

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 44K777-0125-G1 Parts Diagram

  • Title

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 792117

Piston ASM (STD)

Note: Obtain parts from www.briggsandstratton.com

$168.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 792144

Piston ASM (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$146.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792026

Ring Set (STD)

Note: Obtain parts from www.briggsandstratton.com

$49.99

$

In Stock, Qty 16

0

26

Briggs & Stratton 792073

Ring Set (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 690975

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 19

0

28

Briggs & Stratton 690229

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

46

Briggs & Stratton 790562

Camshaft
(Superseded to 797242)

Note: Obtain parts from www.briggsandstratton.com

$134.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

741

Briggs & Stratton 690980

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 2 left!

0
