74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) CYLINDER ASSEMBLY BRIGGS AND STRATTON 44K777-0125-G1 Parts Diagram

48" Titan Zero-Turn Mower

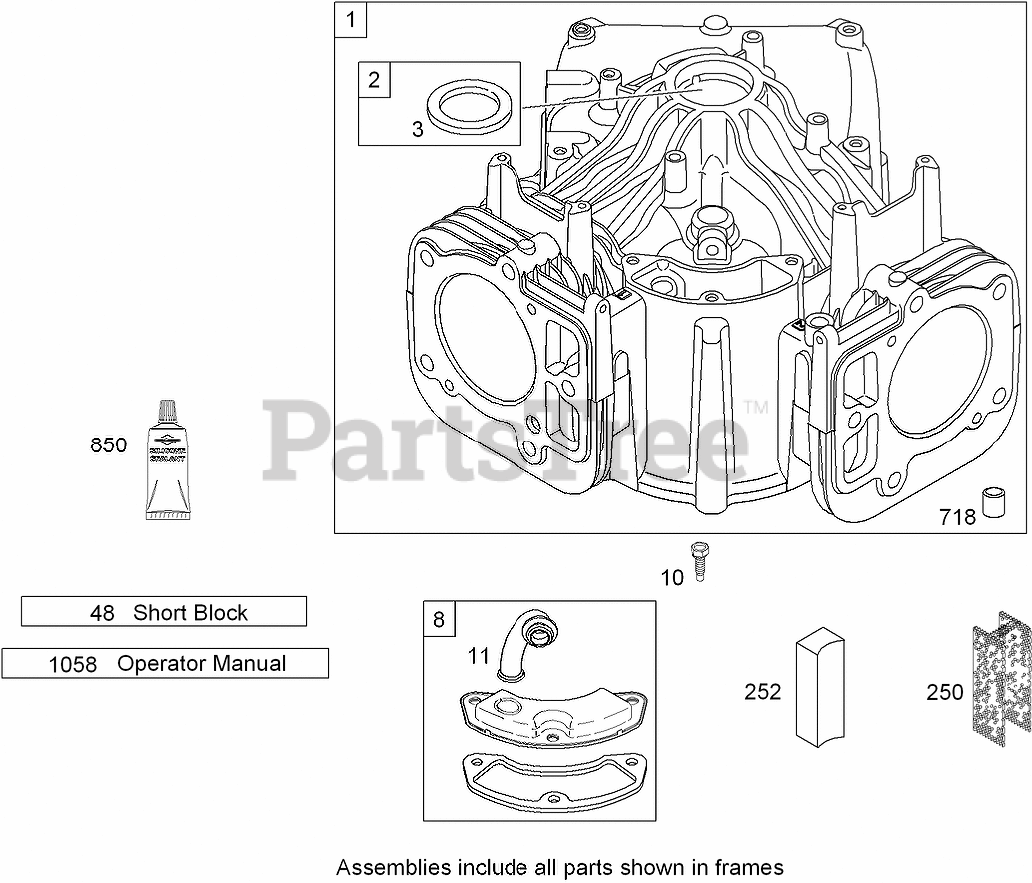

CYLINDER ASSEMBLY BRIGGS AND STRATTON 44K777-0125-G1 Parts Diagram

  • Title

1

Briggs & Stratton 699753

Cylinder ASM
(Superseded to 594970)

Note: Obtain parts from www.briggsandstratton.com

$398.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 499585

Bushing and Seal ASM (Magneto Side)
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 2 left!

0

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

8

Briggs & Stratton 792185

Breather ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

10

Briggs & Stratton 691108

Screw (Breather Asm)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 792184

Tube-Breather

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 698172

Short Block
(Superseded to 797093A)

Note: Obtain parts from www.briggsandstratton.com

$1334.99

$

Usually ships in 2-12 days

0

250

Briggs & Stratton 690957

Retainer-Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 794389

Collector-Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

Sealant-Liquid

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, Qty 5

0

1058

Toro MS3373

Operator Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
