74812 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) Flywheel Assembly Briggs and Stratton 44K777-0125-G1 Parts Diagram

48" Titan Zero-Turn Mower

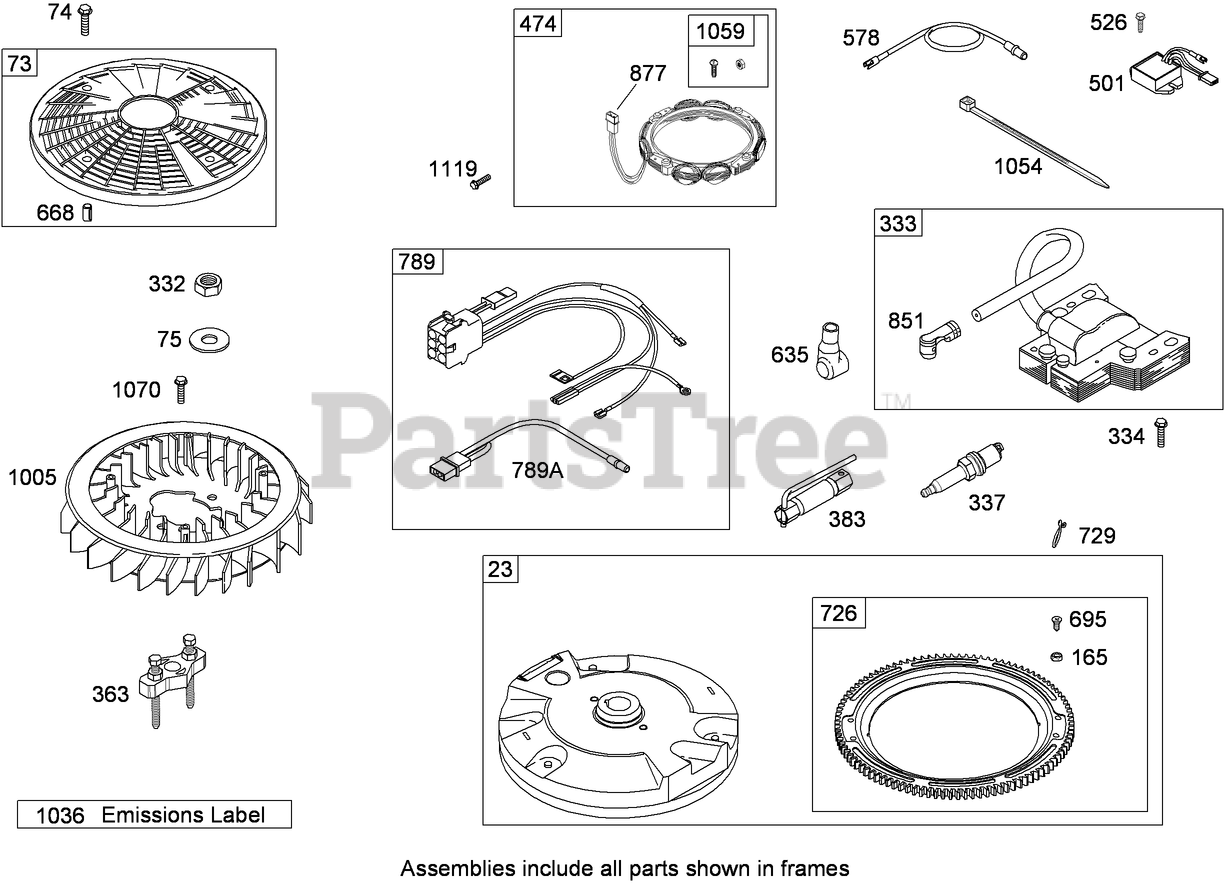

Flywheel Assembly Briggs and Stratton 44K777-0125-G1 Parts Diagram

  • Title

23

Toro 691053

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

73

Toro 494439

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

74

Toro 698425

Screw (Rotating Screen)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

75

Toro 691056

Washer

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

165

Toro 693148

Nut (Ring Gear)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

332

Toro 691059

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

333

Toro 691060

Armature-Magneto

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

334

Toro 691061

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

337

Toro 792015

Plug-Spark

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

363

Toro 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Toro 19374s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

474

Toro 696458

Alternator

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

501

Toro 691185

Regulator

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

526

Toro 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

578

Toro 691208

Wire ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

635

Toro 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

668

Toro 691500

Spacer

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

695

Toro 693149

Screw (Ring Gear)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

726

Toro 499612

Gear-Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

729

Toro 694123

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

789

Toro 698330

Harness-Wiring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

789A

Toro 790544

Harness-Wiring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

877

Toro 399916

Connector-Wire, Alternator

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1005

Toro 791236

Fan-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1036

Loose Parts Package

Note: Not serviced separately

$

$

Not available

1036

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1054

Toro 280275

Tie-Cable

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1059

Toro 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1070

Toro 690372

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1119

Toro 691183

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
