74813 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) 48 Inch Deck and Spindle Assembly Parts Diagram

48" Titan Zero-Turn Mower

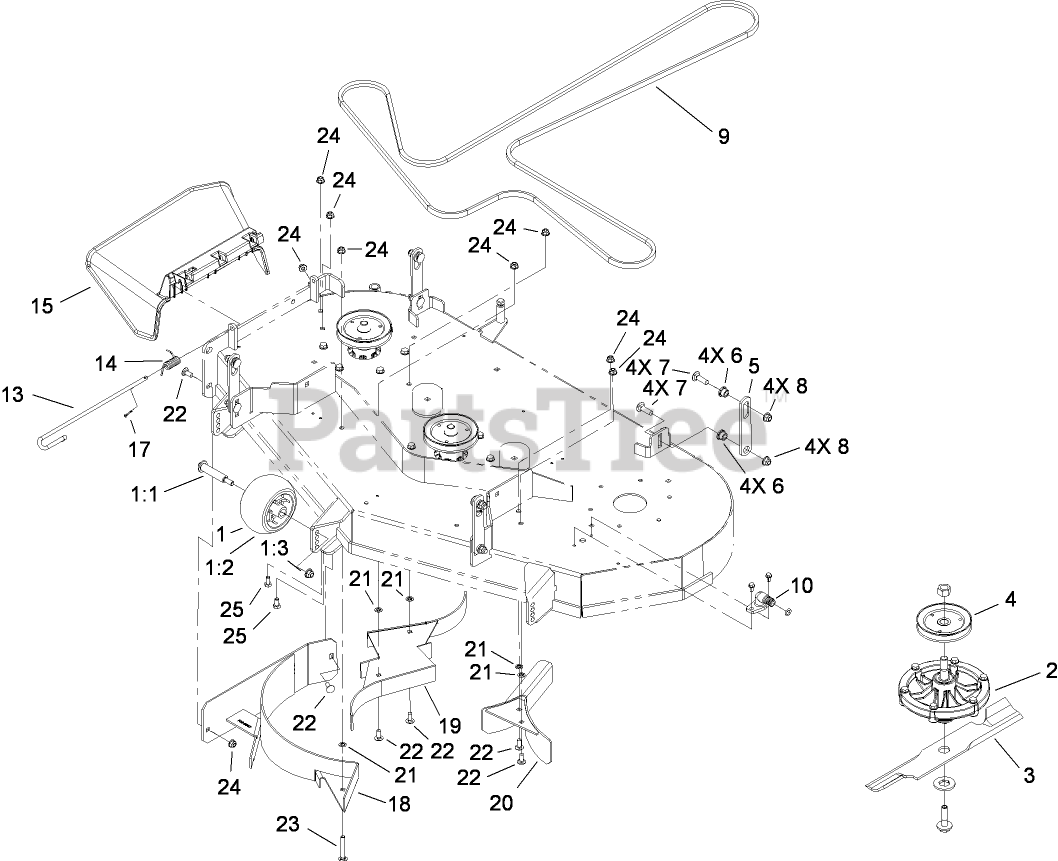

48 Inch Deck and Spindle Assembly Parts Diagram

  • Title

1

Toro 109-6388

ANTI-SCALP ROLLER KIT

$47.99

$

In Stock, Qty 8

0

1:1

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

1:2

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

1:3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 109-8744

See Supercession: 121-5681
(Superseded to 116-5712)

$222.99

$

In Stock, only 2 left!

0

3

Toro 109-6479

BLADE-MULCH

$43.99

$

Usually ships in 3-6 days

0

4

Toro 109-3747

See Supercession: 116-4875
(Superseded to 116-4875)

$84.99

$

In Stock, only 2 left!

0

5

Toro 109-3410

HANGER-DECK

$12.99

$

In Stock, only 3 left!

0

6

Toro 109-8788

BUSHING-FLANGED

$7.49

$

In Stock, Qty 20+

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-5364

BELT
(Superseded to 109-5364-SL)

$94.99

$

In Stock, Qty 10

0

10

Toro 109-6393

WASHOUT PORT KIT

$

$

Not available

13

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 3 left!

0

14

Toro 109-6886

SPRING-TORSION

$9.49

$

In Stock, Qty 8

0

15

Toro 109-5443

CHUTE-DISCHARGE

$71.99

$

Usually ships in 3-6 days

0

17

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 6

0

18

Toro 109-5981-03

RH MULCH BAFFLE ASM

$

$

Not available

19

Toro 109-6103-03

CENTER BAFFLE ASM

$

$

Not available

20

Toro 109-5976-03

LH MULCH BAFFLE ASM

$

$

Not available

21

Toro 109-5667

RING-RETAINING, BOLT

$7.99

$

In Stock, only 2 left!

0

22

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

24

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
