74813 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) Blower Housing Assembly Kohler SV820-0012 Parts Diagram

48" Titan Zero-Turn Mower

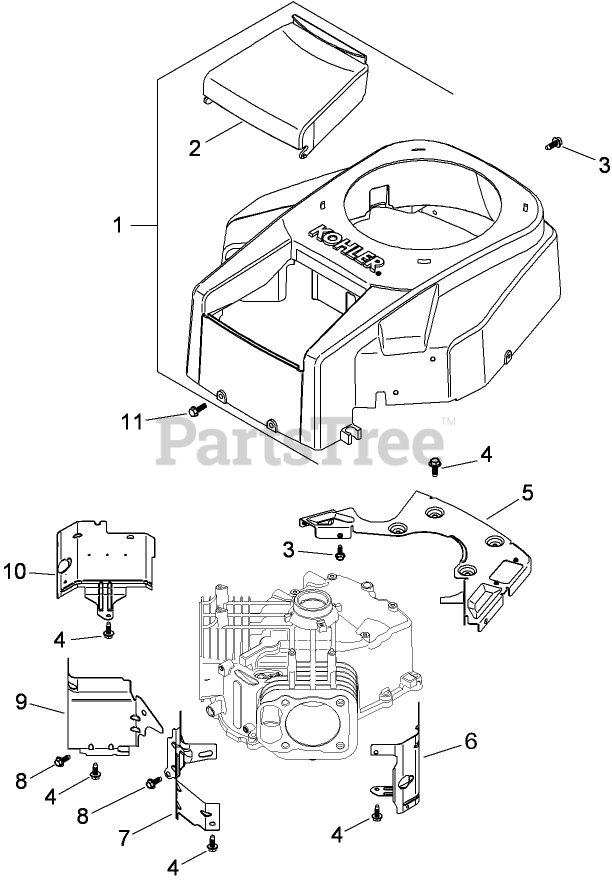

Blower Housing Assembly Kohler SV820-0012 Parts Diagram

  • Title

1

Toro 32 027 15-S

BLOWER HOUSING ASM (W/GUARD) (INCLUDES 2 and 41 037 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 32 096 09-S

COVER-CLEANER, AIR (BLACK)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 32 146 05-S

PLATE-BACKING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 32 063 12-S

BAFFLE-BARREL, CYLINDER (No.2 SIDE)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 32 063 02-S

BAFFLE-VALLEY (No.2 SIDE)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 32 063 03-S

BAFFLE-VALLEY (No.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 32 063 10-S

BAFFLE-BARREL, CYLINDER (No.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 32 113 11-S

DECAL-GUARD, FIXED

Note: Not illustrated

$

$

Currently unavailable

Toro 32 113 11-S

DECAL-GUARD, FIXED

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 41 037 10-S

NAMEPLATE-SERVICE

Note: Not illustrated

$

$

Currently unavailable
