74814 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 270000001 - 270999999) (2007) ENGINE ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

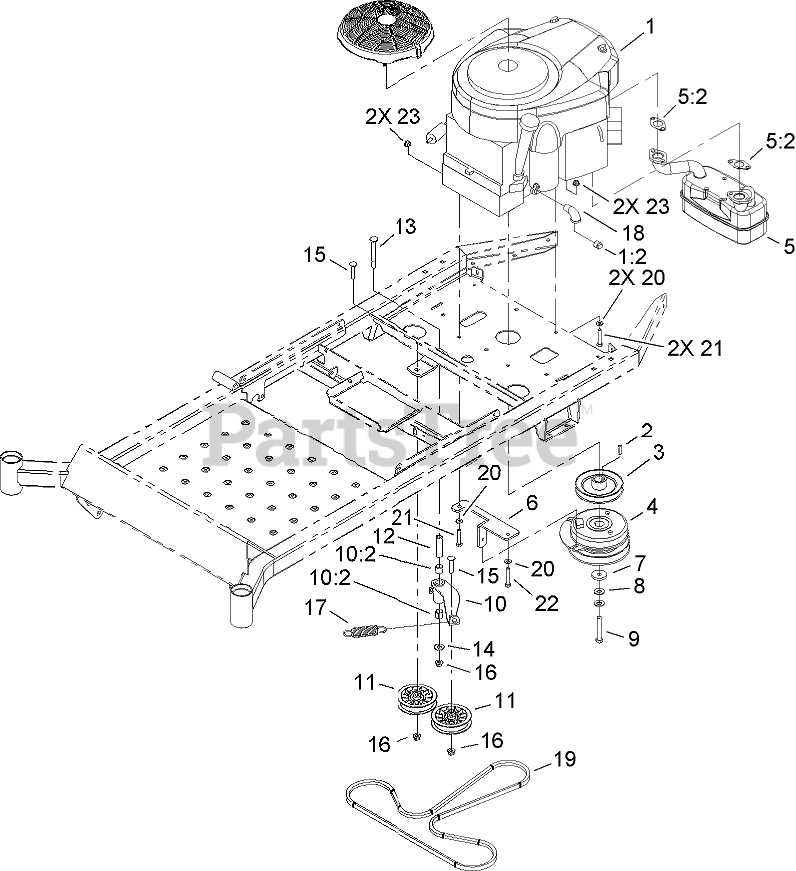

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS AND STRATTON, 44M777-0118-E1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS AND STRATTON, 44M777-0118-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:2

Toro 281-2

PLUG-PIPE, SQH

$2.49

$

Usually ships in 3-6 days

0

2

Toro 5-7280

KEY

$5.49

$

In Stock, only 2 left!

0

3

Toro 109-3386

SHEAVE-SPLIT STEEL

$58.99

$

Usually ships in 3-6 days

0

4

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

5

Toro 109-6402

MUFFLER ASM
(Superseded to 109-9760)

$435.99

$

Usually ships in 3-6 days

0

5:2

Toro 104-3226

GASKET-EXHAUST

$10.99

$

In Stock, Qty 12

0

6

Toro 109-3694-03

ANCHOR-CLUTCH
(Superseded to 109-8855-03)

$42.99

$

Usually ships in 3-6 days

0

7

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, only 1 left!

0

8

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

9

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 3 left!

0

10

Toro 109-5259

IDLER ARM ASM
(Superseded to 109-9162)

$137.99

$

Usually ships in 3-6 days

0

10:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

11

Toro 109-3397

PULLEY-IDLER, FLAT

$25.99

$

In Stock, Qty 20+

0

12

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

13

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 14

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

18

Toro 1-403124

ELBOW-90 DEG

$26.99

$

Usually ships in 3-6 days

0

19

Toro 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

20

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

21

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
