74815 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV830-0013 Parts Diagram

52" Titan Zero-Turn Mower

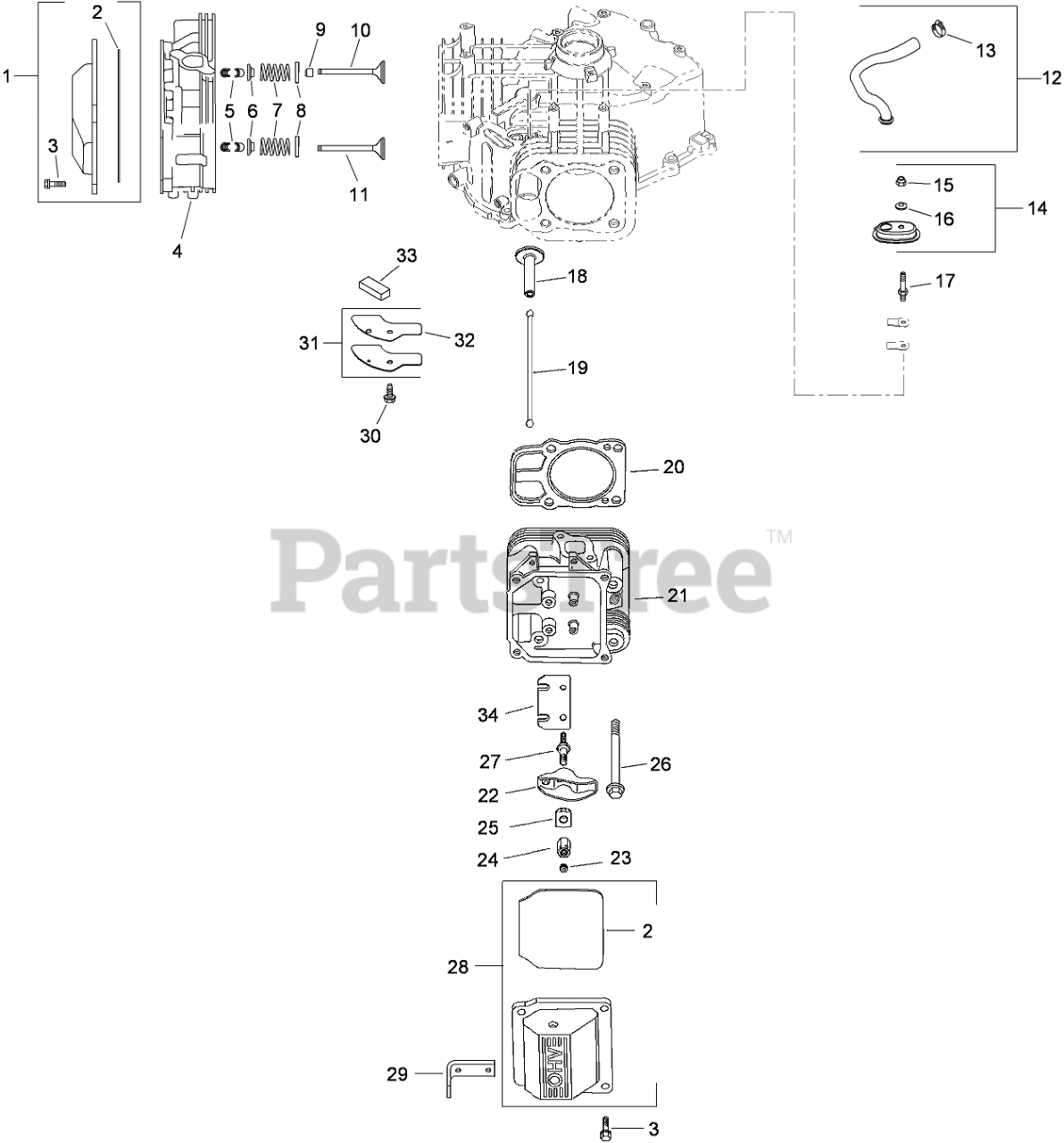

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV830-0013 Parts Diagram

  • Title

1

Kohler 24 755 141-S

PLAIN ROCKER COVER KIT (INCLUDES 2QTY 1], 3QTY 4])

Note: Obtain parts from www.kohlerplus.com

$39.99

$

In Stock, Qty 18

0

2

Kohler 24 153 30-S

O-RING (VALVE COVER)
(Superseded to 25 153 24-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

3

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Toro 32 3118 08-S

CYLINDER HEAD No.1 ASM (INCLUDES 26 QTY 4] and 20)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 14

0

6

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 7

0

7

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 20+

0

8

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 9

0

9

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 20+

0

10

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

In Stock, Qty 18

0

11

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$21.99

$

In Stock, Qty 20+

0

12

Kohler 32 326 06-S

BREATHER HOSE KIT (INCLUDES 13 QTY 1])

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, Qty 8

0

13

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 16

0

14

Kohler 32 081 02-S

BREATHER HOUSING KIT (INCLUDES 15, 16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

15

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0

16

Kohler 32 468 01-S

WASHER-SEALING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

17

Kohler 32 072 03-S

STUD-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 32 019 01-S

Tappet
(Superseded to 32 019 02-S)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, Qty 9

0

19

Kohler 32 411 04-S

ROD-PUSH

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 20+

0

20

Kohler 24 841 03-S

CYLINDER HEAD GASKET KIT (INCLUDES HEAD MOUNTING HARDWARE and 24 041 49-S, 24 153 27-S)
(Superseded to 24 841 04-S)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, Qty 20+

0

21

Kohler 32 318 06-S

CYLINDER No.2 HEAD ASM (INCLUDES 26 QTY 4] and 20)
(Superseded to 32 818 02-S)

Note: Obtain parts from www.kohlerplus.com

$198.99

$

In Stock, only 1 left!

0

22

Kohler 32 186 03-S

ARM-ROCKER

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 11

0

23

Kohler 25 100 33-S

NUT (M10X0.75 )
(Superseded to 25 100 38-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 2 left!

0

24

Kohler 25 086 128-S

SCREW-SET
(Superseded to 25 086 168-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 7

0

25

Kohler 25 599 01-S

PIVOT-ARM, ROCKER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 15

0

26

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 20+

0

27

Kohler 32 072 04-S

STUD-ROCKER

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 13

0

28

Kohler 32 096 06-S

BREATHER VALVE COVER KIT (INCLUDES 2 QTY 1])

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 3 left!

0

29

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

30

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 17

0

31

Kohler 32 096 04-S

BREATHER COVER KIT (INCLUDES 32)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

32

Kohler 32 041 01-S

GASKET-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

33

Kohler 32 050 01-S

FILTER-BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

34

Kohler 32 146 09-S

PLATE-GUIDE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 14

0

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

Kohler 24 153 27-S

O-RING (INTAKE PORT)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 16

0

Kohler 24 153 27-S

O-RING (INTAKE PORT)

Note: Not illustrated

$3.99

$

In Stock, Qty 16

0

Kohler 32 755 03-S

CYLINDER HEAD HARDWARE KIT (SERVICES 1 HEAD-QTYS LISTED ARE FOR BOTH HEADS) (INCLUDES 5-11, 19, 22, 25, 34)

Note: Not illustrated

$93.99

$

In Stock, only 1 left!

0

Kohler 32 755 03-S

CYLINDER HEAD HARDWARE KIT (SERVICES 1 HEAD-QTYS LISTED ARE FOR BOTH HEADS) (INCLUDES 5-11, 19, 22, 25, 34)

Note: Obtain parts from www.kohlerplus.com

$93.99

$

In Stock, only 1 left!

0
