74815 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) LH HYDRO TRANSMISSION ASSEMBLY NO. 109-3372 Parts Diagram

52" Titan Zero-Turn Mower

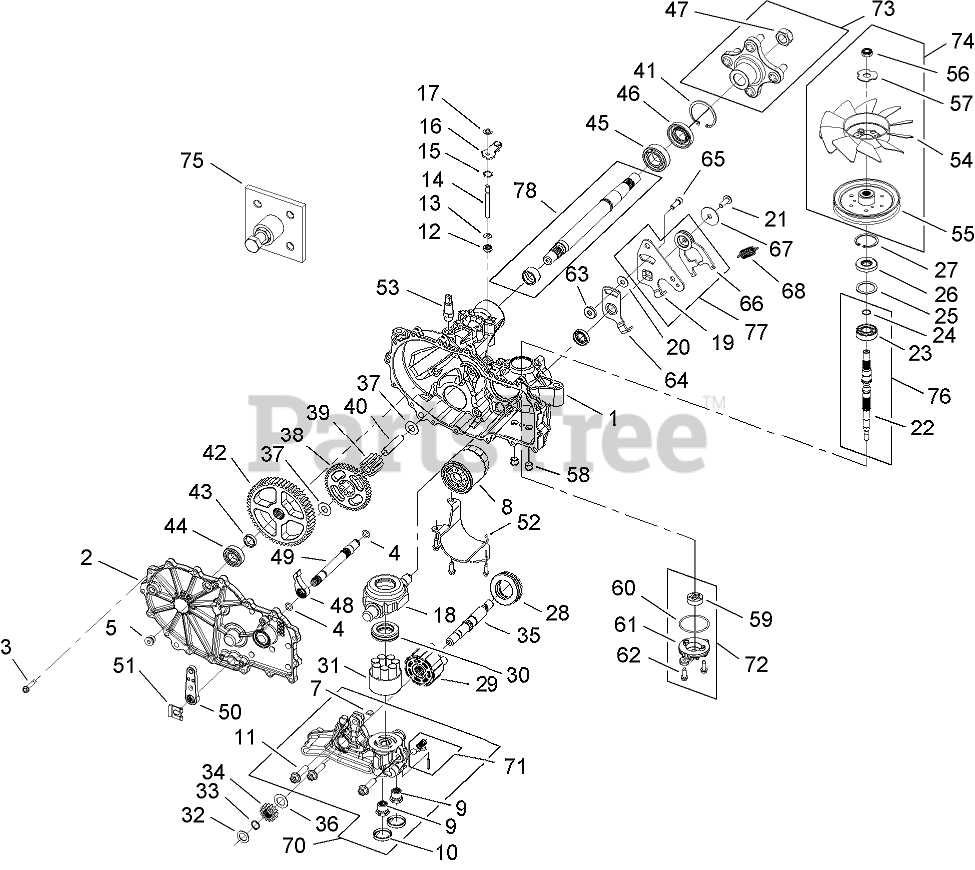

LH HYDRO TRANSMISSION ASSEMBLY NO. 109-3372 Parts Diagram

  • Title

1

Toro 114-8471

LH MAIN HOUSING KIT

$

$

Not available

2

Toro 114-8472

LH SIDE COVER KIT

$

$

Not available

3

Toro 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

Usually ships in 3-6 days

0

4

Toro 114-1678

O-RING

$6.49

$

Usually ships in 3-6 days

0

5

Toro 112-9850

PLUG
(Superseded to 104-2189)

$27.99

$

Usually ships in 3-6 days

0

6

Toro 114-1679

LOCTITE 590-GASKET MATERIAL
(Superseded to 104-2147)

Note: Not illustrated

$117.99

$

Usually ships in 3-6 days

0

7

Toro 114-1680

PLATE-BYPASS

$7.99

$

Usually ships in 3-6 days

0

8

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$29.99

$

In Stock, Qty 20+

0

9

Toro 114-1682

CHECK PLUG

$

$

Not available

10

Toro 114-1683

SEAL-PLUG

$21.99

$

Usually ships in 3-6 days

0

11

Toro 114-1684

SCREW-HFHC

$12.99

$

Usually ships in 3-6 days

0

12

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$7.49

$

In Stock, only 2 left!

0

13

Toro 106-8677

RING-RETAINING, EXTERNAL

$9.49

$

In Stock, only 2 left!

0

14

Toro 114-1685

ROD-BYPASS

$37.99

$

Usually ships in 3-6 days

0

15

Toro 106-8679

RING-RETAINING, INTERNAL

$10.99

$

Usually ships in 3-6 days

0

16

Toro 107-2490

ARM-BYPASS

$61.99

$

Usually ships in 3-6 days

0

17

Toro 106-8681

RING-RETAINING, EXTERNAL

$9.49

$

Usually ships in 3-6 days

0

18

Toro 104-5304

SWASHPLATE-TRUNNION

$206.99

$

Usually ships in 3-6 days

0

19

Toro 114-1686

ARM-CONTROL, RH

$

$

Not available

20

Toro 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

21

Toro 107-2488

SCREW

$14.99

$

In Stock, only 1 left!

0

22

Toro 114-1687

SHAFT-INPUT

$

$

Not available

23

Toro 103-7441

BEARING-SHAFT, INPUT
(Superseded to 104-5311)

$46.99

$

In Stock, Qty 5

0

24

Toro 104-5307

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

25

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

26

Toro 104-5310

SEAL-LIP

$38.99

$

In Stock, only 2 left!

0

27

Toro 104-5309

RING-RETAINING

$13.99

$

In Stock, only 4 left!

0

28

Toro 114-1688

BEARING-THRUST

$

$

Not available

29

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$290.99

$

Usually ships in 3-6 days

0

30

Toro 94-6922

BEARING-THRUST

$66.99

$

In Stock, only 2 left!

0

31

Toro 110-8561

PUMP BLOCK ASM

$406.99

$

Usually ships in 3-6 days

0

32

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

33

Toro 104-5340

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

34

Toro 114-1690

GEAR-14T

$14.99

$

Usually ships in 3-6 days

0

35

Toro 114-1691

SHAFT-MOTOR

$189.99

$

Usually ships in 3-6 days

0

36

Toro 104-5360

WASHER

$8.49

$

Usually ships in 3-6 days

0

37

Toro 94-1933

WASHER

$6.99

$

Usually ships in 3-6 days

0

38

Toro 114-1692

GEAR-45T

$64.99

$

Usually ships in 3-6 days

0

39

Toro 114-1693

GEAR-11T

$31.99

$

Usually ships in 3-6 days

0

40

Toro 104-5329

PIN-JACKSHAFT

$119.99

$

Usually ships in 3-6 days

0

41

Toro 104-2169

RING-RETAINING

$20.99

$

Usually ships in 3-6 days

0

42

Toro 114-1694

GEAR-54T

$155.99

$

Usually ships in 3-6 days

0

43

Toro 114-1695

SPACER
(Superseded to 120-7975)

$6.99

$

Usually ships in 3-6 days

0

44

Toro 114-1696

BEARING-BALL

$58.99

$

Usually ships in 3-6 days

0

45

Toro 104-2143

BEARING-BALL

$43.99

$

Usually ships in 3-6 days

0

46

Toro 104-2144

SEAL

$52.99

$

In Stock, only 2 left!

0

47

Toro 105-1895

NUT

$51.99

$

Usually ships in 3-6 days

0

48

Toro 114-1697

PAWL-BRAKE

$18.99

$

Usually ships in 3-6 days

0

49

Toro 114-1698

SHAFT-BRAKE, INBOARD

$155.99

$

Usually ships in 3-6 days

0

50

Toro 114-1699

HANDLE-BRAKE

$25.99

$

Usually ships in 3-6 days

0

51

Toro 114-8450

CLIP-RETAINING

$5.99

$

In Stock, Qty 12

0

52

Toro 114-8473

GUARD-FILTER, LH
(Superseded to 120-7979)

$40.99

$

In Stock, only 1 left!

0

53

Toro 109-3278

ADAPTER-STRAIGHT

$139.99

$

Usually ships in 3-6 days

0

53:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

Note: Not illustrated

$3.49

$

In Stock, Qty 20+

0

54

Toro 114-8453

FAN-7.0
(Superseded to 135-7347)

$101.99

$

In Stock, only 2 left!

0

55

Toro 114-8454

PULLEY-5.0 INCH
(Superseded to 135-7347)

$101.99

$

In Stock, only 2 left!

0

56

Toro 105-1875

NUT-LOCK

$8.49

$

Usually ships in 3-6 days

0

57

Toro 107-9122

WASHER-SLOTTED
(Superseded to 116-9708)

$5.49

$

Usually ships in 3-6 days

0

58

Toro 114-8455

TUBE-CONNECTING

$14.99

$

In Stock, only 2 left!

0

59

Toro 104-2122

GEROTOR ASM

$130.99

$

Usually ships in 3-6 days

0

60

Toro 109-3540

O RING-SEAL

$6.99

$

In Stock, Qty 20+

0

61

Toro 114-8457

COVER-CHARGE PUMP

$95.99

$

In Stock, Qty 7

0

62

Toro 104-2120

SCREW

$8.49

$

In Stock, only 1 left!

0

63

Toro 114-8458

SPACER

$44.99

$

Usually ships in 3-6 days

0

64

Toro 114-8474

ARM-NEUTRAL, LEFT

$42.99

$

Usually ships in 3-6 days

0

65

Toro 106-8682

Screw-Sh

$9.49

$

Usually ships in 3-6 days

0

66

Toro 114-8475

RTN CCW ASM

$

$

Not available

67

Toro 114-8478

WASHER

$

$

Not available

68

Toro 109-5592

SPRING-EXTENSION

$19.99

$

In Stock, only 2 left!

0

69

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

$100.99

$

In Stock, only 3 left!

0

70

Toro 114-8476

LH CENTER SECTION KIT

$554.99

$

Usually ships in 3-6 days

0

71

Toro 114-8464

CHARGE RELIEF KIT

$25.99

$

Usually ships in 3-6 days

0

72

Toro 114-8465

CHARGE KIT

$129.99

$

In Stock, only 1 left!

0

73

Toro 109-5939

HUB KIT

$115.99

$

In Stock, only 4 left!

0

73:2

HUB W/STUDS

Note: Not serviced separately

$

$

Not available

74

Toro 109-5938

FAN AND PULLEY KIT
(Superseded to 135-7347)

$101.99

$

In Stock, only 2 left!

0

74:2

Pulley

Note: Not serviced separately

$

$

Not available

74:3

LOCKNUT,HEX

Note: Not serviced separately

$

$

Not available

74:4

Washer

Note: Not serviced separately

$

$

Not available

75

Toro 114-8467

PULLER-HUB, 4 BOLT
(Superseded to 130-8482)

$448.99

$

Usually ships in 3-6 days

0

76

Toro 114-8468

INPUT SHAFT KIT

$193.99

$

Usually ships in 3-6 days

0

77

Toro 114-8477

RTN CCW KIT

$

$

Not available

78

Toro 114-8470

AXLE SHAFT KIT

$295.99

$

Usually ships in 3-6 days

0
