74820 (ZX 5000) - Toro 50" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) 50 Inch Deck Spindle and Blade Assembly Parts Diagram

50" Titan Zero-Turn Mower

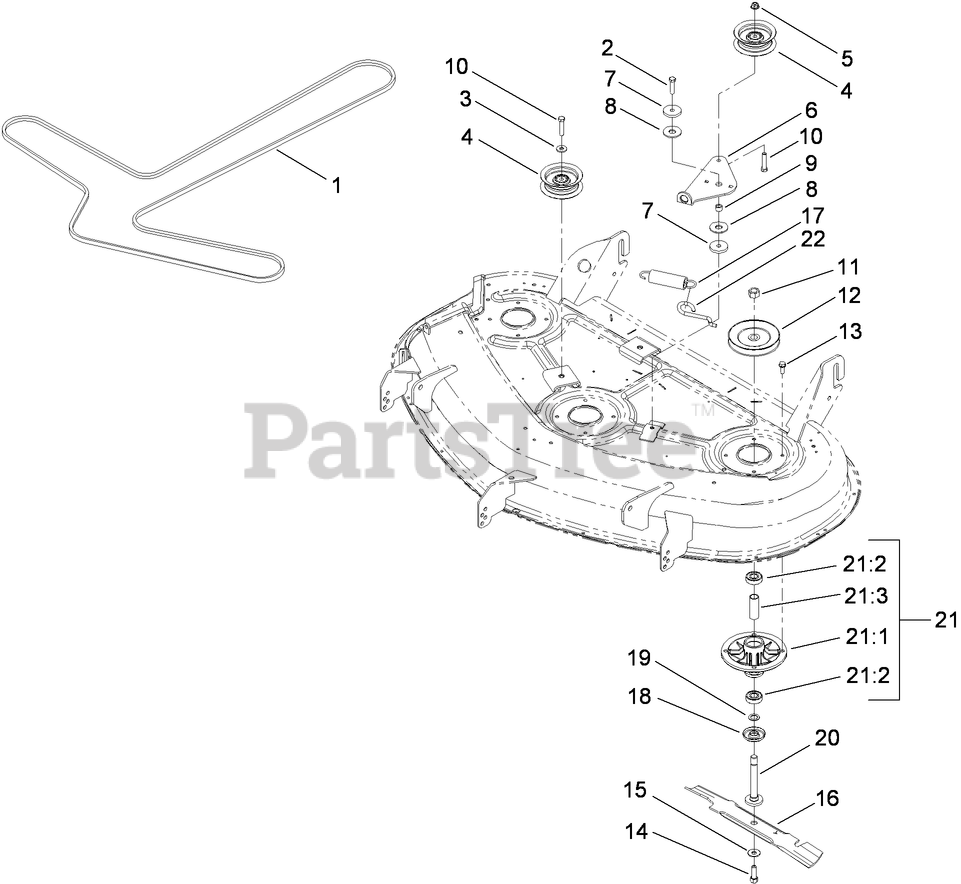

50 Inch Deck Spindle and Blade Assembly Parts Diagram

  • Title

1

Toro 115-2649

V-BELT

$272.99

$

Usually ships in 3-6 days

0

2

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 13

0

4

Toro 106-2175

See Supercession: 132-9420
(Superseded to 132-9420)

$36.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 114-8540

ARM-IDLER

$22.99

$

In Stock, only 2 left!

0

7

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 7

0

8

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

9

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

12

Toro 110-6865

See Supercession: 125-5575
(Superseded to 125-5575)

$99.99

$

In Stock, only 2 left!

0

13

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 117-1156-03

BLADE-HI FLO, 17.50 INCH

$36.99

$

In Stock, Qty 6

0

17

Toro 1-603414

SPRING-EXTENSION

$23.99

$

In Stock, only 2 left!

0

18

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 16

0

19

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 18

0

20

Toro 117-1192

SHAFT-SPINDLE

$53.99

$

In Stock, Qty 15

0

21

Toro 107-9161

SPINDLE ASM

$102.99

$

In Stock, only 2 left!

0

21:1

Toro 88-4510

HOUSING-SPINDLE

$99.99

$

In Stock, Qty 13

0

21:2

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

21:3

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

22

Toro 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.99

$

In Stock, only 2 left!

0
