74820 (ZX 5000) - Toro 50" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) ENGINE ASSEMBLY Parts Diagram

50" Titan Zero-Turn Mower

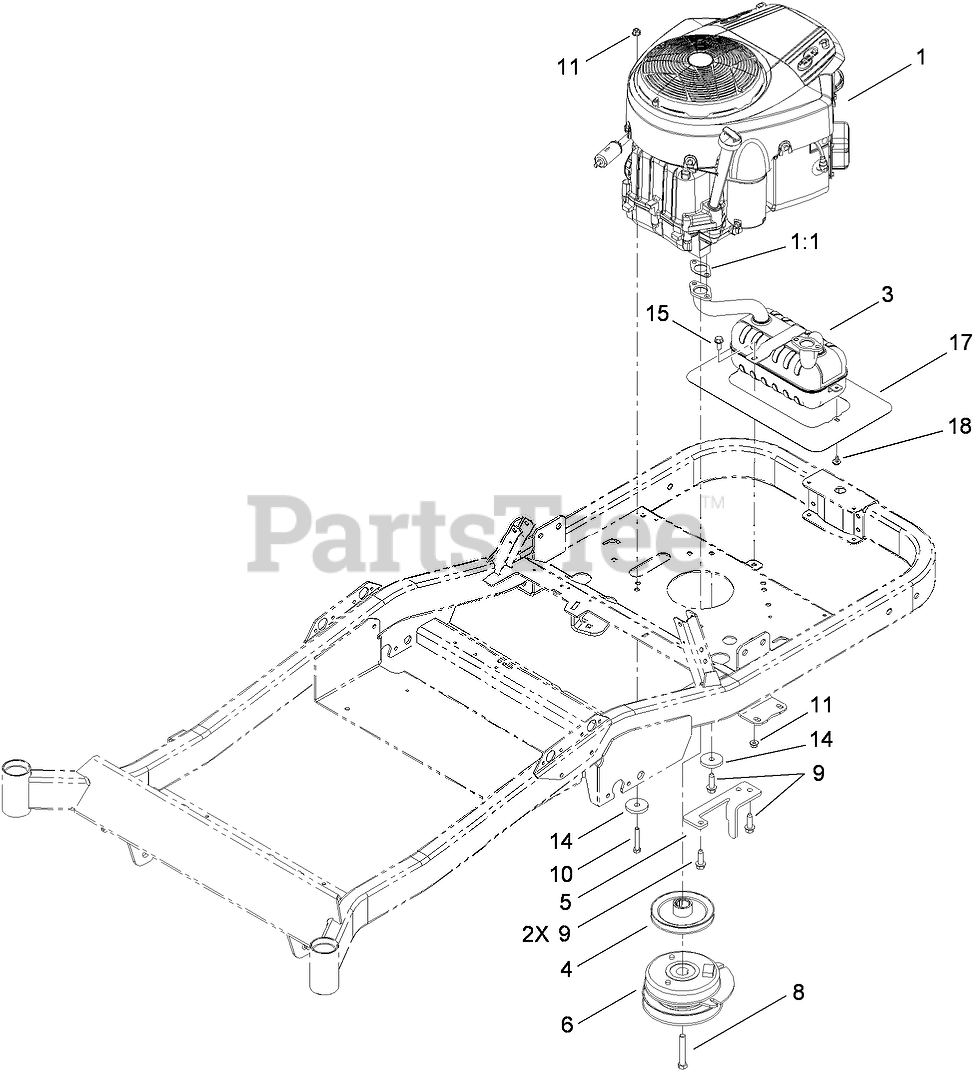

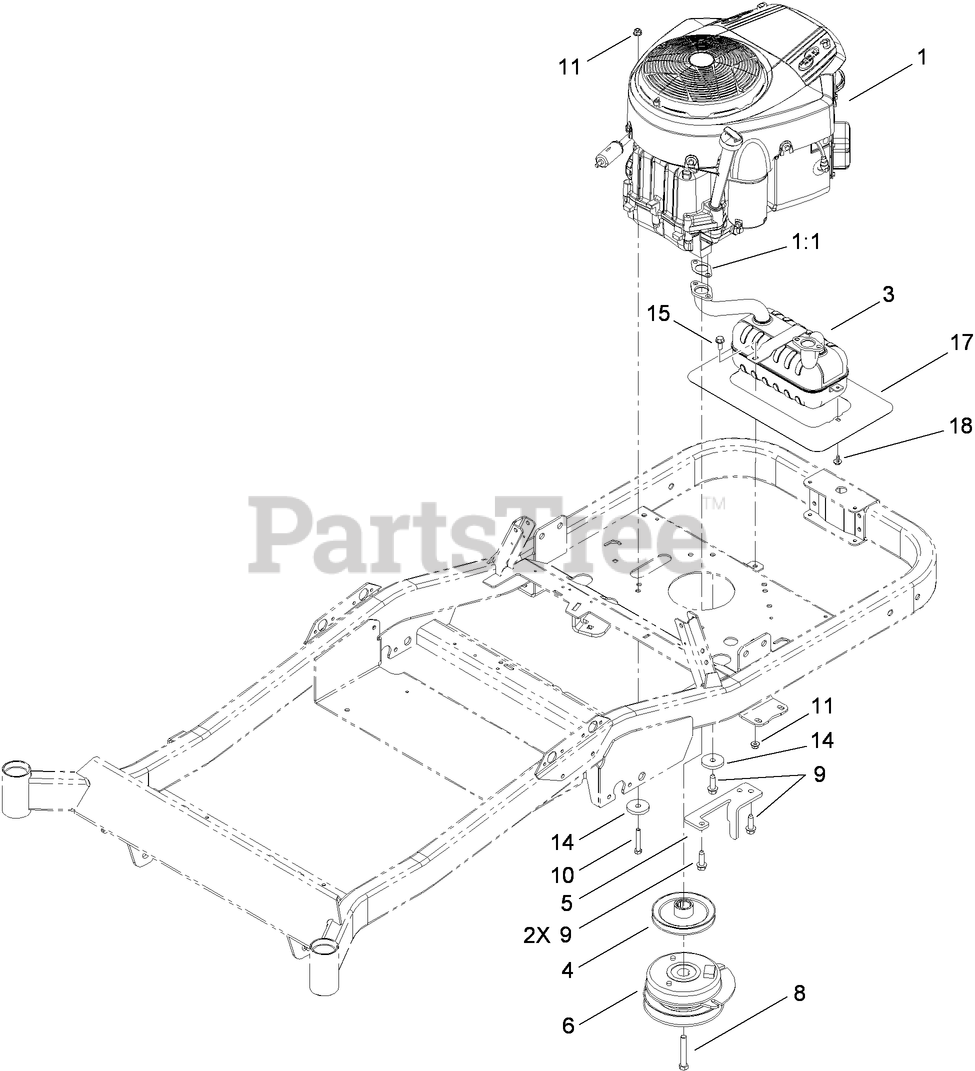

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 22HP PROFESSIONAL

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 22HP PROFESSIONAL

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Toro 104-3226

GASKET-EXHAUST

$12.99

$

In Stock, Qty 10

0

3

Toro 117-7464

MUFFLER-BRIGGS TWIN

$

$

Not available

4

Toro 115-2568

PULLEY-ENGINE
(Superseded to 125-5576)

$126.99

$

Usually ships in 3-6 days

0

5

Toro 117-1269-03

BRACKET-STOP, PTO

$36.99

$

Usually ships in 3-6 days

0

6

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$607.99

$

Usually ships in 3-6 days

0

8

Toro 3212-11

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

9

Toro 32144-109

SCREW-TAPTITE

$5.49

$

In Stock, only 3 left!

0

10

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 110-9981

WASHER-PLAIN

$15.99

$

In Stock, Qty 20+

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Toro 117-5331-03

SHIELD-HEAT

$

$

Not available

18

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0
