74823 (ZX 6000) - Toro 60" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV830-0016 Parts Diagram

60" Titan Zero-Turn Mower

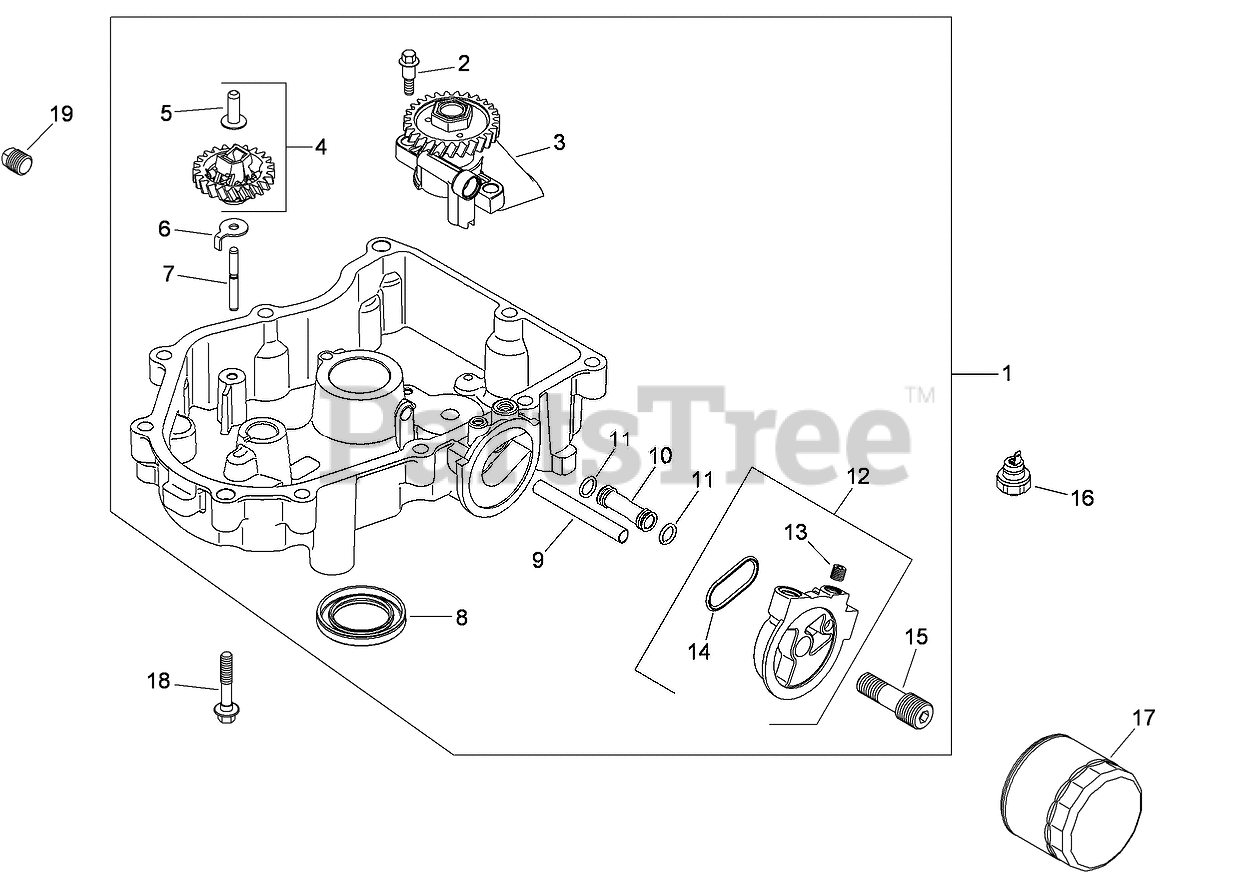

OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV830-0016 Parts Diagram

  • Title

1

Kohler 32 199 07-S

OIL PAN ASM (INCLUDES REF 2, 5-15)
(Superseded to 32 199 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 32 086 01-S

SCREW-SHOULDER, THD FRM (M6x1.0x26.5)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

3

Kohler 32 393 10-S

OIL PUMP ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 24 043 12-S

GOVERNOR GEAR W/PIN KIT (INCLUDES REF 5)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, only 1 left!

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 13

0

6

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

8

Kohler 25 032 06-S

SEAL-OIL

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

9

Kohler 32 123 01-S

TUBE-FEED, OIL (FILTER TO PAN)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 32 123 03-S

TUBE-FEED, OIL (PAN TO FILTER)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 24 153 01-S

O-RING (OIL PICK-UP)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

12

Kohler 32 029 16-S

ADAPTER OIL FILTER KIT (INCLUDES REF 13, 14)
(Superseded to 32 029 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 3 left!

0

14

Kohler 32 153 04-S

O-RING (OIL FILTER ADAPTER)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

15

Kohler 32 136 03-S

NIPPLE-FILTER, OIL

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

16

Kohler 25 099 27-S

SWITCH-PRESSURE, OIL

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, Qty 7

0

17

Kohler 25 050 34-S

FILTER-OIL
(Superseded to 52 050 02-S1)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, Qty 20+

0

18

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0

19

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 13

0
