74823 (ZX 6000) - Toro 60" Titan Zero-Turn Mower (SN: 290000001 - 290999999) (2009) Starter Assembly Kohler SV830-0016 Parts Diagram

60" Titan Zero-Turn Mower

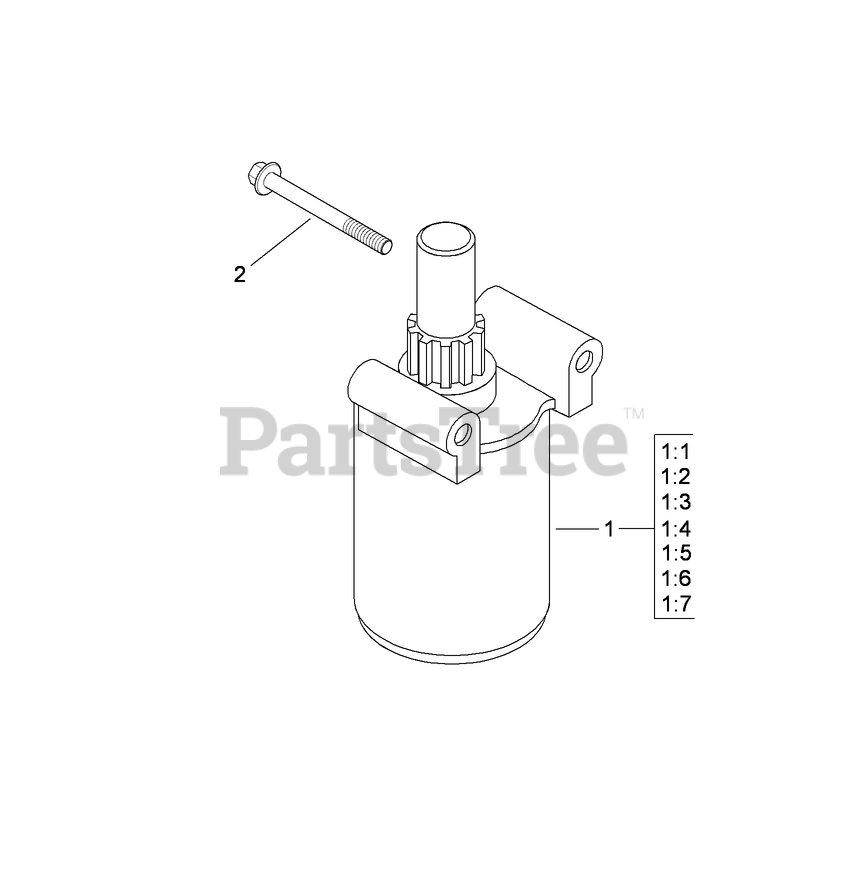

Starter Assembly Kohler SV830-0016 Parts Diagram

  • Title

1

Toro 32 098 03-S

STARTER ASM (INCLUDES REF 2:1, 2:2, 2:3, 2:4)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:1

Toro 12 755 39-S

Drive Kit (INCLUDES 4, 5)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:2

Toro 12 755 38-S

Drive Parts Kit (INCLUDES 5)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:3

Toro 32 141 01-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:4

Toro 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:5

Toro 12 243 04-S

COMMUTATOR-CAP, END

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:6

Toro 32 211 01-S

BOLT-THRU

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

1:7

Toro 32 227 01-S

CAP-END, DRIVE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro M-851080-S

SCREW-FLANGE (M8X1.25X80)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
