74848 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 316000001 - 316999999) (2016) 54 INCH DECK ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

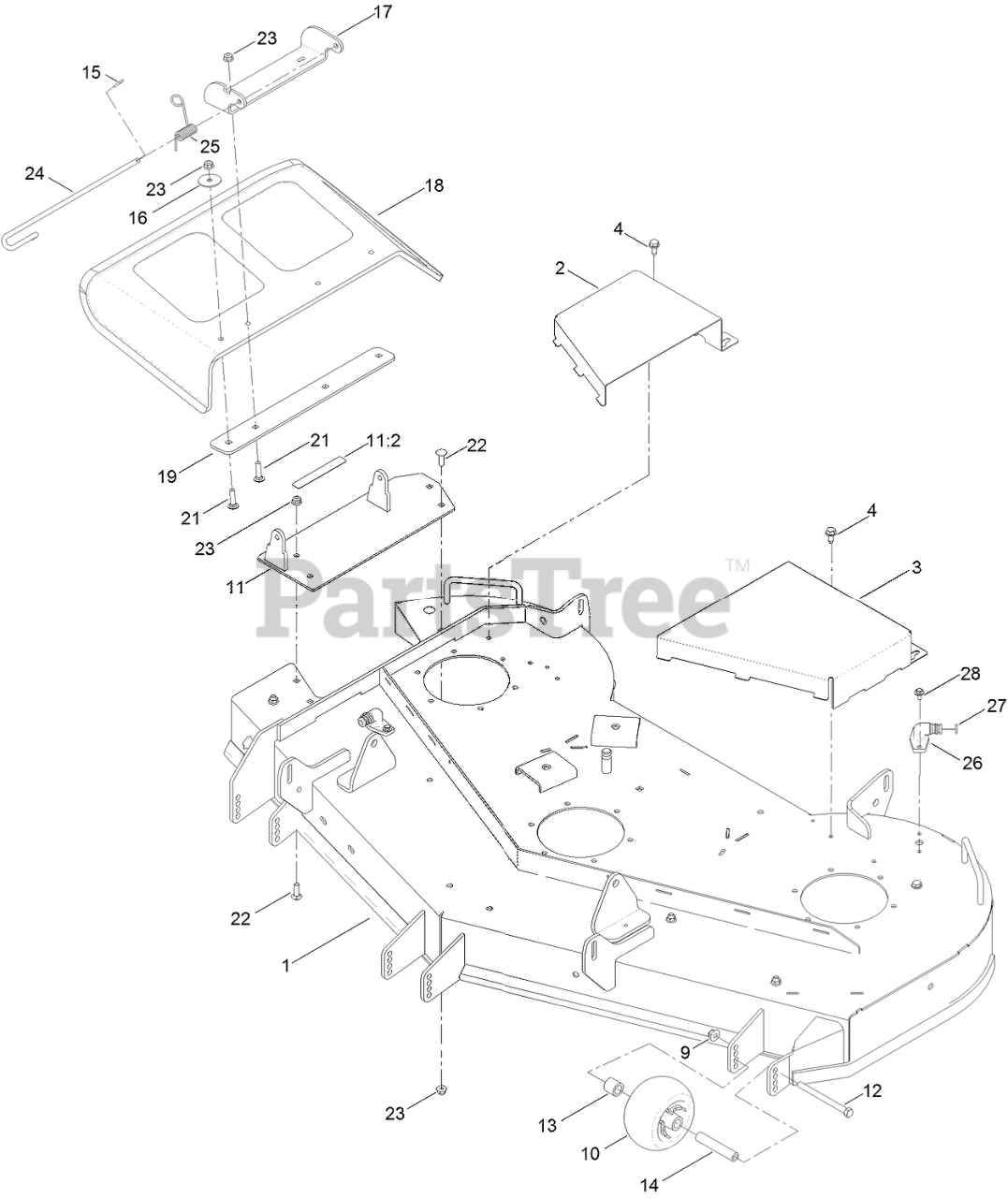

54 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-4141

54 INCH DECK ASM

$2291.99

$

Usually ships in 3-6 days

0

2

Toro 131-4051-05

COVER-BELT, RH

$55.99

$

In Stock, only 2 left!

0

3

Toro 131-4050-05

COVER-BELT, LH

$55.99

$

In Stock, only 2 left!

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

11

Toro 130-0763

PIVOT-DEFLECTOR

$96.99

$

Usually ships in 3-6 days

0

11:2

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

12

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

13

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

In Stock, Qty 6

0

14

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 8

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 15

0

16

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 10

0

17

Toro 114-1648-05

BRACKET-DEFLECTOR, UPPER

$47.99

$

Usually ships in 3-6 days

0

18

Toro 117-1270

DEFLECTOR

$83.99

$

In Stock, only 2 left!

0

19

Toro 115-5048-03

PLATE-DEFLECTOR

$46.99

$

In Stock, only 1 left!

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 16

0

24

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 4 left!

0

25

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, only 2 left!

0

26

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 8

0

27

Toro 46-6290

O-RING

$2.99

$

In Stock, only 1 left!

0

28

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0
