74855 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 314000001 - 314999999) (2014) Deck Lift Assembly Parts Diagram

48" Titan Zero-Turn Mower

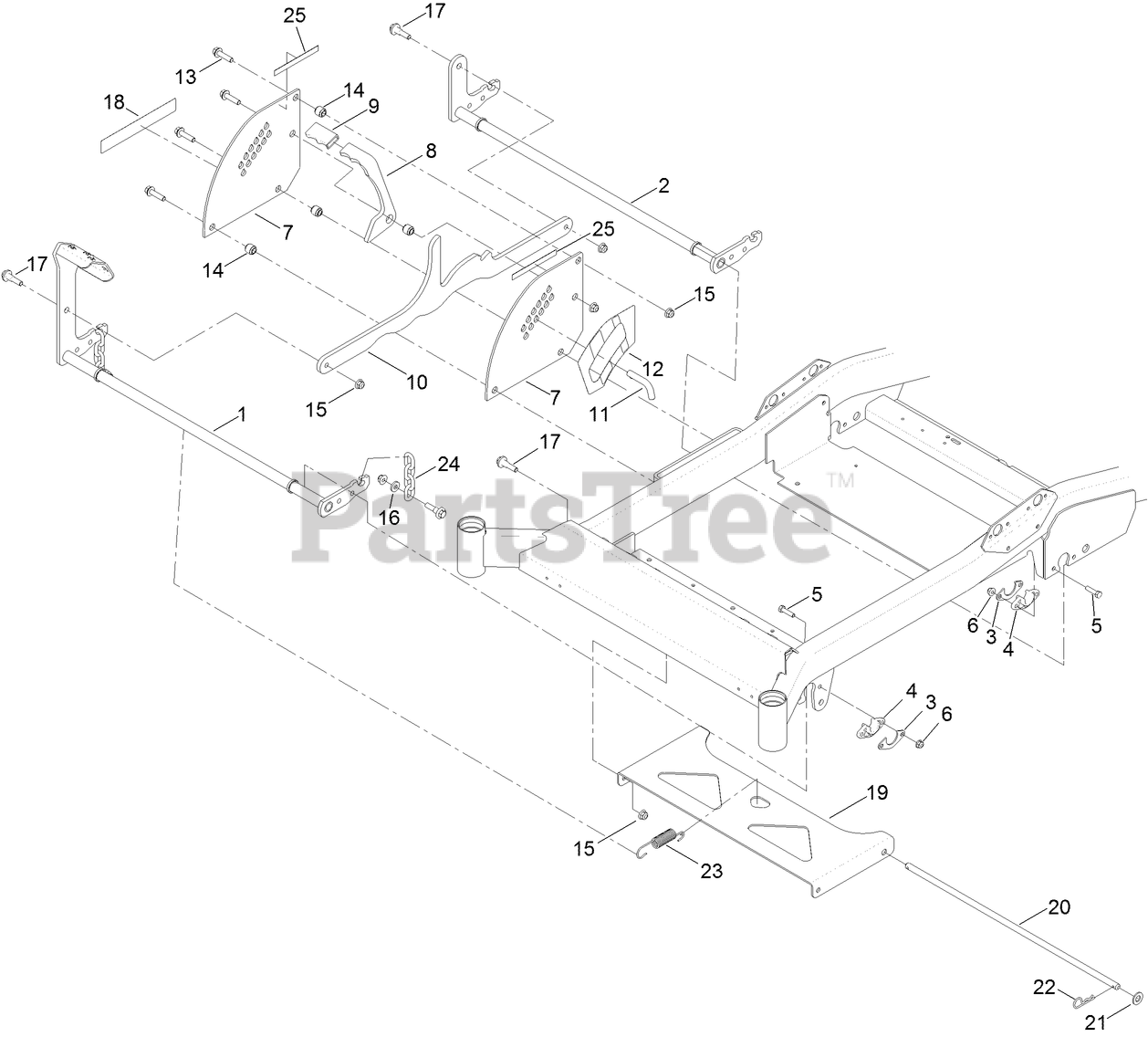

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 130-0657-03

See Supercession: 131-4058-03
(Superseded to 131-4058-03)

$209.99

$

Usually ships in 3-6 days

0

2

Toro 130-0658-03

See Supercession: 131-4059-03
(Superseded to 131-4059-03)

$1034.99

$

In Stock, only 1 left!

0

3

Toro 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 9

0

4

Toro 115-5065

BUSHING-FLANGE

$8.49

$

In Stock, only 3 left!

0

5

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 127-3389-03

PLATE-DECK, LIFT

$59.99

$

Usually ships in 3-6 days

0

8

Toro 127-3391

LOCK-TRANSPORT, HOC

$36.99

$

Usually ships in 3-6 days

0

9

Toro 116-4312

GRIP-FLAT

$3.99

$

Usually ships in 3-6 days

0

10

Toro 127-3390-03

LINK-HOC

$113.99

$

Usually ships in 3-6 days

0

11

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 15

0

12

Toro 130-0654

DECAL-HOC

$17.99

$

Usually ships in 3-6 days

0

13

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

14

Toro 116-4313

SPACER-STEP, DOUBLE

$5.49

$

Usually ships in 3-6 days

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 9

0

17

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

18

Toro 130-0785

DECAL

$

$

Not available

19

Toro 127-3329-01

PAN-DECK, PIVOT

$94.99

$

Usually ships in 3-6 days

0

20

Toro 127-3399

ROD-DECK, PIVOT

$29.99

$

In Stock, only 1 left!

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 12

0

23

Toro 115-9652

SPRING-EXTENSION

$14.99

$

In Stock, only 1 left!

0

24

Toro 130-0668

CHAIN-DECKLIFT

$8.49

$

Usually ships in 3-6 days

0

25

Toro 130-0734

PAD-RUBBER

$2.99

$

Usually ships in 3-6 days

0
