74871 (MX 4880) - Toro 48" Titan Zero-Turn Mower (SN: 311000001 - 311999999) (2011) 48 INCH DECK ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

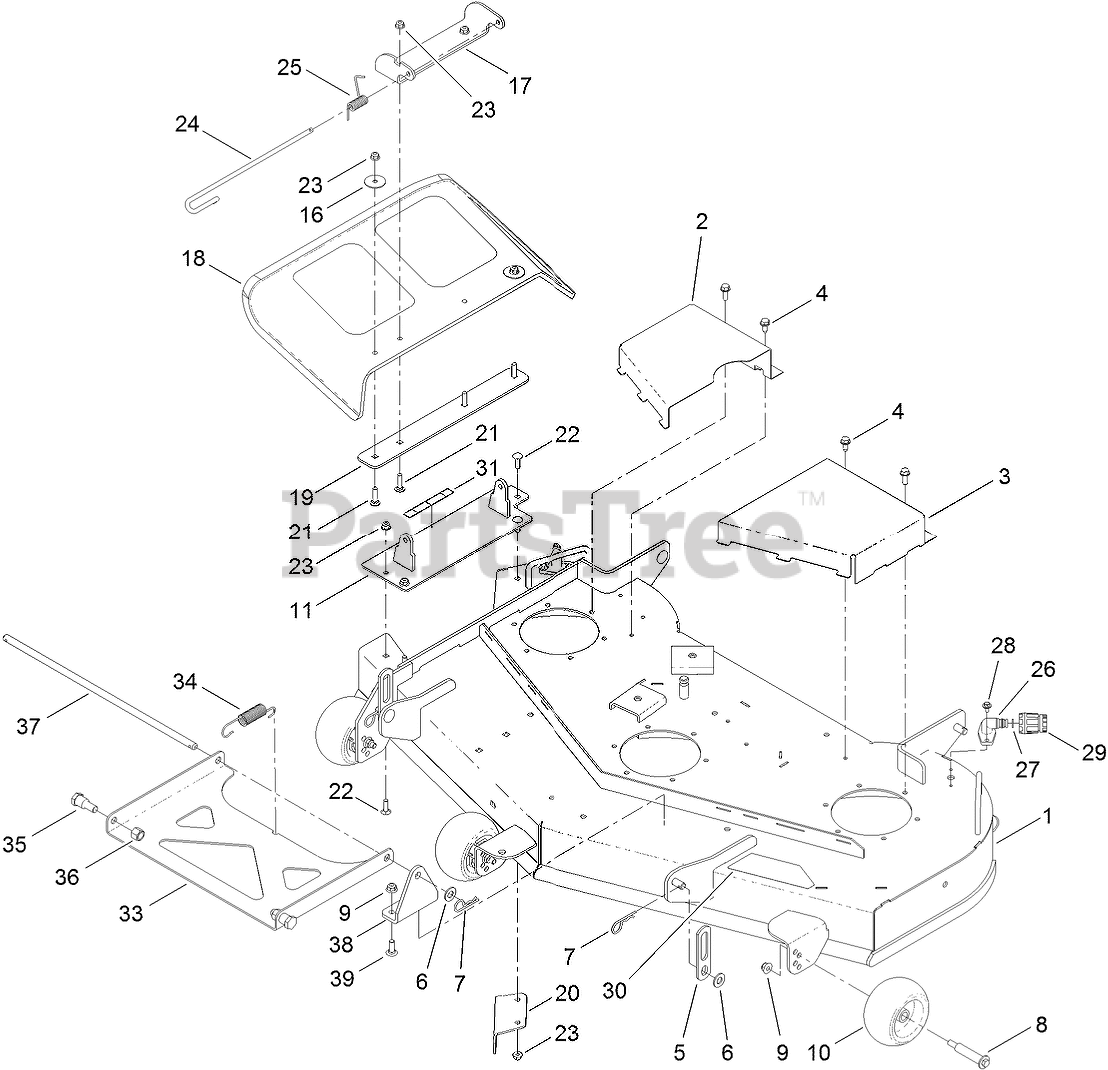

48 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 120-7116

48 INCH DECK AND DECAL ASM

$

$

Not available

2

Toro 117-7396-03

COVER-BELT, RH
(Superseded to 117-7396-05)

$52.99

$

Usually ships in 3-6 days

0

3

Toro 117-7397-03

COVER-BELT, LH
(Superseded to 117-7397-05)

$52.99

$

In Stock, only 2 left!

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

5

Toro 119-8949

LINK-LIFT

$17.99

$

Usually ships in 3-6 days

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 15

0

8

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

11

Toro 117-7367-03

PLATE

$100.99

$

Usually ships in 3-6 days

0

16

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, only 4 left!

0

17

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$63.99

$

In Stock, only 2 left!

0

18

Toro 117-1270

DEFLECTOR

$85.99

$

In Stock, only 2 left!

0

19

Toro 115-5048-03

PLATE-DEFLECTOR

$47.99

$

In Stock, only 1 left!

0

20

Toro 117-7418-03

BAFFLE-CUTOFF

$23.99

$

Usually ships in 3-6 days

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

24

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 3 left!

0

25

Toro 115-9641

SPRING-TORSION

$17.99

$

Usually ships in 3-6 days

0

26

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 8

0

27

Toro 46-6290

O-RING

$2.99

$

In Stock, only 2 left!

0

28

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

29

Toro 95-3270

CONNECTOR-HOSE

$26.99

$

In Stock, Qty 9

0

30

Toro 119-3382

DECAL-DECK

$13.99

$

Usually ships in 3-6 days

0

31

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 17

0

33

Toro 115-5027-01

PAN-PIVOT, DECK

$196.99

$

Usually ships in 3-6 days

0

34

Toro 115-9652

SPRING-EXTENSION

$14.99

$

In Stock, only 1 left!

0

35

Toro 94-5823

BOLT-SHOULDER, HH
(Superseded to 130-8185)

$12.99

$

In Stock, only 4 left!

0

36

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 115-5030

ROD-DECK, PIVOT

$34.99

$

Usually ships in 3-6 days

0

38

Toro 119-8946-01

BRACKET-PIVOT, FRONT

$46.99

$

Usually ships in 3-6 days

0

39

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0
