74872 (MX 5480) - Toro 54" Titan Zero-Turn Mower (SN: 313000001 - 313999999) (2013) Electrical Assembly Parts Diagram

54" Titan Zero-Turn Mower

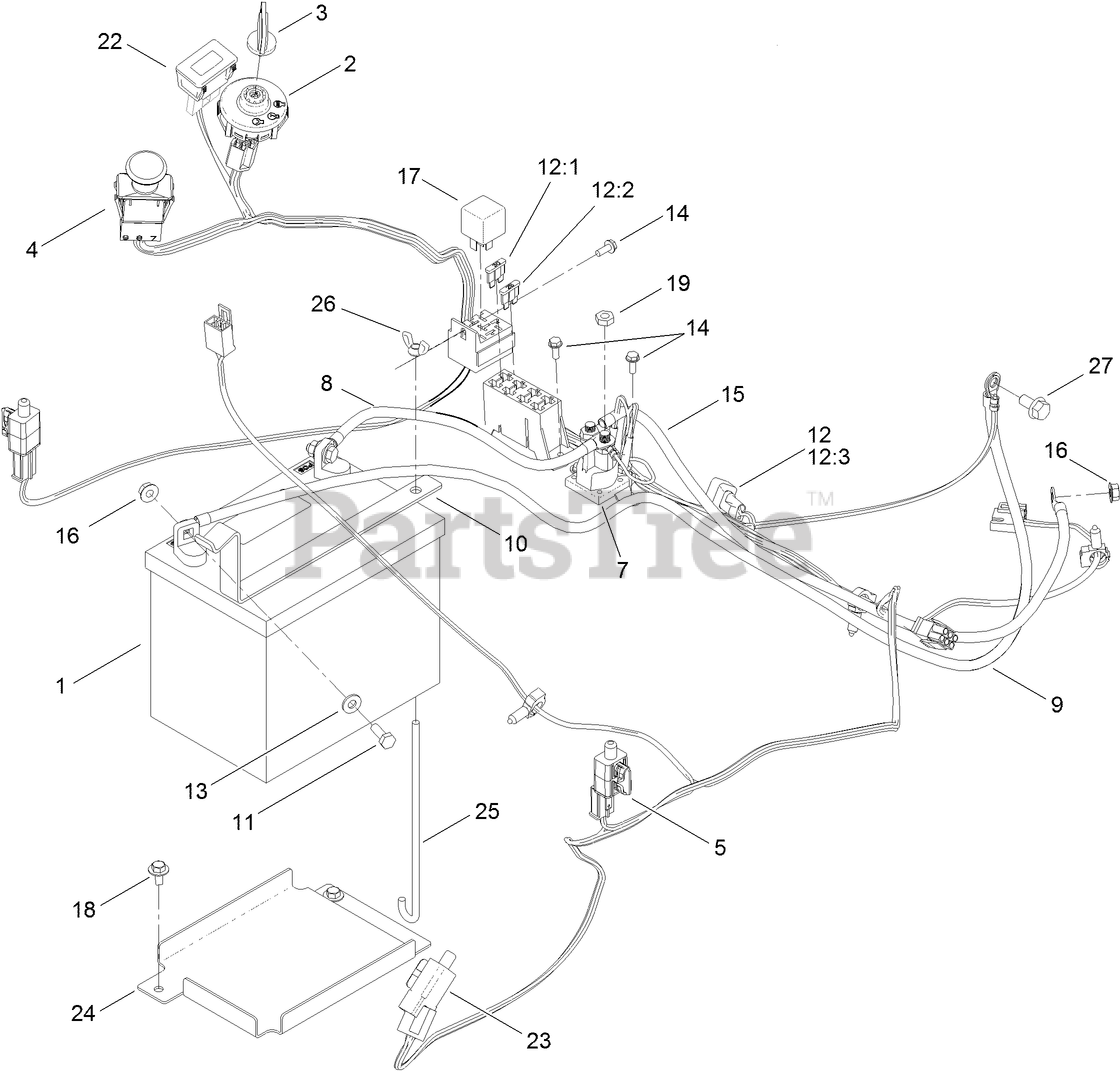

Electrical Assembly Parts Diagram

  • Title

1

Toro 105-1692

BATTERY

$

$

Not available

2

Toro 117-2221

See Supercession: 137-4100
(Superseded to 137-4100)

$30.99

$

In Stock, Qty 20+

0

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 7

0

5

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Toro 117-1197

SOLENOID

$50.99

$

Usually ships in 3-6 days

0

8

Toro 117-5342

CABLE-BATTERY, POSITIVE

$42.99

$

Usually ships in 3-6 days

0

9

Toro 117-7240

CABLE-BATTERY, NEGATIVE

$26.99

$

Usually ships in 3-6 days

0

10

Toro 117-7313-01

STRAP-BATTERY

$12.99

$

Usually ships in 3-6 days

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 121-3015

HARNESS-WIRE

$

$

Not available

12:1

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

12:2

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

12:3

Toro 100-4918

DIODE

$25.99

$

Usually ships in 3-6 days

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

15

Toro 92-6989

WIRE-21 INCH

$29.99

$

Usually ships in 3-6 days

0

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 10

0

18

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

22

Toro 120-2244

HOURMETER

$76.99

$

In Stock, Qty 5

0

23

Toro 99-7408

SWITCH-REVERSE

$31.99

$

In Stock, Qty 8

0

24

Toro 117-1283-03

TRAY-BATTERY

$26.99

$

Usually ships in 3-6 days

0

25

Toro 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

26

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

27

Toro 33104-016

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0
