74882 (MX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 314000001 - 314999999) (2014) LH HYDRO TRANSMISSION ASSEMBLY NO. 127-3381 Parts Diagram

54" Titan Zero-Turn Mower

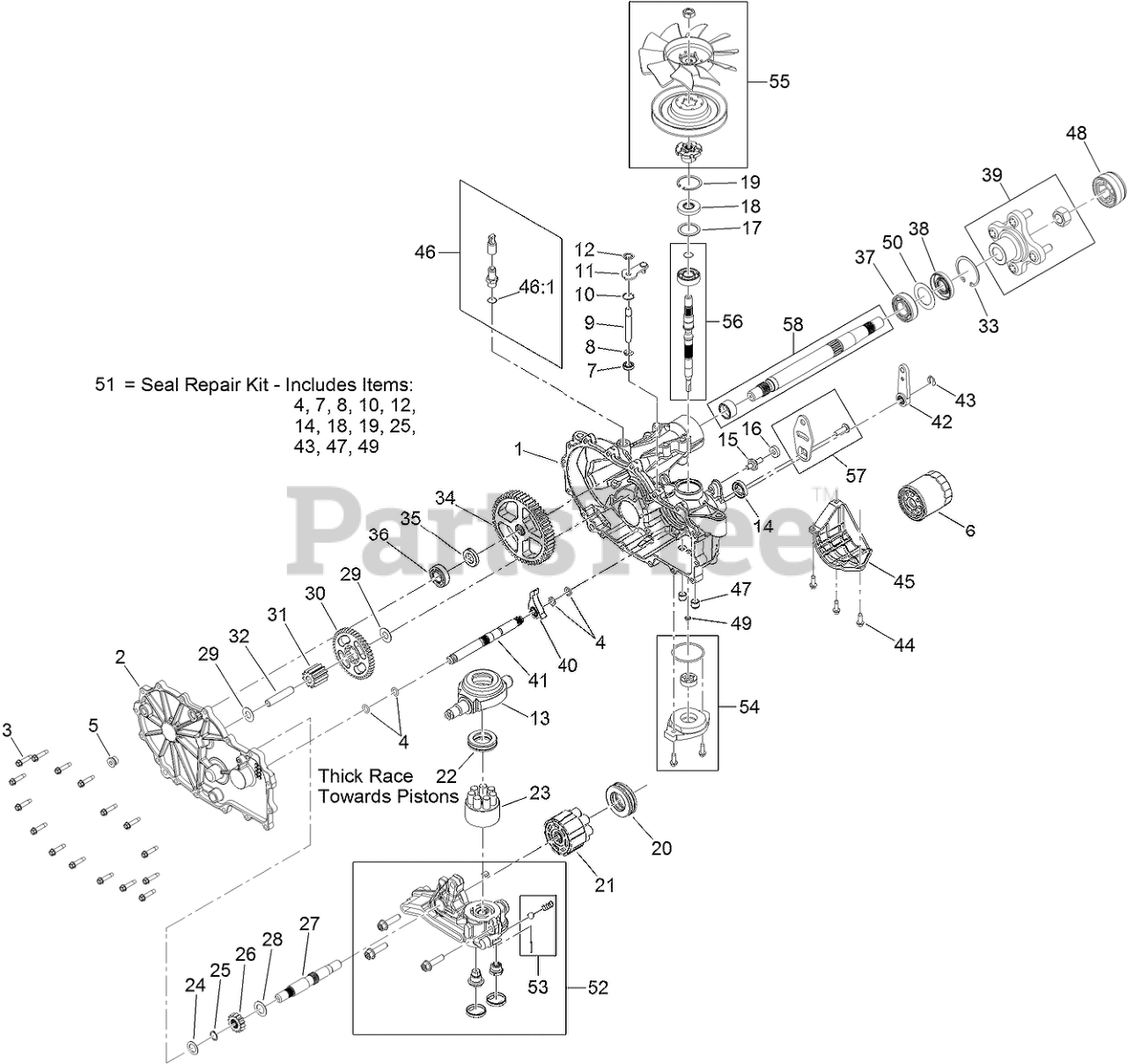

LH HYDRO TRANSMISSION ASSEMBLY NO. 127-3381 Parts Diagram

  • Title

1

Toro 114-8471

LH MAIN HOUSING KIT

$

$

Not available

2

Toro 114-8472

LH SIDE COVER KIT

$

$

Not available

3

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 114-1678

O-RING

$6.49

$

Usually ships in 3-6 days

0

5

Toro 104-2189

PLUG-THREAD, STRAIGHT

$28.99

$

In Stock, only 2 left!

0

6

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$29.99

$

In Stock, Qty 10

0

7

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$8.49

$

In Stock, only 2 left!

0

8

Toro 106-8677

RING-RETAINING, EXTERNAL

$9.49

$

In Stock, only 2 left!

0

9

Toro 114-1685

ROD-BYPASS

$38.99

$

Usually ships in 3-6 days

0

10

Toro 106-8679

RING-RETAINING, INTERNAL

$10.99

$

Usually ships in 3-6 days

0

11

Toro 107-2490

ARM-BYPASS

$61.99

$

Usually ships in 3-6 days

0

12

Toro 106-8681

RING-RETAINING, EXTERNAL

$9.49

$

Usually ships in 3-6 days

0

13

Toro 104-5304

SWASHPLATE-TRUNNION

$206.99

$

Usually ships in 3-6 days

0

14

Toro 104-5313

SEAL-LIP

$28.99

$

In Stock, only 3 left!

0

15

Toro 104-2116

STUD

$41.99

$

Usually ships in 3-6 days

0

16

Toro 112-9853

PUCK-FRICTION

$8.99

$

In Stock, only 2 left!

0

17

Toro 104-5308

SPACER

$9.49

$

In Stock, only 2 left!

0

18

Toro 104-5310

SEAL-LIP

$42.99

$

In Stock, only 2 left!

0

19

Toro 104-5309

RING-RETAINING

$13.99

$

In Stock, only 3 left!

0

20

Toro 112-4154

BEARING-THRUST

$113.99

$

Usually ships in 3-6 days

0

21

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$293.99

$

Usually ships in 3-6 days

0

22

Toro 94-6922

BEARING-THRUST

$68.99

$

In Stock, only 2 left!

0

23

Toro 110-8561

PUMP BLOCK ASM

$419.99

$

Usually ships in 3-6 days

0

24

Toro 104-5339

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

25

Toro 104-5340

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

26

Toro 131-0905

GEAR-14T

$109.99

$

Usually ships in 3-6 days

0

27

Toro 114-1691

SHAFT-MOTOR

$200.99

$

Usually ships in 3-6 days

0

28

Toro 104-5360

WASHER

$8.99

$

Usually ships in 3-6 days

0

29

Toro 94-1933

WASHER

$6.99

$

Usually ships in 3-6 days

0

30

Toro 114-1692

GEAR-45T

$64.99

$

Usually ships in 3-6 days

0

31

Toro 120-7974

GEAR-11T

$79.99

$

Usually ships in 3-6 days

0

32

Toro 104-5329

PIN-JACKSHAFT

$119.99

$

Usually ships in 3-6 days

0

33

Toro 104-2169

RING-RETAINING

$20.99

$

Usually ships in 3-6 days

0

34

Toro 114-1694

GEAR-54T

$156.99

$

Usually ships in 3-6 days

0

35

Toro 120-7975

SPACER

$6.99

$

Usually ships in 3-6 days

0

36

Toro 126-1929

BEARING-BALL
(Superseded to 126-0789)

$18.99

$

Usually ships in 3-6 days

0

37

Toro 120-7976

BEARING-BALL
(Superseded to 130-8477)

$27.99

$

Usually ships in 3-6 days

0

38

Toro 104-2144

SEAL

$58.99

$

In Stock, only 2 left!

0

39

Toro 109-5939

HUB KIT

$118.99

$

In Stock, only 2 left!

0

40

Toro 114-1697

PAWL-BRAKE

$18.99

$

Usually ships in 3-6 days

0

41

Toro 131-0907

SHAFT-BRAKE
(Superseded to 130-8479)

$142.99

$

Usually ships in 3-6 days

0

42

Toro 125-0021

HANDLE-BRAKE

$16.99

$

Usually ships in 3-6 days

0

43

Toro 131-0906

RING-RETAINING, EXT

$6.99

$

Usually ships in 3-6 days

0

44

Toro 104-2120

SCREW

$8.49

$

In Stock, only 1 left!

0

45

Toro 120-7979

GUARD-FILTER, LH

$41.99

$

In Stock, only 1 left!

0

46

Toro 109-3278

ADAPTER-STRAIGHT

$143.99

$

Usually ships in 3-6 days

0

46:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

47

Toro 114-8455

TUBE-CONNECTING

$14.99

$

In Stock, only 2 left!

0

48

Toro 115-5057

COVER-NUT, AXLE

$19.99

$

Usually ships in 3-6 days

0

49

Toro 131-0908

SEAL-GEROTOR

$

$

Not available

50

Toro 121-5745

SPACER

$11.99

$

Usually ships in 3-6 days

0

51

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

$112.99

$

In Stock, only 2 left!

0

52

Toro 131-0909

LH CENTER SECTION CHARGE KIT

$457.99

$

Usually ships in 3-6 days

0

53

Toro 114-8464

CHARGE RELIEF KIT

$26.99

$

Usually ships in 3-6 days

0

54

Toro 114-8465

CHARGE KIT

$133.99

$

Usually ships in 3-6 days

0

55

Toro 125-0059

FAN AND PULLEY KIT
(Superseded to 135-7347)

$113.99

$

In Stock, only 2 left!

0

56

Toro 117-5361

INPUT SHAFT KIT
(Superseded to 121-3248)

$318.99

$

Usually ships in 3-6 days

0

57

Toro 117-5362

CONTROL ARM KIT

$31.99

$

In Stock, only 2 left!

0

58

Toro 114-8470

AXLE SHAFT KIT

$312.99

$

Usually ships in 3-6 days

0
