74883 (MX 6000) - Toro 60" Titan Zero-Turn Mower (SN: 315000001 - 315999999) (2015) Brake Link Assembly Parts Diagram

60" Titan Zero-Turn Mower

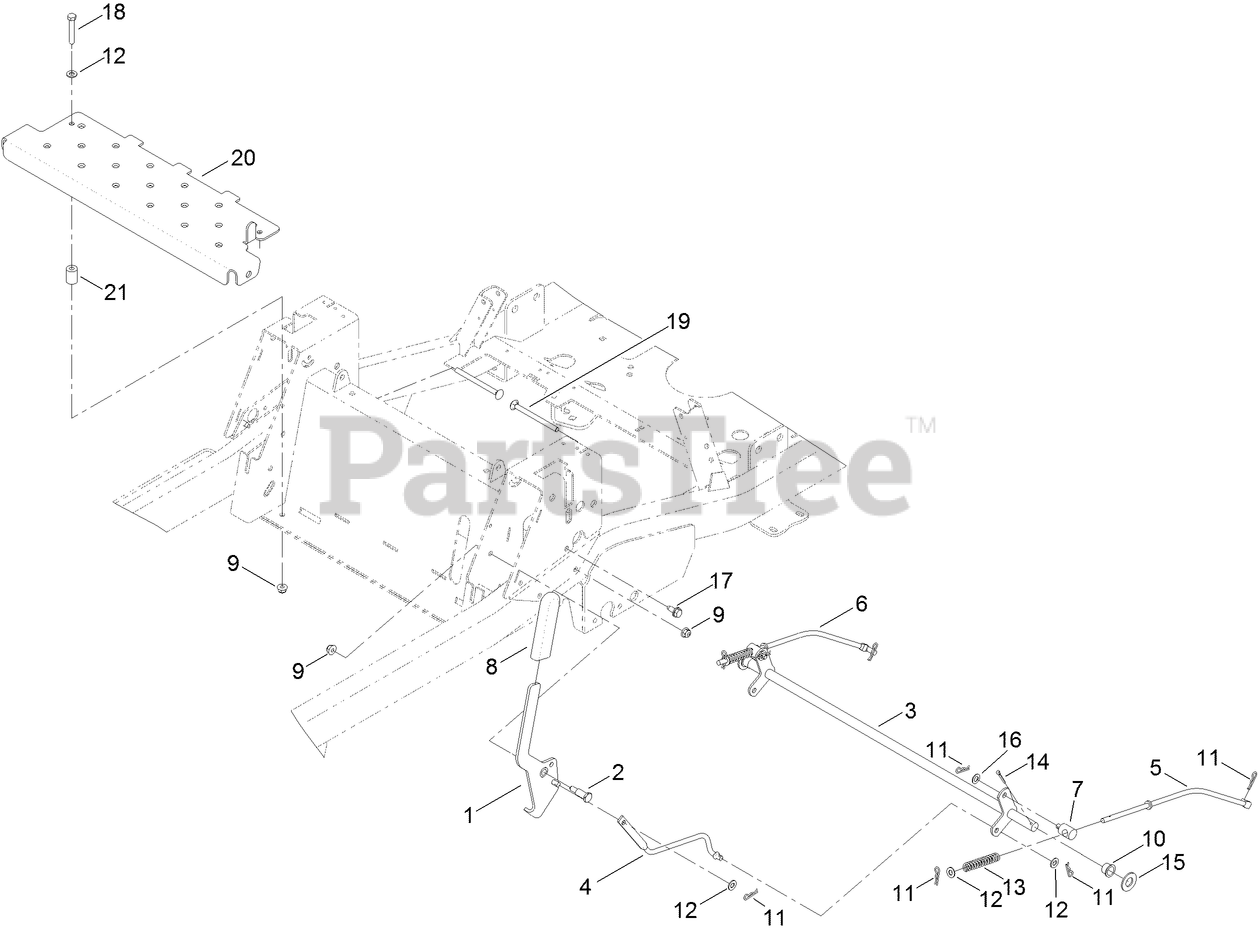

Brake Link Assembly Parts Diagram

  • Title

1

Toro 119-3460

HANDLE-BRAKE

$88.99

$

In Stock, only 1 left!

0

2

Toro 63-2650

SCREW-SHOULDER

$8.49

$

In Stock, only 2 left!

0

3

Toro 115-5071-03

BRAKE-BELLCRANK

$136.99

$

Usually ships in 3-6 days

0

4

Toro 115-5074

LINK-BRAKE

$39.99

$

In Stock, only 2 left!

0

5

Toro 117-7322

ROD-BRAKE, LH

$

$

Not available

6

Toro 117-7323

ROD-BRAKE, RH

$

$

Not available

7

Toro 115-9681

FITTING-ROD

$15.99

$

In Stock, only 1 left!

0

8

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 11

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 256-292

BUSHING-FLANGE, NI

$3.49

$

In Stock, only 1 left!

0

11

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.99

$

In Stock, Qty 17

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 106-9758

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

20

Toro 127-3435-01

PLATE-SUPPORT, FLOOR PAN

$75.99

$

Usually ships in 3-6 days

0

21

Toro 119-0718

SPACER

$

$

Currently unavailable
