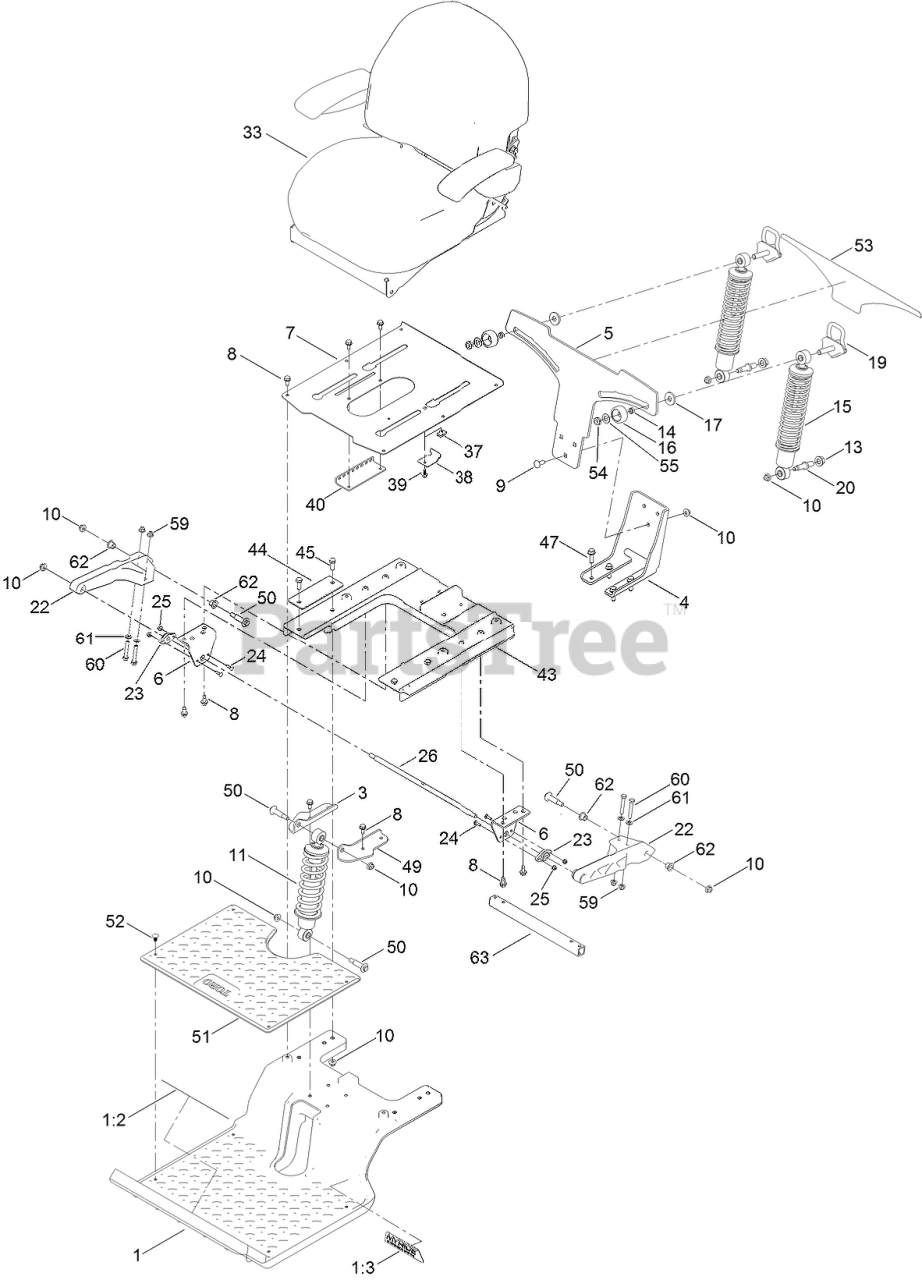

74886 (XS 4850) - Toro 48" TimeCutter HD Zero-Turn Mower (SN: 400000000 - 999999999) Seat Assembly Parts Diagram

48" TimeCutter HD Zero-Turn Mower

Seat Assembly Parts Diagram

  • Title

1

Toro 136-9191

SUBFRAME-FRONT

$325.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-0869

DECAL-DANGER

$9.49

$

Usually ships in 3-6 days

0

1:3

Toro 136-7470

DECAL

$6.49

$

Usually ships in 3-6 days

0

3

Toro 133-9319-03

BRACKET-SHOCK MOUNT, UPPER (RH)

$15.99

$

Usually ships in 3-6 days

0

4

Toro 133-4442-03

BRACKET-MOUNT, LOWER

$69.99

$

Usually ships in 3-6 days

0

5

Toro 133-4462-03

BRACKET-MOUNTING, SHOCK

$76.99

$

Usually ships in 3-6 days

0

6

Toro 137-1967-03

BRACKET-MOUNT, SWING ARM

$8.99

$

Usually ships in 3-6 days

0

7

Toro 133-7029-03

PAN-SEAT

$66.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 137-3064

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

10

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 133-5192

SHOCK/SPRING ASM

$127.99

$

Usually ships in 3-6 days

0

13

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 133-5109

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

15

Toro 133-5193

SHOCK/SPRING ASM

$125.99

$

Usually ships in 3-6 days

0

16

Toro 136-5636

KNOB-LOCK, CAM

$12.99

$

Usually ships in 3-6 days

0

17

Toro 131-4699

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

19

Toro 133-5105

CAM LOCK ASM

$36.99

$

Usually ships in 3-6 days

0

20

Toro 133-4401

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

22

Toro 136-8979

TRAILING ARM

$33.99

$

Usually ships in 3-6 days

0

23

Toro 127-0146

BEARING-FLANGE

$7.99

$

Usually ships in 3-6 days

0

24

Toro 139-2629

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

25

Toro 138-0719

NUT-HF

$1.49

$

In Stock, Qty 8

0

26

Toro 137-1968

ROD-PIVOT

$27.99

$

Usually ships in 3-6 days

0

33

Toro 137-5007

SEAT ASM

$651.99

$

Usually ships in 3-6 days

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 138-7214

BRACKET-STOP, SEAT

$2.99

$

Usually ships in 3-6 days

0

39

Toro 137-3111

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

40

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

43

Toro 137-7031

SUBFRAME-REAR

$94.99

$

Usually ships in 3-6 days

0

44

Toro 133-7089-03

PLATE-BACKER

$7.99

$

Usually ships in 3-6 days

0

45

Toro 139-2600

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

47

Toro 139-2576

SCREW-HWH, THD ROLL

$2.99

$

Usually ships in 3-6 days

0

49

Toro 133-9318-03

BRACKET-SHOCK MOUNT, UPPER (LH)

$15.99

$

Usually ships in 3-6 days

0

50

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 20+

0

51

Toro 133-5190

FLOORMAT

$76.99

$

Usually ships in 3-6 days

0

52

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 14

0

53

Toro 133-5198

DECAL-ADJUSTMENT, RIDE

$21.99

$

Usually ships in 3-6 days

0

54

Toro 139-2617

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

55

Toro 3-6803

WASHER-ADJUSTING

$8.49

$

Usually ships in 3-6 days

0

59

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

60

Toro 120-9686

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

61

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

62

Toro 125-5239

BUSHING-FLANGE

$7.99

$

In Stock, Qty 6

0

63

Toro 137-1969-03

TUBE-ARM, TRAILING

$23.99

$

Usually ships in 3-6 days

0
