74892 (MX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 315001301 - 315999999) (2015) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

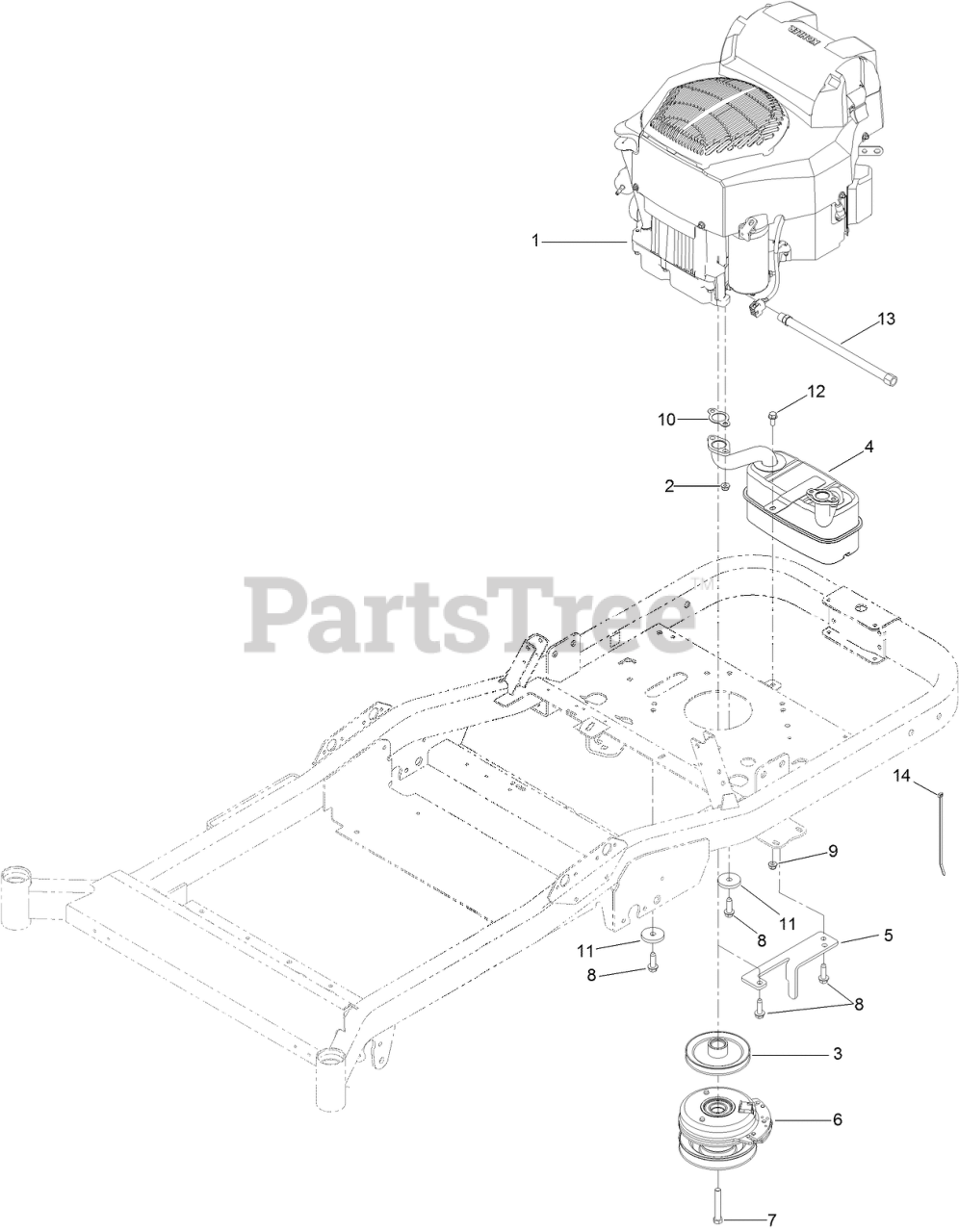

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, ZT730

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, ZT730

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 131-8660

NUT-LOCKING, EXHAUST

$6.49

$

Usually ships in 3-6 days

0

3

Toro 125-5576

PULLEY-ENGINE

$126.99

$

Usually ships in 3-6 days

0

4

Toro 127-0084

MUFFLER

$188.99

$

Usually ships in 3-6 days

0

5

Toro 117-1269-03

BRACKET-STOP, PTO

$36.99

$

Usually ships in 3-6 days

0

6

Toro 127-3410

CLUTCH-PTO

$410.99

$

In Stock, only 2 left!

0

7

Toro 3212-11

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

8

Toro 32144-109

SCREW-TAPTITE

$5.49

$

In Stock, only 3 left!

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

11

Toro 110-9981

WASHER-PLAIN

$15.99

$

In Stock, Qty 20+

0

12

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

13

Toro 117-1261

HOSE-DRAIN, OIL

$31.99

$

In Stock, only 2 left!

0

14

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
