74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CRANKCASE ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

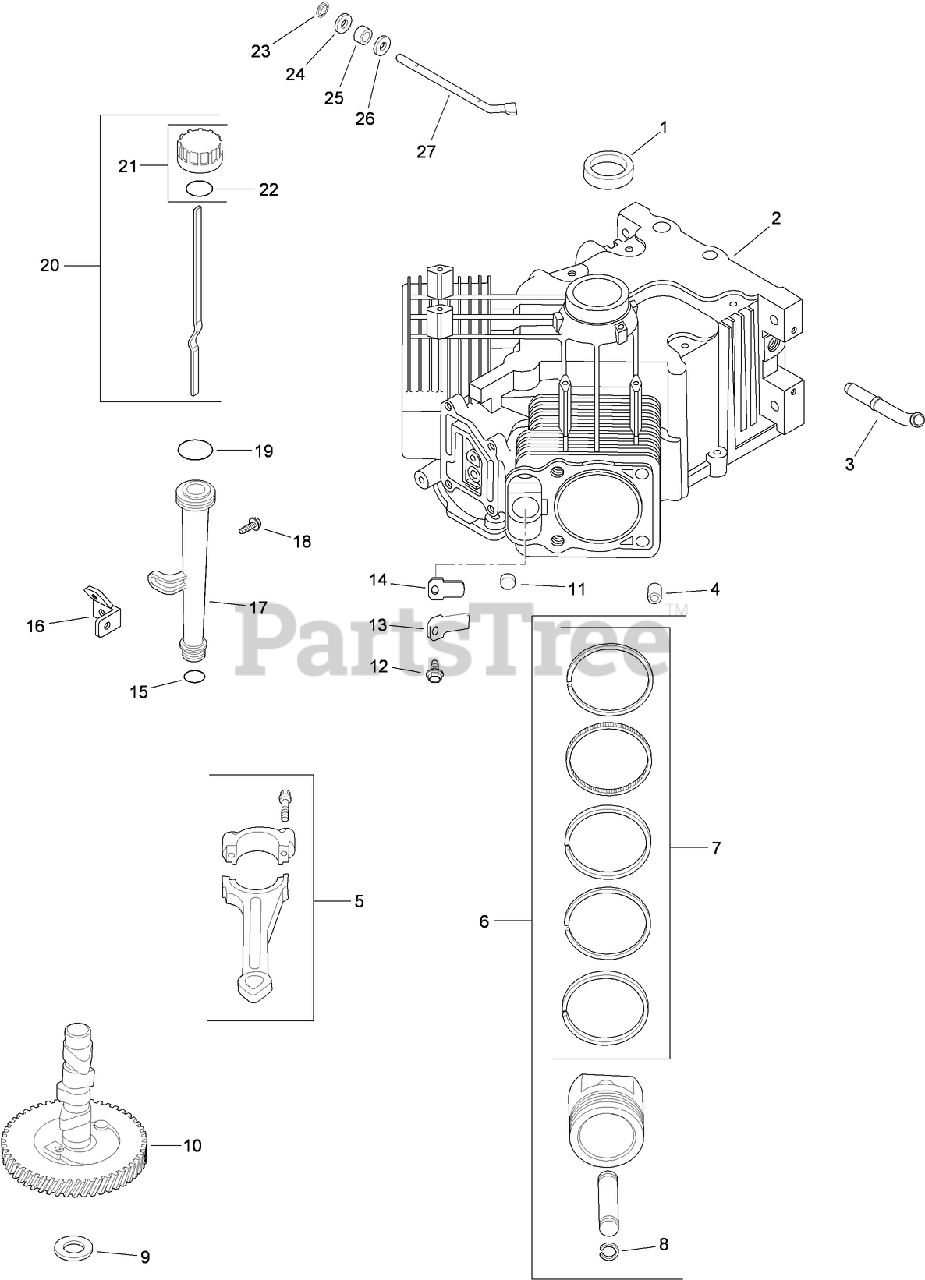

CRANKCASE ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 24 032 19-S

SEAL-OIL (HELIX LIP)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

2

Kohler 24 782 14

CV23-674 MINI BLOCK

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler 24 294 13-S

Fitting

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN-LOCATING

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 16

0

5

Kohler 24 067 24-S

ROD-CONNECTING (STD)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$75.99

$

In Stock, Qty 10

0

5

Kohler 24 067 25-S

ROD-CONNECTING (.25)
(Superseded to 25 067 05-S)

Note: Obtain parts from www.kohlerplus.com

$75.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 34-S

PISTON W/RING SET (STD, 80mm) (INCLUDES 7, 8)
(Superseded to 24 874 54-S)

Note: Obtain parts from www.kohlerplus.com

$318.99

$

Usually ships in 2-5 days

0

6

Kohler 24 874 35-S

PISTON W/RING SET (.08)
(Superseded to 24 874 55-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 24 874 36-S

PISTON W/RING SET (.25)
(Superseded to 24 874 56-S)

Note: Obtain parts from www.kohlerplus.com

$367.99

$

Usually ships in 2-5 days

0

6

Kohler 24 874 37-S

PISTON W/RING SET (.50)
(Superseded to 24 874 45-S)

Note: Obtain parts from www.kohlerplus.com

$318.99

$

Usually ships in 2-5 days

0

7

Kohler 24 108 18-S

PISTON RING SET (STD)
(Superseded to 24 108 19-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 24 108 19-S

PISTON RING SET (.08)
(Superseded to 24 874 43-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 24 108 20-S

PISTON RING SET (.25)
(Superseded to 24 874 44-S)

Note: Obtain parts from www.kohlerplus.com

$367.99

$

Usually ships in 2-5 days

0

7

Kohler 24 108 21-S

PISTON RING SET (.50)
(Superseded to 24 108 29-S)

Note: Obtain parts from www.kohlerplus.com

$186.99

$

Usually ships in 2-5 days

0

8

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 9

0

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

9

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

9

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

Camshaft Kit
(Superseded to 24 012 23-S)

Note: Obtain parts from www.kohlerplus.com

$138.99

$

Usually ships in 2-5 days

0

11

Kohler 52 139 09-S

PLUG-CUP

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 4 left!

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

13

Kohler 24 018 04-S

RETAINER-REED, BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

14

Kohler 24 402 05-S

Reed-Breather
(Superseded to 24 402 07-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

15

Kohler 12 153 01-S

O-RING (LOWER OIL FILL TUBE)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 8

0

16

Kohler 24 126 19-S

BRACKET-TUBE, OIL FILL
(Superseded to 24 126 246-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

17

Kohler 12 123 35-S

OIL FILL TUBE ASM
(Superseded to 25 123 07-S)

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 2 left!

0

18

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 1 left!

0

19

Kohler 12 153 02-S

O-RING (UPPER OIL FILL TUBE)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 13

0

20

Kohler 24 038 04-S

Dipstick ASM (INCLUDES 21, 22)

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, only 2 left!

0

21

Kohler 24 755 46-S

OIL FILL CAP KIT (YELLOW)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

22

Kohler 25 153 02-S

O-RING (DIPSTICK)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

23

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

24

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

25

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 3 left!

0

26

Kohler 24 468 15-S

WASHER-FLAT (11/32) (BOTTOM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

27

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$49.99

$

In Stock, only 1 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 2 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Not illustrated

$3.99

$

In Stock, only 2 left!

0

Kohler 24 755 108-S

Gasket Set
(Superseded to 24 755 393-S)

Note: Obtain parts from www.kohlerplus.com

$221.99

$

Usually ships in 2-5 days

0

Kohler 24 755 108-S

Gasket Set
(Superseded to 24 755 393-S)

Note: Not illustrated

$221.99

$

Usually ships in 2-5 days

0
