74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) FUEL SYSTEM ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

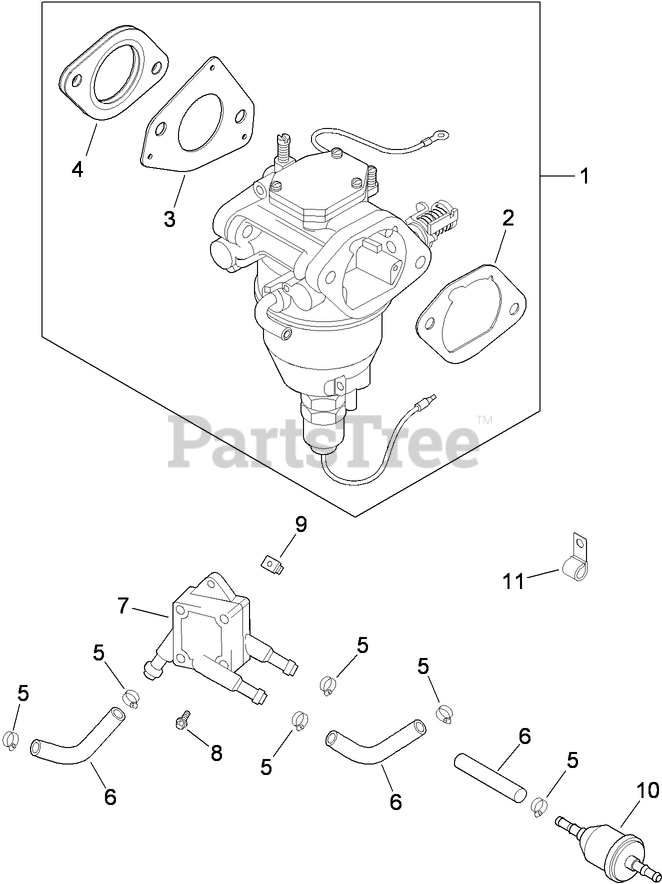

FUEL SYSTEM ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 24 853 97-S

CARBURETOR KIT W/GASKETS (INCLUDES 2-4)
(Superseded to 24 853 315-S)

Note: Obtain parts from www.kohlerplus.com

$425.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

3

Kohler 24 041 52-S

GASKET-CARBURETOR
(Superseded to 24 041 91-S)

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 5

0

4

Kohler 24 041 15-S

Gasket-carburetor

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 3 left!

0

5

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 12

0

6

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, Qty 20+

0

7

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 20+

0

8

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 25 100 37-S

NUT-PLASTIC (BLACK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

10

Kohler 24 050 13-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, Qty 20+

0

11

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 2 left!

0

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Obtain parts from www.kohlerplus.com

$144.99

$

In Stock, only 1 left!

0

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Not illustrated

$144.99

$

In Stock, only 1 left!

0

Kohler 24 757 44-S

FLOAT REPAIR KIT

Note: Not illustrated

$116.99

$

In Stock, only 1 left!

0

Kohler 24 757 44-S

FLOAT REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$116.99

$

In Stock, only 1 left!

0

Kohler 24 757 45-S

SOLENOID VALVE REPAIR KIT

Note: Not illustrated

$306.99

$

Usually ships in 2-5 days

0

Kohler 24 757 45-S

SOLENOID VALVE REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$306.99

$

Usually ships in 2-5 days

0

Kohler 24 757 46-S

Overhaul Kit w/Gaskets

Note: Obtain parts from www.kohlerplus.com

$170.99

$

In Stock, Qty 6

0

Kohler 24 757 46-S

Overhaul Kit w/Gaskets

Note: Not illustrated

$170.99

$

In Stock, Qty 6

0
