74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) IGNITION AND ELECTRICAL ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

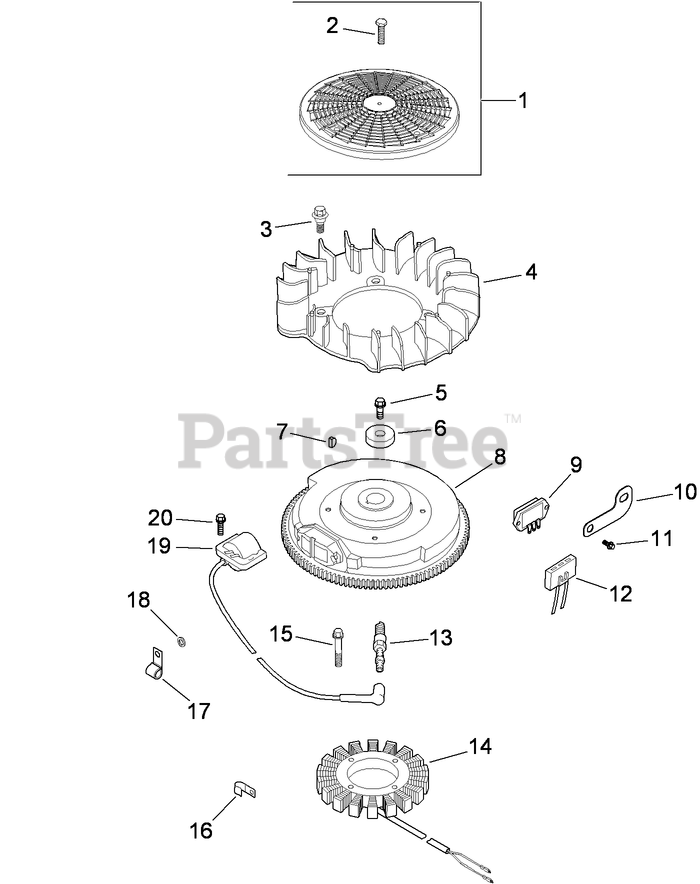

IGNITION AND ELECTRICAL ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 54 755 15-S

GRASS SCREEN KIT (INCLUDES 2)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

Usually ships in 2-5 days

0

2

Kohler 25 086 117-S

SCREW-FLANGE, SEMS (M4X.7X25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 157 12-S

FAN

Note: Obtain parts from www.kohlerplus.com

$22.99

$

In Stock, only 3 left!

0

5

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 12 468 03-S

WASHER-FLAT (13/32)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

7

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

8

Kohler 24 025 55-S

Flywheel ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 41 403 10-S

RECTIFIER/REGULATOR
(Superseded to 25 403 37-S)

Note: Obtain parts from www.kohlerplus.com

$105.99

$

In Stock, Qty 6

0

10

Kohler 24 126 137-S

Bracket-Strap, Ground
(Superseded to 24 518 12-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 1 left!

0

11

Kohler 25 086 157-S

SCREW-HEX FLANGE, HI-LO

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

12

Kohler 25 155 41-S

CONNECTOR (3 CONTACT)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, Qty 11

0

13

Kohler 25 132 14-S

SPARK PLUG (R F I)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

14

Kohler 237878-S

15 AMP STATOR KIT (INCLUDES 25 452 01-S)

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 15

0

15

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

16

Kohler 235173-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

17

Kohler 210281-S

Clip

Note: Obtain parts from www.kohlerplus.com

$7.49

$

Usually ships in 2-5 days

0

18

Kohler X-25-63-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

19

Kohler 24 584 45-S

MODULE-IGNITION (C D I FIXED)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

20

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 17

0

Kohler 24 176 137-S

WIRING HARNESS ASM
(Superseded to 24 176 178-S)

Note: Obtain parts from www.kohlerplus.com

$36.99

$

Usually ships in 2-5 days

0

Kohler 24 176 137-S

WIRING HARNESS ASM
(Superseded to 24 176 178-S)

Note: Not illustrated

$36.99

$

Usually ships in 2-5 days

0

Kohler 25 454 07-S

Tie-Wire

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 454 07-S

Tie-Wire

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

Usually ships in 2-5 days

0
